| DeltaFlux Penetrant Inspection Cabin | PT-DF-PIC |
|
Request Pricing | ||

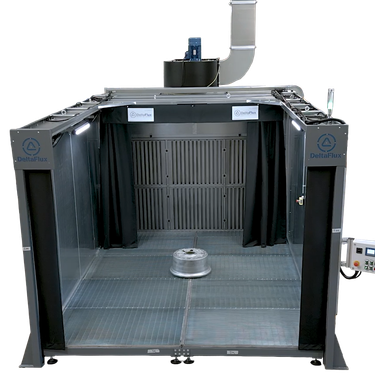

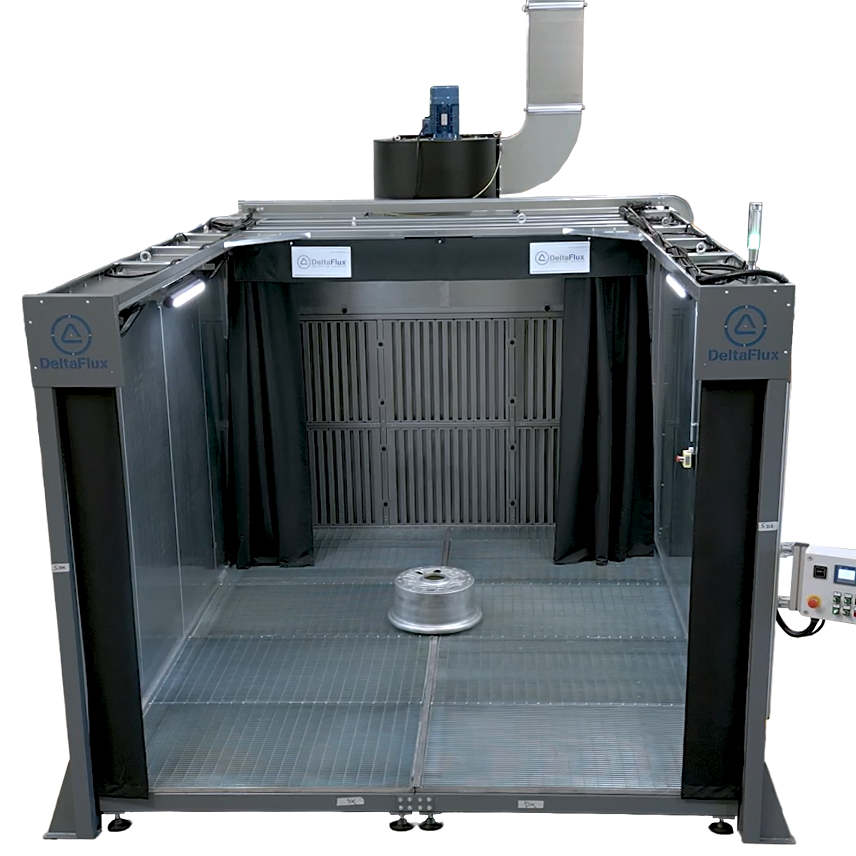

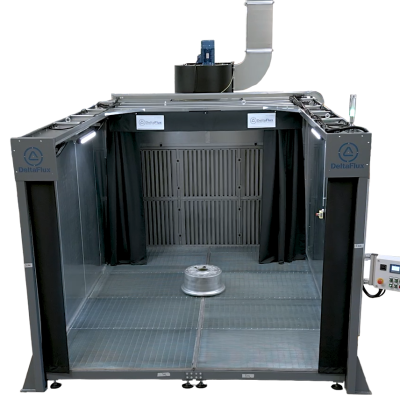

The DeltaFlux Penetrant Inspection Cabin is a suction cabin for penetrant testing with dry aspiration, designed for manual PT inspection of a wide range of test pieces. It combines an enclosed dark-room work area, a multi-stage air filtration system, and integrated white and UV illumination in a single self-supporting cabinet built to major PT standards including ASTM E1417, ASTM E1444, ISO 3452, and NADCAP. The cabin can be configured to customer specifications for dimensions, materials, ventilation, and process automation.
Every DeltaFlux Penetrant Inspection Cabin is built to customer specification — dimensions, materials, illumination, aspiration, and automation are all configurable. Tell us about your parts, your inspection volume, and your facility requirements, and we'll build a system around them.

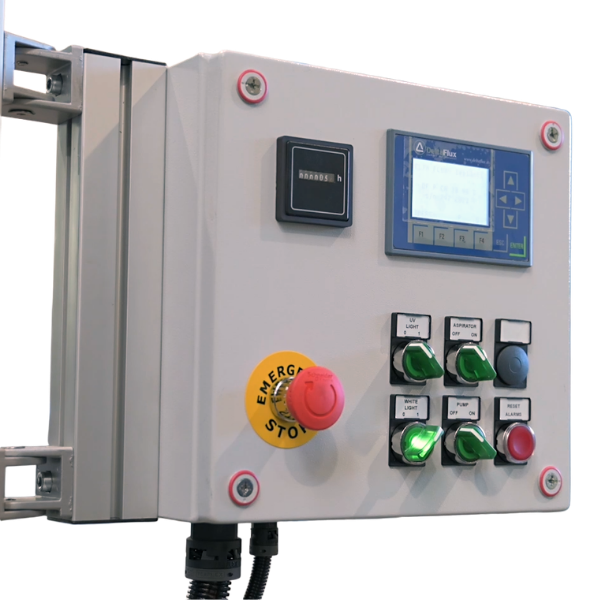

Control PanelIncluding:
|
 |
Control Input BoardIncluding:
|
 |

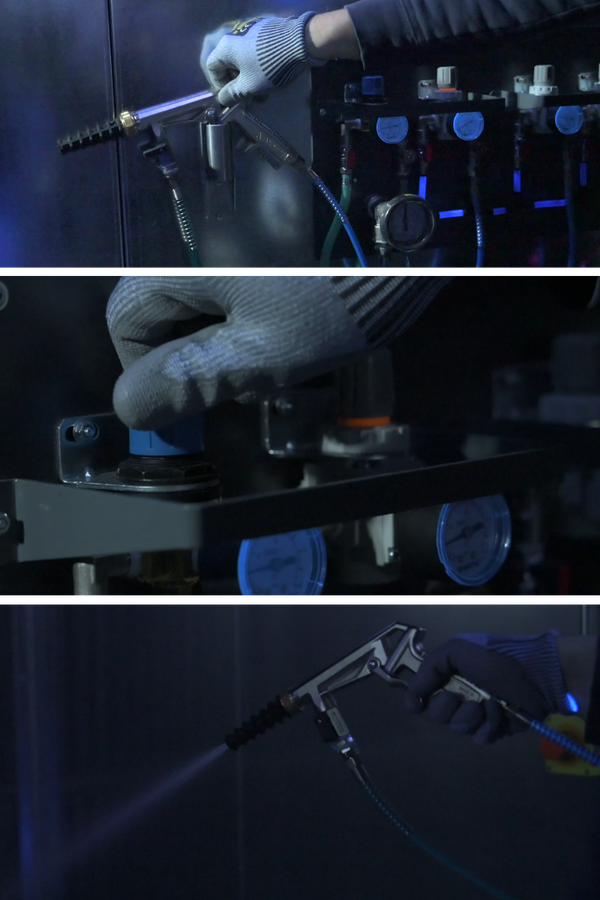

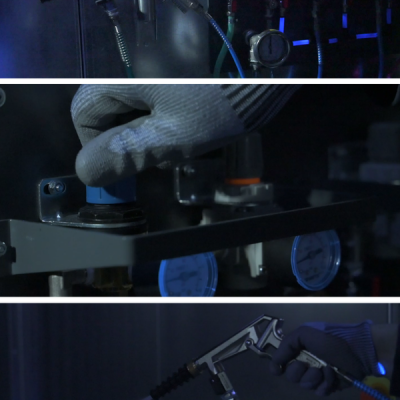

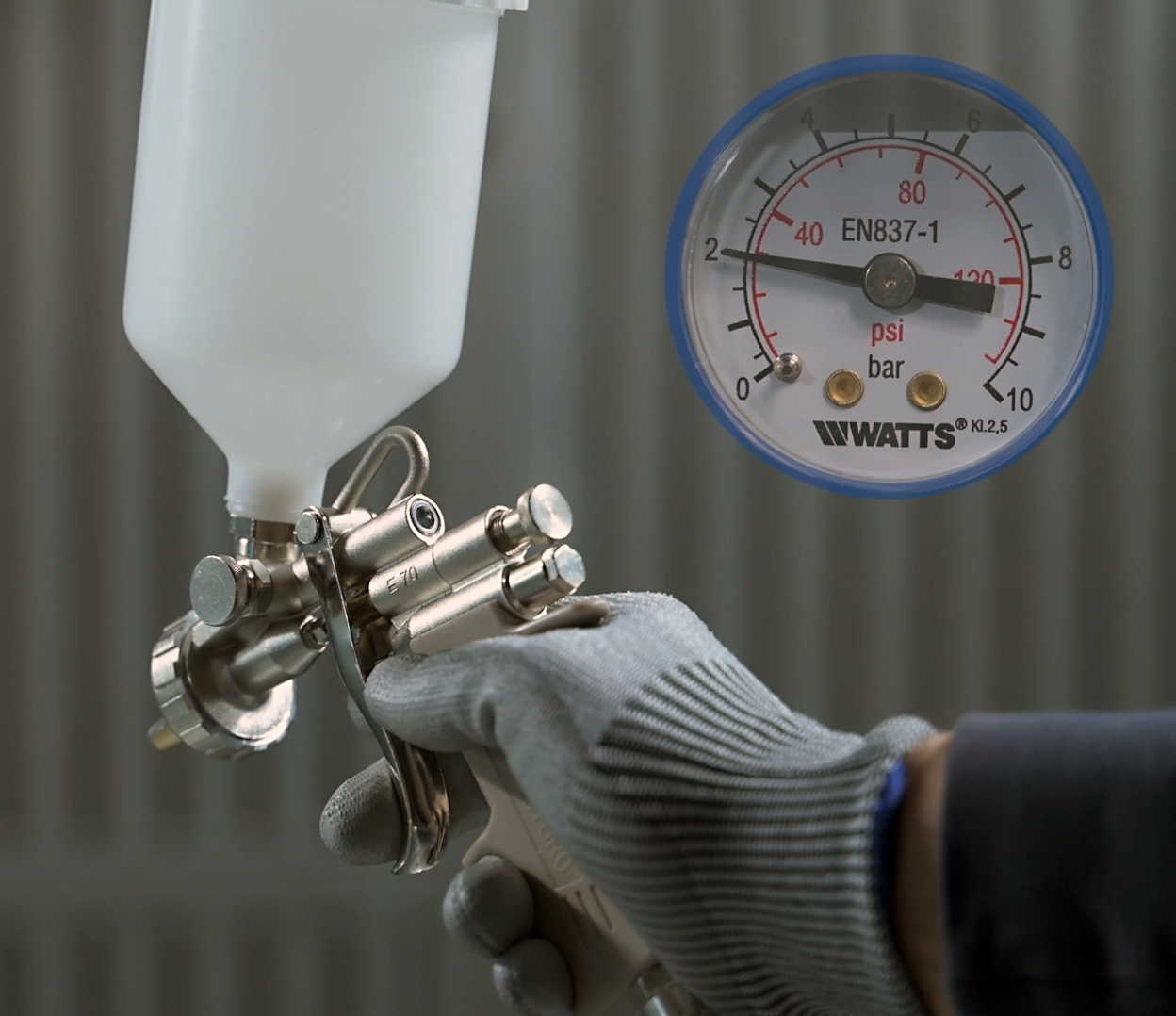

Wall mounted utilities include manually operated, regulated air-water gun, spray gun, and air gun for improved UV inspection
Manual liquid penetrant inspection (PT) of ferrous and non-ferrous parts requiring dedicated dark-room conditions, penetrant containment, and code-compliant white and UV lighting. Typical uses include:
| DeltaFlux Penetrant Inspection Cabin — Technical Specifications | |
| Model: | DF P CA 30.40 S (base configuration; customer-specified sizes available) |
| Overall Dimensions: | 157" x 177" x 98" (4.000 x 4.500 x 2.500 mm) — L x W x H |
| Internal Working Area: | 118" x 157" x 78" (3.000 x 4.000 x 2.000 mm) — L x W x H |
| Loading Capacity: | 440 lb (200 kg), uniformly distributed on grid |
| Working Surface Height: | 11"–13" (300–350 mm) from ground; galvanized steel grid |
| Main Frame: | Galvanized steel, modular aluminum; stainless steel available on request |
| Covering Panels: | Powder-painted steel |
| Illumination: | 2 white lamps + 4 UV lamps |

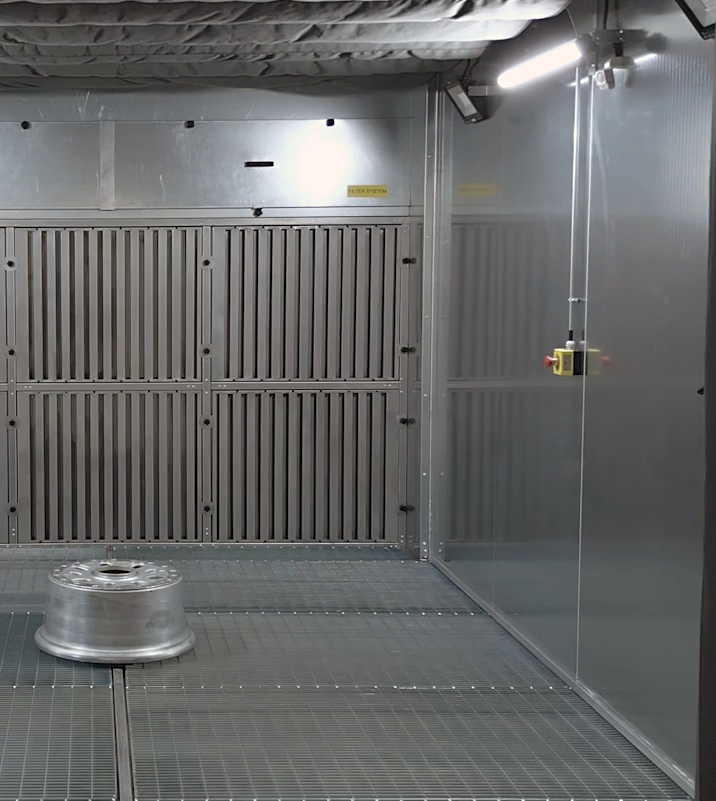

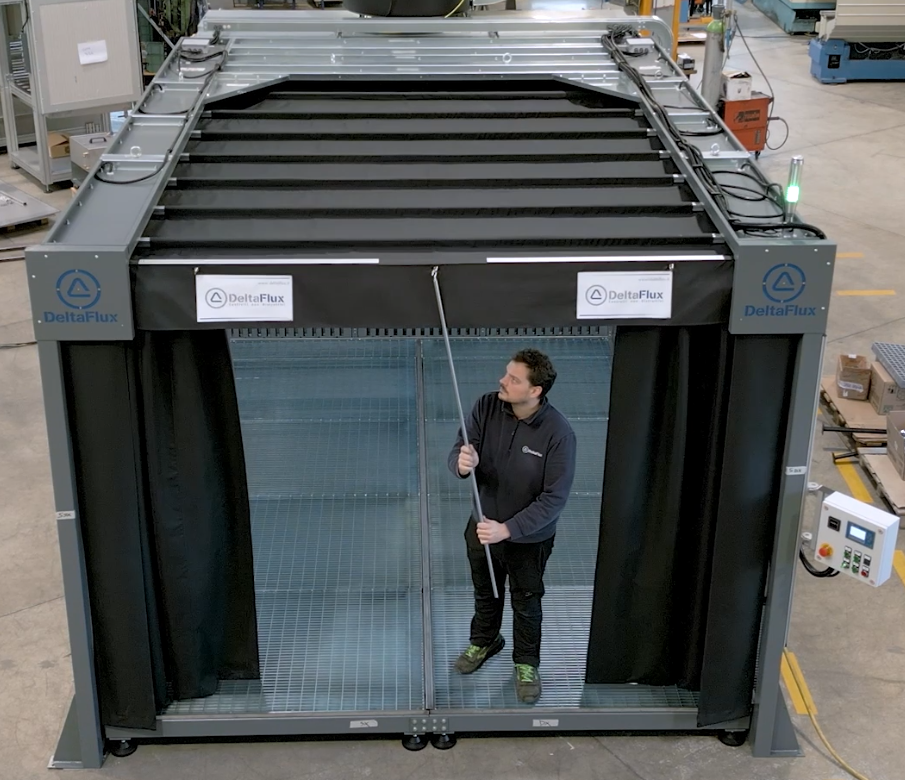

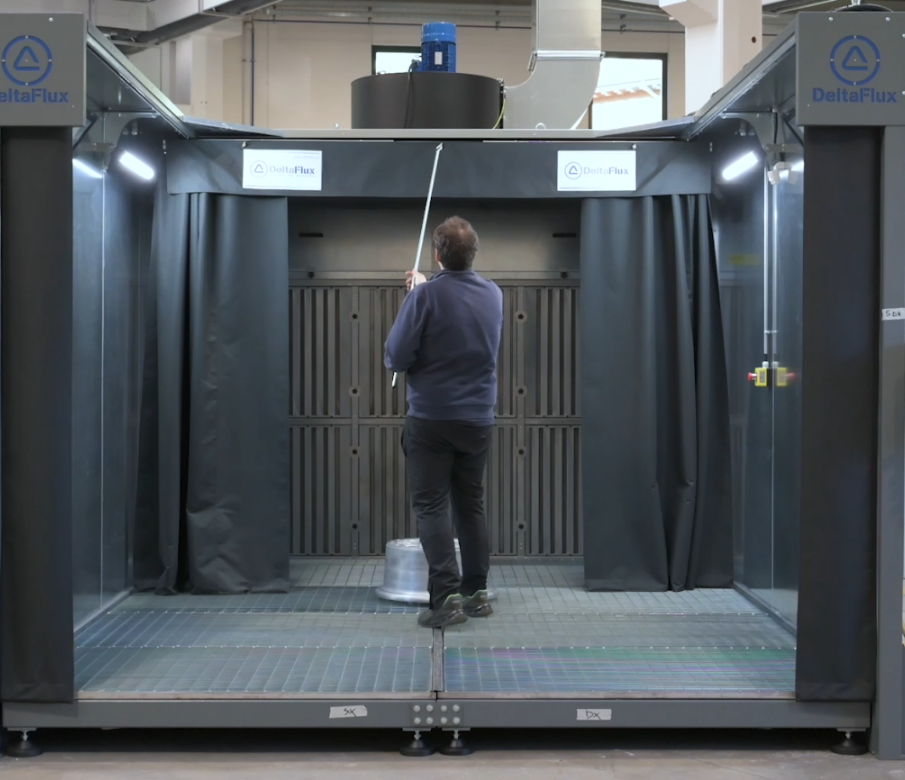

| Dark-Room: | Self-supporting panels (ISOPAN or galvanized/painted steel) with frontal sliding curtains and retractable roof |
| Air Suction & Filtration: | Frontal-flow aspirator; multi-stage filtration (AISI 304 stainless cells, glass fibre, G4 polyester, F7 polyester final filter); activated carbon and ATEX-certified aspirator available as options |

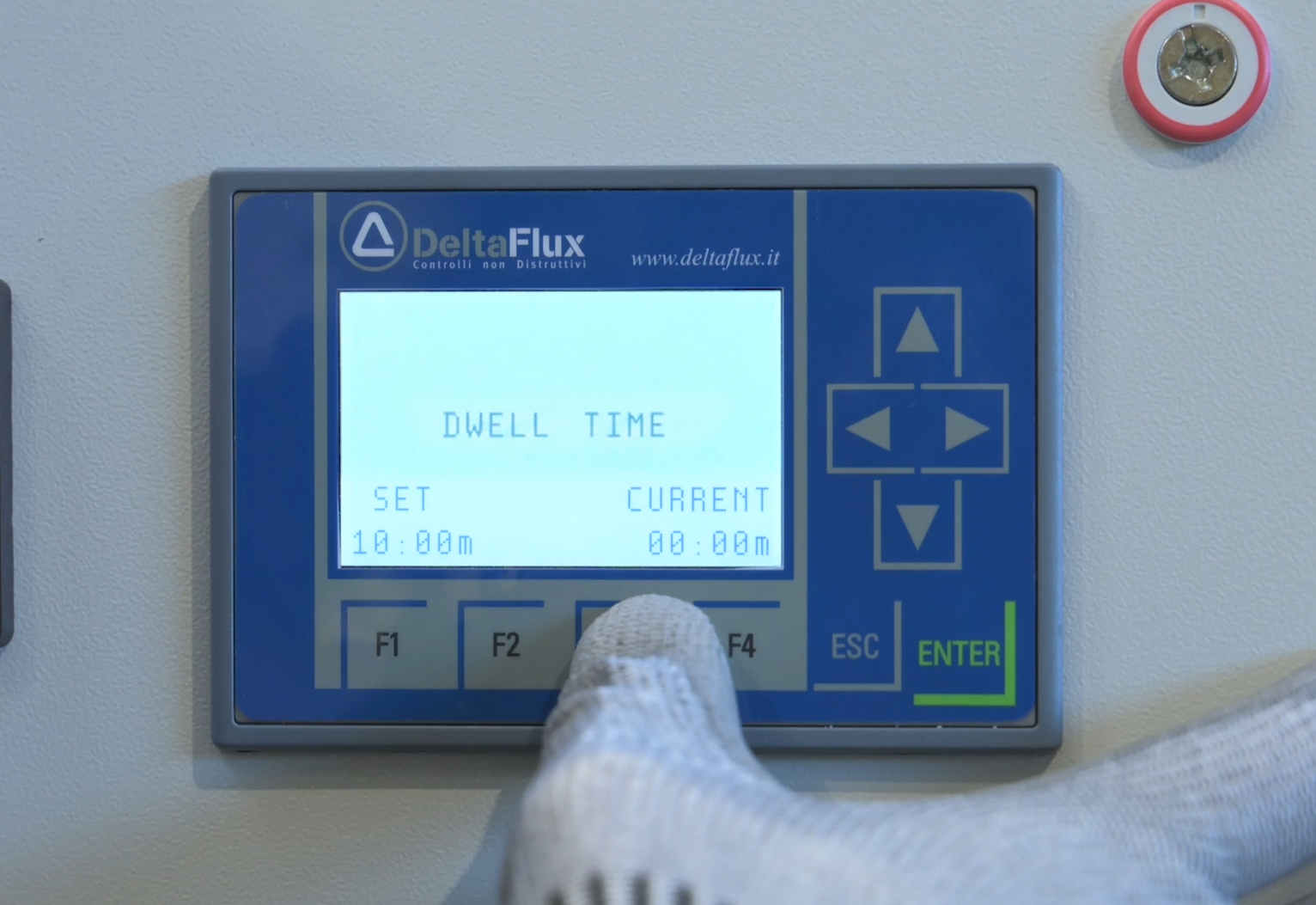

| Pieces & System Handling: | Manual (with controllable dwell time) |
| On-Board Tools: | Command insertion button, emergency stop, emergency reset, 230V auxiliary socket |
| Pneumatic Supply: | 6 bar (customer facility connection) |
| Hydraulic Supply: | 3 bar (customer facility connection) |
| Electric Supply: | 480 VAC / 60 Hz, three-phase + ground |
| Reference Standards: | ISO 3452-1, ISO 3452-2, ISO 12100:2010, EN 60204-1:2018, 2006/42/CE, 2014/30/UE, 2014/35/UE |
| Optional Configurations: | Stainless steel construction, UL electric cabinet, ATEX aspirator, inverter for suction adjustment, activated carbon filter, extraction pump, digital timer, ECO aspiration sensor, portable white/UV lamps |
| Documentation: | English-language service manual, safety measures, testing/calibration report, electrical/pneumatic/hydraulic schematics, mechanical drawings, CE conformity |
*Configurations can be manufactured to customer specification. Dimensions, materials, illumination, and process automation are all customizable at time of order.
Every DeltaFlux Penetrant Inspection Cabin is built to customer specification — dimensions, materials, illumination, aspiration, and automation are all configurable. Tell us about your parts, your inspection volume, and your facility requirements, and we'll build a system around them.
