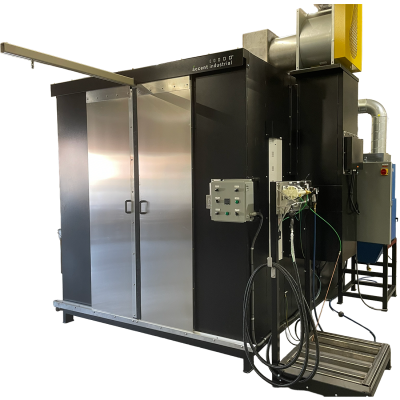

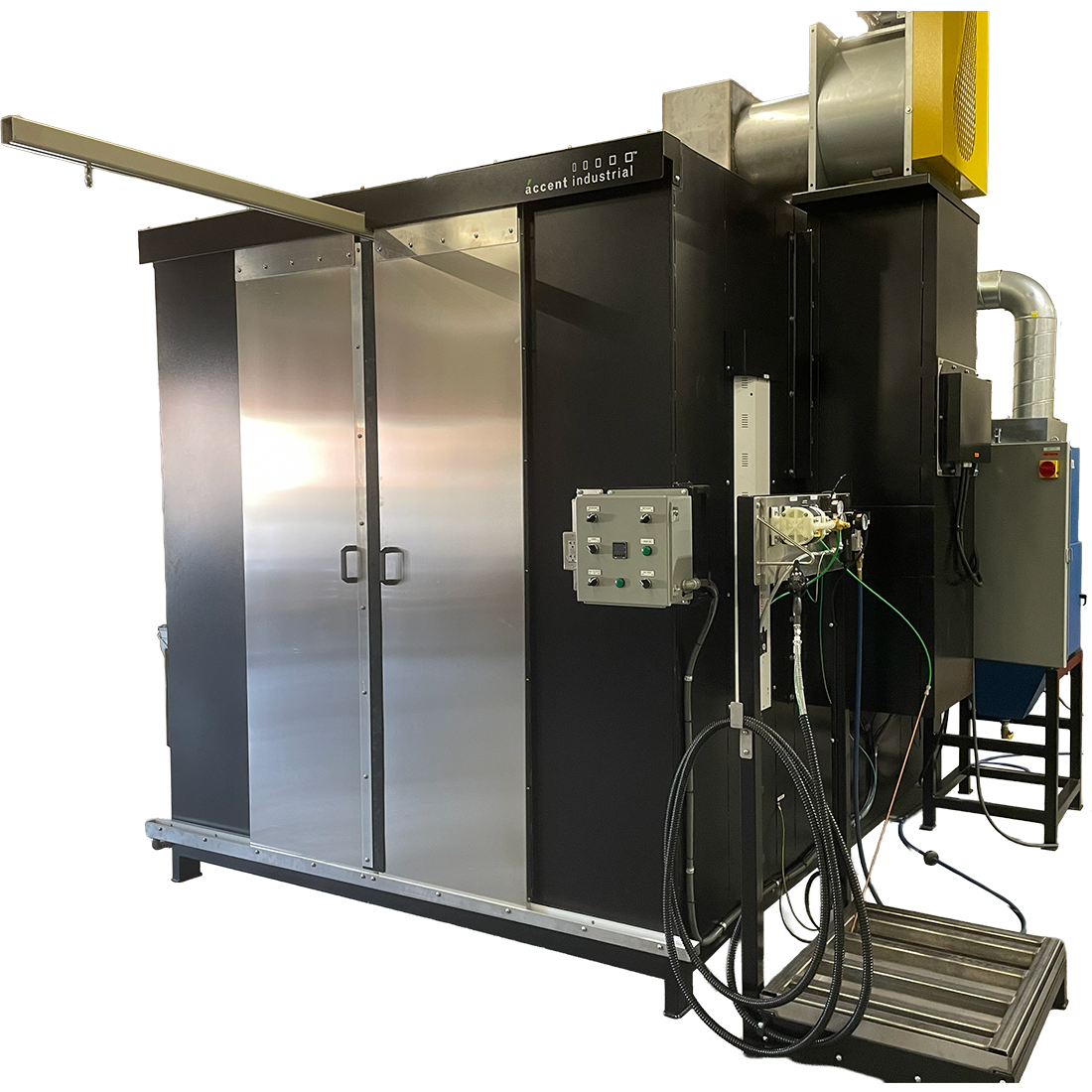

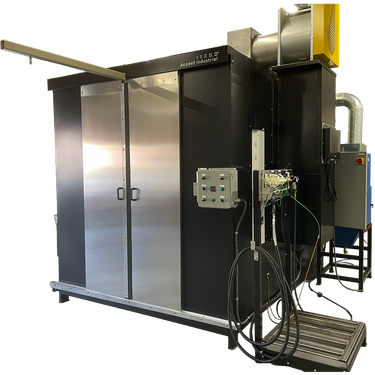

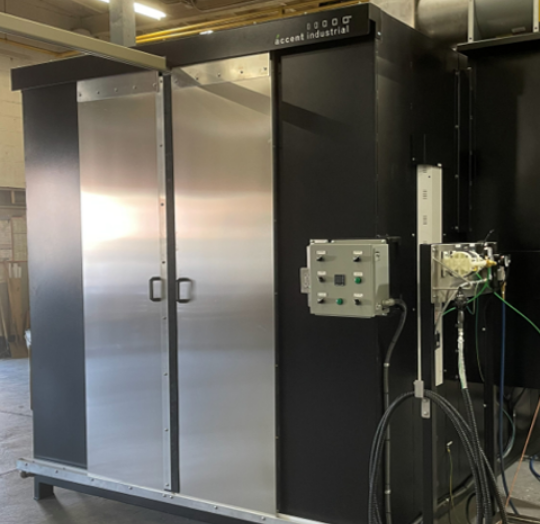

The NDT All-In-One Inspection Cabin provides a dedicated space to support a complete fluorescent penetrant inspection (FPI) in a fully contained environment. Designed to be set up without affecting adjacent operations, the Cabin supports every step of the FPI process — cleaning, penetrant application, water-wash removal with effluent containment, hot-air drying, developer application with mist collection, and inspection in a darkened room with overhead and handheld UV LED lamps. Dimensions, materials, and configuration are built to customer requirements.
Every NDT All-In-One Inspection Cabin is built to customer specification — dimensions, materials, lighting, aspiration, developer application, and automation are all configurable. Tell us about your parts, your inspection volume, and your facility requirements, and we'll build a system around them.
 |
FPI Process Steps Supported | |
| Cleaning: | Manual | |
| Penetrant Application: | Brush-on, aerosol, or electrostatic | |
| Removal: | Water-wash station with floor drain and effluent containment | |
| Drying: | Hot air | |
| Developer Application: | Manual or spray with integrated mist collector | |
| Inspection: | Darkened room with overhead and handheld UV LED lamps | |
| NDT All-In-One Inspection Cabin — Technical Specifications | |
| Room Size (Interior): | 7'8" W x 9'8" D x 7'10" H (2,337 x 2,946 x 2,388 mm) — built to customer requirements |

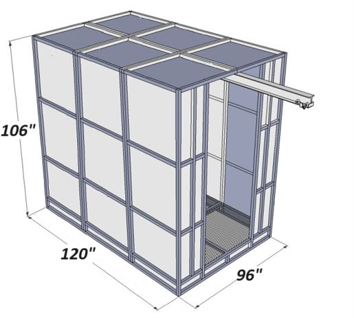

| Footprint: | 8' W x 10' D x 9' H (2,438 x 3,048 x 2,743 mm) |

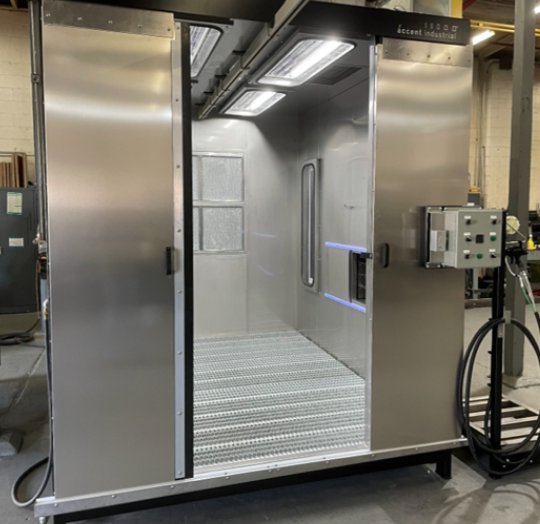

| Interior: | Stainless steel |
| Exterior: | Epoxy-coated steel |

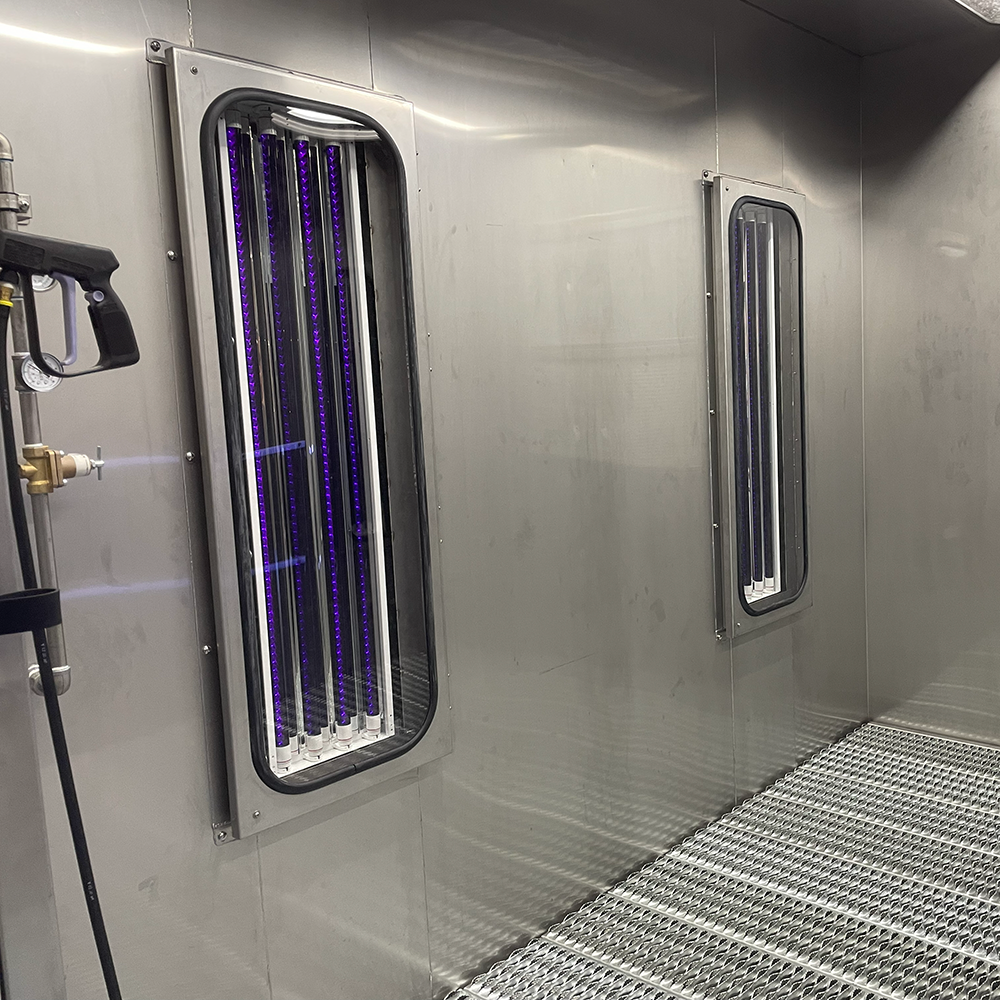

| Rinse Station: | Rinse gun with regulators and gauges |
| Part Loading: | Roof-mounted trolley rail for overhead loading of parts |

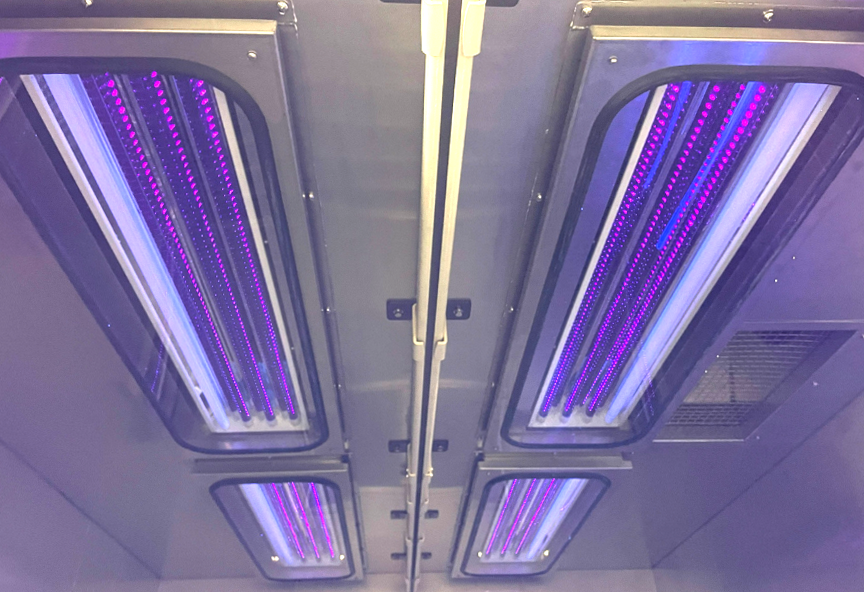

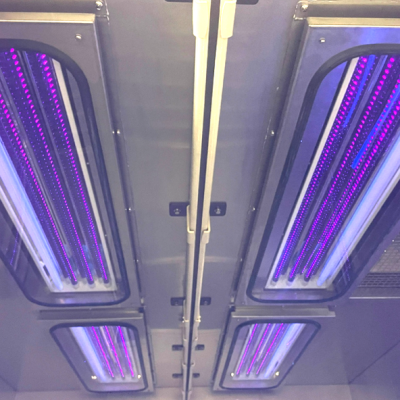

| Lighting: | Overhead LED UV lamps + handheld UV LED lamps for inspection; interior work lighting |
| Water Management: | Floor drain with effluent containment |
| Developer Stage: | Manual or spray application with integrated mist collector |
| Drying Stage: | Hot air |

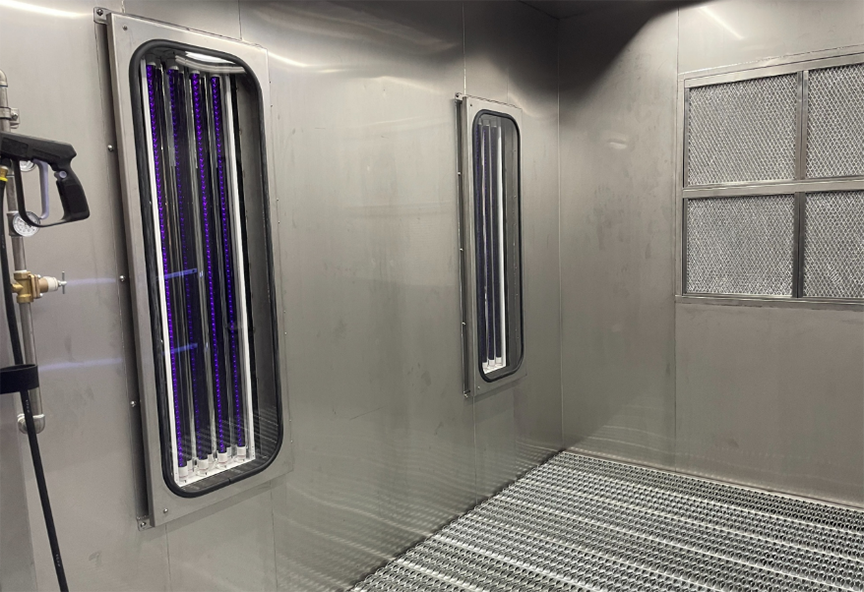

| Air Filtration: | Integrated air filtration at inspection station |
| Customization: | Room dimensions, materials, lighting, aspiration, and process automation are fully customizable to customer requirements |
*Configurations can be manufactured to customer specification. Dimensions, materials, developer application method, and process automation are all customizable at time of order.
Every NDT All-In-One Inspection Cabin is built to customer specification — dimensions, materials, lighting, aspiration, developer application, and automation are all configurable. Tell us about your parts, your inspection volume, and your facility requirements, and we'll build a system around them.
