Peltec All-In-One Universal Mobile X-Ray System

Peltec All-In-One Universal Mobile X-Ray System

constant potential X-Ray System

Peltec All-In-One Universal mobile constant potential X-Ray System

peltec-all-in-one-mobile-xray-system

System Includes:

  • Comet CP X-Ray Tubes - select 160 to 450 kV
  • Tube Clamp
  • Laser Pointer
  • Mobile Cart
  • High Stability Generator
  • Built-in Powered Tube Stand / Manipulator with 20" to 104" range
  • Built-in Alarm module with audible pre-warning
  • Plug and Play

tube-position-controller Remote-safety-operational-controller external-cooler alarm
Tube Position Controller Remote Safety Operational Controller External Cooler Alarm

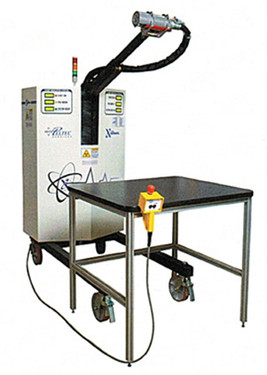

Peltec All-In-One Universal X-Ray System is a complete, ready to use system.

Designed to be used in a radiation shielded vault.

Can be supplied with any directional Comet Constant Potential X-Ray Tube from 160 to 450 kV with a max output of 4500 watts.

The integrated Power Supply / Generator is solid-state power supply and oil and gas free. It is highly stabilized with a consistent 25kHz output with low ripple / noise rate for a stable beam for a high quality image whether you use CR, DR or film.

An electric powered tube positioner allows the tube height to be positioned from 20" to 104" from the ground.

The Tube Cradle allows the tube to be rotated 180 degrees.

The built-in Alarm System is fully code compliant.

The system has comprehensive fault diagnostics and arc sensing to protext the x-ray tube from arcing.

peltec-all-in-one peltec-all-in-one


Specifications:

peltec-all-in-one-specs

Product Literature

Description Part # Saved Price Select Option Add to
Peltec All-in-one universal mobile constant potential X-Ray system RT-PC-ALL-IN-ONE-X-RAY Request Pricing
