Parker Research DA-750

Parker Research DA-750

750 Amp

Featuring Either End (E-E) Connectors

Overview

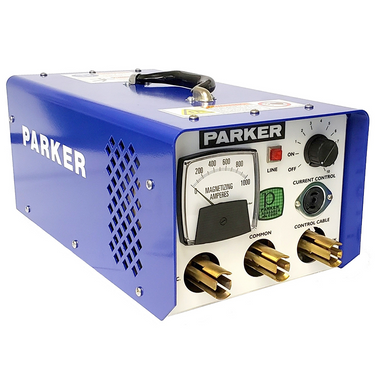

The Parker Research DA-750 heavy duty portable magnetic inspection unit (750 Amp) provides high output AC or HWDC fields for magnetic particle inspection. Field selection is determined by using the appropriate field cable connector.

Current output is infinitely variable from zero to maximum by use of the current control located on the front panel, and is indicated by the panel meter. Actual current output is determined by cable size and length. AC magnetic fields offer the best sensitivity for detection of surface defect indications.

750 Amp Output:

  • Operates from either 115 VAC or 230 VAC (must be specified)
  • The AC field is also beneficial for demagnetizing after inspection
  • Half-Wave DC magnetic fields provide for the detection of certain subsurface defect indications
  • DC fields penetrate a cross section of the test area, rather than just the surface
  • Optional magnetizing cables can be equipped with prods for circular magnetization
  • The cables can be wrapped around parts to form a coil for longitudinal magnetization
  • Demagnetization is accomplished in a similar manner





Advantages & Features

  • Convenient and economical
  • Ideal for large or heavy parts, in-service mobile equipment, or job-site welds
  • Selection of AC current or HWDC current by only changing one cable connection.
  • Locate defects in any direction using prods, coil wrap or contact clamps.
  • Infinitely variable current control.
  • Demagnetize your parts in AC by turning the current dial to zero or by passing parts through a coil and slowly withdrawing them while the current is on.

Technical Specifications

DA-750 Specifications

Dimensions (LxWxH) 18" x 9.25" x 8" (45.7 x 23.5 x 20.3 cm)
Maximum Output Current 750 Amps, AC or HWDC
Line Voltage 115 VAC, 50/60 Hz
Single Phase 230 VAC, 50/60 Hz
Line Current 27 A @ 115 VAC;
14 A @ 230 VAC
Maximum Duty Cycle 10%
2 minutes ON
2 minutes OFF
Cord Length 20 ft. (6 m)
Unit Weight 43 lbs. (19.5 kg)

Accessories

Parker Research offers an array of accessories for the DA-1500 and DA-750 Magnetic Particle Portable Testers, from transport trollies, individual prods, dual horizontal prod assemblies, braided contact clamps, connectors, cables, replacement prod tips, and more.

View Accessories

Product Literature

Description Part # Saved Price Select Option Add to
Parker Research DA-750 Portable Magnetic Inspection Unit, 115 VAC, 1P MT-PR-DA750-1
$4,715.00
Parker Research DA-750 Portable Magnetic Inspection Unit, 230 VAC, 1P MT-PR-DA750-2
$4,715.00
