Parker Research DA-1500

Parker Research DA-1500

1,500 Amp AC/HWDC + AC Demag MPI Power Supply

Featuring Either End (E-E) Connectors

Overview

The Parker Research DA-1500 portable heavy duty magnetic inspection unit (1500 Amp) provides high output AC or HWDC fields for magnetic particle inspection. Field selection is determined by using the appropriate field cable connector. Current output is infinitely variable from zero to maximum by use of the current control located on the front panel, and is indicated by the panel meter. Actual current output is determined by cable size and length.

AC magnetic fields offer the best sensitivity for detection of surface defect indications. The AC field is also beneficial for demagnetizing after inspection. Half-Wave DC magnetic fields provide for the detection of certain subsurface detect indications. DC fields penetrate a cross section of the test area rather than just the surface. Optional magnetizing cables can be equipped with prods for circular magnetization. The cables can be wrapped around parts to form a coil for longitudinal magnetization. Demagnetization is accomplished in a similar manner.



Advantages & Features

  • Convenient and economical
  • Ideal for large or heavy parts, in-service mobile equipment, or job-site welds
  • The optional DA1500-DR comes equipped with an easy-to-read digital LCD display.
  • Selection of AC current or HWDC current by only changing one cable connection.
  • Locate defects in any direction using prods, coil wrap or contact clamps.
  • Infinitely variable current control.
  • Demagnetize your parts in AC by turning the current dial to zero or by passing parts through a coil and slowly withdrawing them while the current is on.

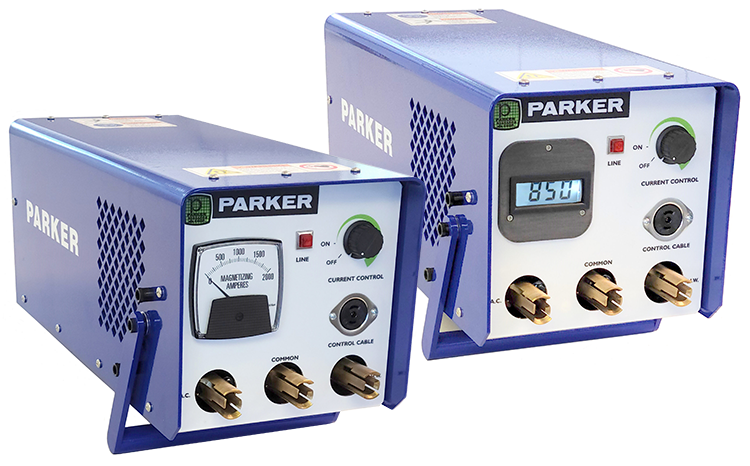

Two Models Available

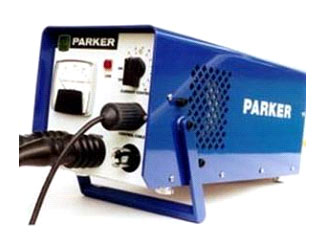

DA-1500

Original Design. Analog Meter. Many years of heavy duty magnetic particle inspection.

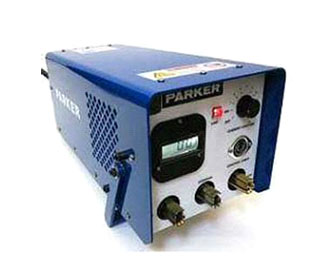

DA-1500-DR

New Digital LCD display is easy to read in any light condition. Overall accuracy has been enhanced thanks to a new circuit design.

Technical Specifications

DA-1500 / DA-1500-DR Specifications

Dimensions (LxWxH) 21.5" x 10.5" x 9.5" (54.6 x 26.7 x 24.1 cm)
Maximum Output Current Ratings 1500 amps, AC or HWDC (based on the use of two 15-foot lengths of 4/0 cable)
Line Voltage 230 VAC, 50/60 Hz
Single Phase 460 VAC, 50/60 Hz
Line Current 45 amps @ 230 VAC
23 amps @ 460 VAC
Duty Cycle 10%
Cord Length 20 ft. (6 m)
Unit Weight 110 lbs. (49.9 kg)

Accessories

Parker Research offers an array of accessories for the DA-1500 and DA-750 Magnetic Particle Portable Testers, from transport trollies, individual prods, dual horizontal prod assemblies, braided contact clamps, connectors, cables, replacement prod tips, and more.

View Accessories

Description Part # Saved Price Select Option Add to
Parker Research DA-1500 Portable Magnetic Inspection Unit, 230 VAC, 1P MT-PR-DA1500-230 $5,486.00
Parker Research DA-1500 Portable Magnetic Inspection Unit, 460 VAC, 1P MT-PR-DA1500-460 $5,486.00
Parker Research DA-1500-DR Portable Magnetic Inspection Unit, 230 VAC, 1P MT-PR-DA1500-DR-230 $5,980.00
Parker Research DA-1500-DR Portable Magnetic Inspection Unit, 460 VAC, 1P MT-PR-DA1500-DR-460 $5,980.00
