P-Series UV & White Light 3D Measuring Videoscope

P-Series UV & White Light 3D Measuring Videoscope

LED UV & 3D Measurement

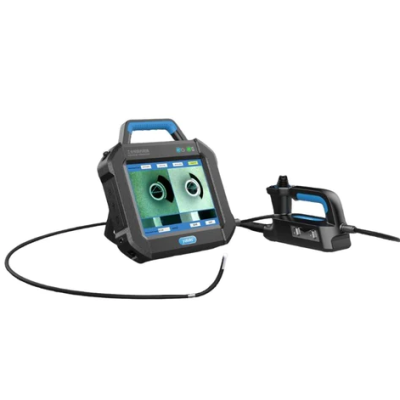

The P-Series is one of the most versatile industrial videoscope platforms available, featuring a wide range of interchangeable probe configurations including variable sizes, lengths, and styles including UV and 3D Measurement. Great for benchtop use, the system is also fully portable and includes two sets of rechargeable lithium-ion batteries for up to 3 hours of battery life per set. With an 8” HD touchscreen monitor, motorized articulation, and an assortment of multi-functional capabilities, the P-Series is the ideal videoscope system for both multi-part inspections and specialty applications alike.

UV Probes are available in 3.9mm and 6.0mm diameters with lengths of 1m, 1.5m, 2m or 3m. 3D Measurement White Light Probes are available with a 6.0mm diameter with lengths of 1m or 2m.





Features

  • CMOS image process system with 160,000 pixels, providing ultra clarity
  • 8” touch screen color display
  • Joystick control moves the instruments distal tip through 4-way 360° of articulation to allow easy access within complex part geometry
  • P-Series scopes meet industry-wide UV-A intensity requirements with a 365nm peak wavelength
  • 6mm UV probes measure 4500 μW/cm2 at 1" distance
  • 3D measurement system can accurately measure the size of defects through point-to-point, point-to-line, point-to-surface, area measurement etc.
  • Automatic locking and precise, flexible positioning
  • Built-in color modes
  • Insertion tube is braided with four layers of tungsten wire and is wear-resistant, anti-corrosion, and has an IP67 protection level
  • The unit can be equipped with multiple probe operation handles to meet different application requirements and can be easily replaced

3D Measurement System

The P-Series 3D measurement videoscope perfectly combines 3D measurement technology with Endoscope technology. Features a brilliant, integrated LED for easily adjustable lighting for capturing photos and videos in a variety of environments. This scope can be used interchangeably with the UV and white light probes, however the measurement function is only available for the white light probes.

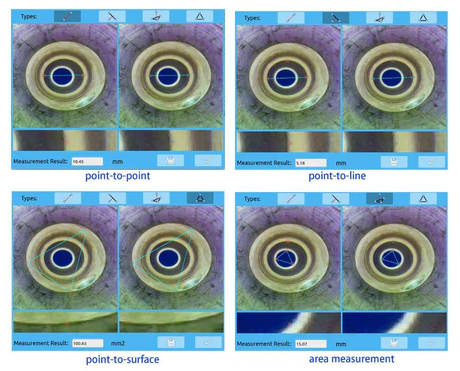

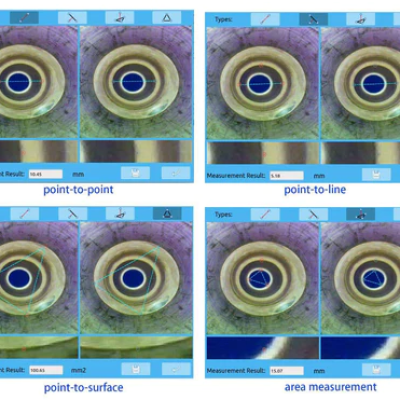

The 3D Measurement system can accurately measure the size of defects through point-to-point, point-to-line, point-to-surface, area measurement etc., as seen in the left image (top to bottom, left to right).

Probe Comparison Chart

Part Number Length Diameter Field of View Depth of Field Light Type Intensity Measurement @ 1" Intensity Measurement @ 1.5"
P410UV 1m (3.28') 3.9mm (0.15”) 120 Degrees 3-50mm (0.11-1.97”) UV (365nm) 1180 μW/cm2 550 μW/cm2
P415UV 1.5m (4.92')
P420UV 2m (6.56')
P430UV 3m (9.84')
P610UV 1m (3.28') 6.0mm (0.24”) 4500 μW/cm2 2250 μW/cm2
P615UV 1.5m (4.92')
P620UV 2m (6.56')
P630UV 3m (9.84')
P610BM 1m (3.28') 5-100mm (0.19" - 3.93") White Light (100,000 Lux) N/A N/A
P620BM 2m (6.56')

Technical Specifications

P-Series Specifications

System
Dimension

9.7 x 12.6 x 4.8" (246 x 321 x 123mm)
Weight 5 lbs. (2.3kg)
Display screen 8" (20.32cm) IPS industrial HD touch LCD screen with resolution 1024 x 768 (ratio 4:3)
Control lever Electric rocker with lens able to rotate in 360-degree, automatic set, direction fine tuning adjustable
Functions Photography, video, brightness control, locking and fine tuning
Storage 32G high speed SD card (UP TO 128G)
I/O port SD card, VGA port (1024 x 768), charge and mini USB
Battery/Standby Time Four 18650 Lithium batteries (replaceable)
Brightness Control 5 degrees each for high and low brightness adjustment,10 degrees in total
Combining Form Monitor + probe Separable group
Compatibility Support different diameter probes
Software
Operation System Real time multitasking operation system
User Interface Touch screen operation menu
File Management Support image and video play, delete, format memo and naming
Image Control Zoom in/out (1.0X - 1.5X,5 steps), playback, picture freeze-frame, image reversal, mirror image
Image/Video Format JPEG, JPG/AVI (record date and time)
Language English/Chinese/Korean/German/Russian/Japanese
Color Settings 4 modes for different applications
White Balance Automatic/manual white balance
Exposure Mode Automatic/manual/shutter/aperture exposure
Upgrade Upgrade by SD card service pack
Operating Environment
Monitor Working Temp

14°-122°F (-10°-50°C)
Video Probe Working Temp -4°-158°F (-20°-70°C)
Relative Humidity Highest 90%, no condensation
Waterproof Monitor IP54/video probe IP67



Kit Includes

  • Yateks P-Series 8" (20.32cm) Display Monitor Control Device
  • Articulating Scope (specify diameter and length)
  • Interconnect Cable
  • Charger
  • SD Card
  • User Manual
  • Shipping/storage Case
