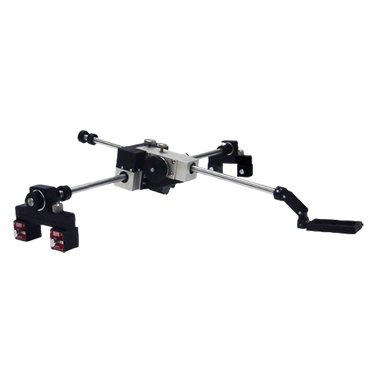

Designed for Ultrasonic, Phased Array, Eddy Current & Time-of-Flight-Diffraction inspections, this XY Dual Axis Manual Inspection Scanner can be combined with a portable workstation and one of our TecView™ software packages to provide high resolution B- and C-Scan images. Although manual, this scanner has the capacity to generate C-Scans comparable to the ones produced by immersion or automated scanners. Additionally, it is lightweight and can be easily disassembled and stored in its transportation box for on-site inspections.
| Axis Stroke (X & Y): | 12 to 20″ (300 to 500mm) |
| Scan Resolution (X & Y): | 0.0006″/Step (0.015mm/Step) |
| Index Step: | 0.02″/Index (0.5mm/Index) |
