NDT Modular LPI System

NDT Modular LPI System

NDT Modular LPI System

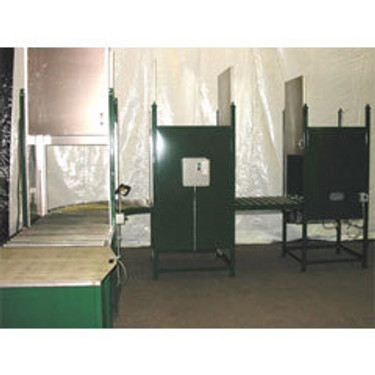

Pictured below is a 36 x 36 Water Washable Dip System with Dry Developer
in an "L" Shaped Configuration

ndt-modular-lpi-system-l-shape ndt-modular-l-shaped
Process: Water Wash with Penetrant Dip and Dry Developer
Station Sizes: 36x36, 48x36, 72x36, 48x48, Other
System Layout: Linear, "L" or "U"
Loading Station:
  • Rollers or Grill
  • Straight or 90°
Penetrant Station - Dip Type
  • Size
  • Hinged Tank Cover
  • Power Immersion System
Dwell Station:
  • Corrosion Resistant Rollers or Grill
  • S.S. Drain Pan
  • Straight or 90°
Rinse Station:
  • Dip or Spray
  • Hand Held Wash Gun
  • Pressure / Temperature Control Module
  • Size
  • Rear Splash Guard
  • Power Immersion System
  • UV Lamp
    • Hand Held
    • Overhead Flood Lamp
    Drain:
    • Corrosion Resistant Rollers or Grill
    • S.S. Drain Pan
    • Straight or 90°
    Dryer Station:
    • Side or Front Loading
    • Corrosion Resistant Rollers or Grill
    • Split Roof for Overhead Conveyor
    • Calibrated Digital Temperature Control
    • Removable Fans and Heating Elements
    Rest Station:
    • Corrosion Resistant Rollers or Grill
    • Straight or 90°
    Developer Station:
    • Dry or Wet
    • Roller Grill
    • Enclosed Chamber Entry and Exit Doors
    • Split Roof
    • Dust Collection Duct
    • Dust Collection for Dynamic Cloud
    Rest Station:
    • Corrosion Resistant Rollers or Grill
    • Straight or 90°
    Inspection Station:
    • Size
    • Split Roof
    • Roller Grill
    • UV Lamps (#)
    • White Light
    • Ventilating Fan
    • Full Length Curtains


    Product Literature

    Description Part # Saved Price Select Option Add to
    NDT Modular LPI Systems PT-NDT-MOD-LPI Request Pricing
