NDT Film Image Scale

NDT Film Image Scale

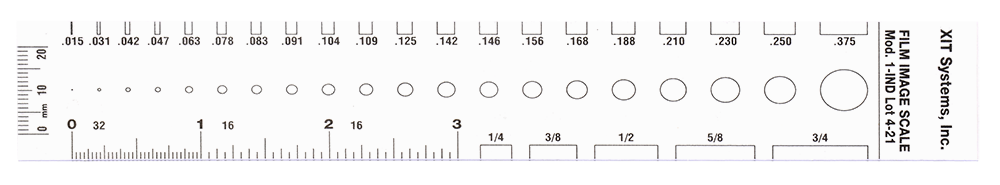

Radiographic Film Image Scale — ASME (MOD.1-IND)

Pocket-sized clear plastic scale, is used to aid radiographers in the correct size identification of internal gas porosity and rounded indications in welds. Can be used in conjunction with the ASME codes dealing with rounded indications characteristics.

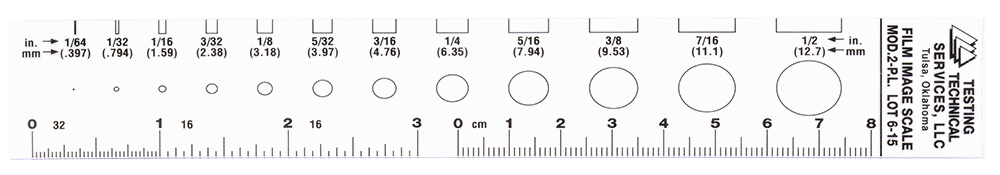

Radiographic Film Image Scale — API (MOD.2-PL)

Pocket-sized clear plastic scale, is used to aid radiographers in the correct size identification of indications in pipe welds with outside diameters greater than or equal to 60.33 mm (2-3/8 in.). Can be used in conjunction with API 1104.

Description Part # Saved Price Select Option Add to
Film Image Scale for ASME (pack of 3) RT-VT-MOD.1-IND-03 $65.00
Film Image Scale for API (pack of 3) RT-VT-MOD.2-PL-03 $65.00
Film Image Scale for ASME (Pack of 5) RT-VT-MOD.1-IND-05 $90.00
Film Image Scale for API (Pack of 5) RT-VT-MOD.2-PL-05 $90.00
