Navy Eddy Current Reference Standard Kit

Navy Eddy Current Reference Standard Kit

Navy Eddy Current Reference Standard Kit

Manufactured in accordance with U.S.A.F. T.O. 33B-1-1 Figure 4-40

MATERIALS:

P/N NRK-3A: Aluminum 7075-T651 - top and middle layers and 7075-T73 bottom layer

P/N NRK-3S: 4340 Steel all three layers

P/N NRK-3T: 6AL-4V TI all three layers

P/N NRK-3AST: Consists of all three of the above

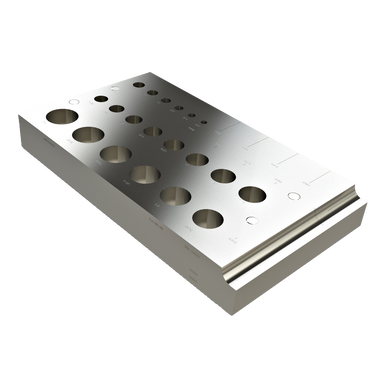

The standard is a 3 plate assembly measuring 4" x 7" x 0.875". Contains 20 fastener holes with diameters ranging from 0.156" to 0.750"., 2 screw holes and 2 dowel holes. There are 71 E.D.M. notches in various locations. Notch depths and lengths vary. Widths for all notches is 0.004"

navy eddy current block

Note: Certificate of Calibration (Dimensional Certificate, Test Report) is included in the price quoted.

Product Literature

Description Part # Saved Price Select Option Add to
NRK-3A, Navy Eddy Current Standard, Aluminum 7075-T6, with 20 fastener holes (.156-.750) containing a total of 71 EDM notches (NRK-3AL) EC-AF-NRK-3A $3,889.00
NRK-3S, Navy Eddy Current Standard, Steel 4340, with 20 fasteners (.156-.750) containing a total of 71 EDM notches (NRK-3ST) EC-AF-NRK-3S $3,944.00
NRK-3SS, Navy Eddy Current Standard, Stainless Steel 304, with 20 fastener holes (.156-.750) containing a total of 71 EDM notches. (NRK-3SS) EC-AF-NRK-3SS $4,220.00
NRK-3T, Navy Eddy Current Standard, Titanium, with 20 fastener holes (.156-750) containing a total of 71 EDM notches. (NRK-3T) EC-AF-NRK-3T $4,715.00
NRK-3AST, Navy Eddy Current Standard, Set of 3 (Aluminum 7075-T6, Steel 4340, Titanium), each with 20 fastener holes (.156-.750) containing a total of 71 EDM notches (with case) (NRK-3AST) EC-AF-NRK-3AST $12,648.00
NRK-3S/17-4, Custom Navy Eddy Current Block, 17-4PH TH1050 Stainless Steel (3 Plate assembly measuring 4"x7"x.875"), w/ 20 fastener holes with diameters measuring from.156-.750", containing a total of 71 EDM notches (NRK-3S/17-4) EC-AF-NRK-3S/17-4 $5,230.00
NRK-3S/17-7, Custom Navy Reference Standard - 17-7PH Stainless Steel w/ 20 fastener holes (.156"-.750") containing a total of 71 EDM Notches. (NRK-3S/17-7) EC-AF-NRK-3S/17-7 $4,884.00
Waterproof Kit Box with Foam Cutouts for Probe & Navy Eddy Current Standard (Fits up to 3 Blocks) EC-AF-NRK-CASE $107.00
