Magnetix MGN4 Battery Powered AC Yoke

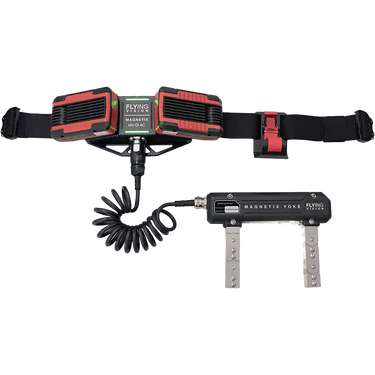

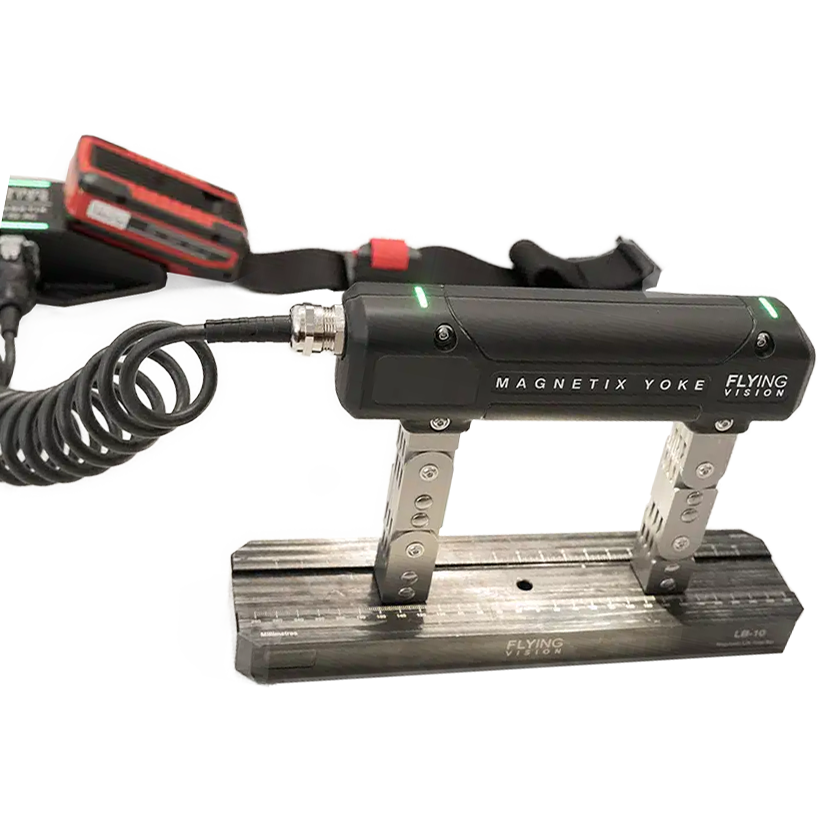

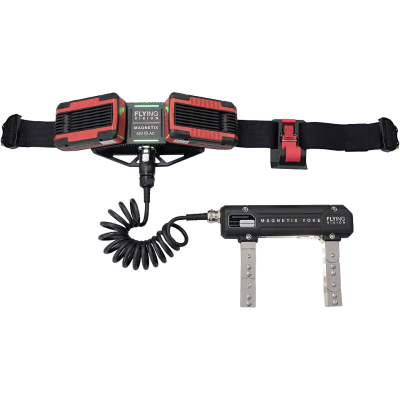

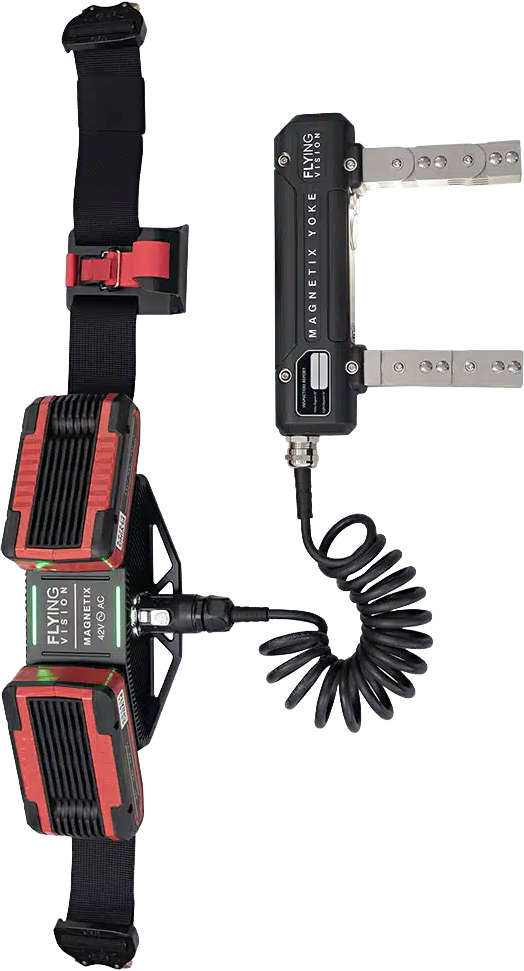

Magnetix MGN4 Battery Powered AC Yoke

  • Total portability – no AC power cord or power supply to drag you down
  • Uses standard, readily available, DeWalt batteries

The Next Gen Ergonomic, Battery-Powered AC Yoke

Built on the new Magnetix Yoke platform with 42 VAC low-voltage architecture

Up to 8 hour battery life, true AC magnetization, and an optional integrated UVW light

Lifting capacity remains the same regardless of the battery level.

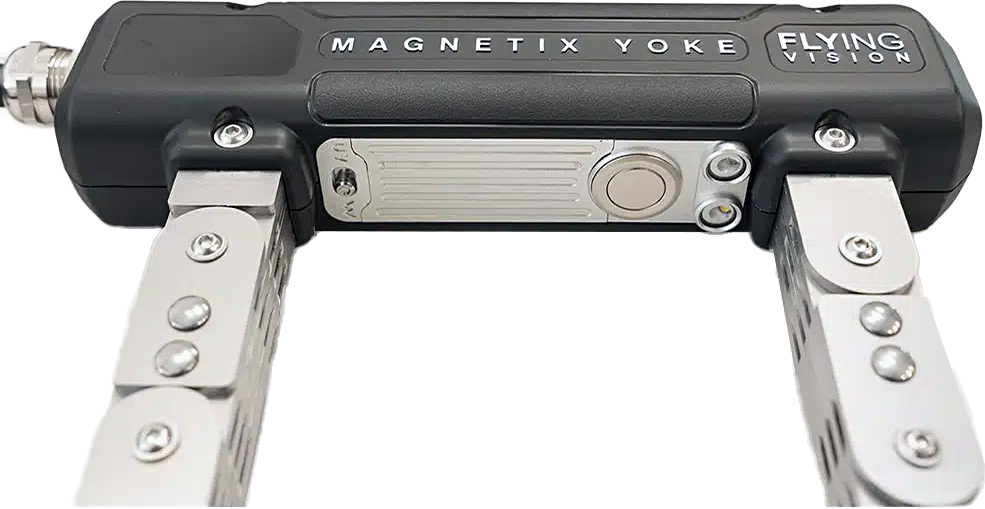

Overview

The Magnetix MGN4 is the next-generation battery-powered 42 VAC AC yoke kit, designed for demanding magnetic particle inspections in the field. Built around the new yoke architecture, it combines high magnetic performance, advanced electronic control, and enhanced overall reliability in a safer low-voltage platform.

An embedded MCU control system actively regulates both output voltage and current, so the magnetic field and lifting capacity stay constant from a full charge down to automatic low-battery shutdown. The result is a true AC yoke that delivers workshop-grade sensitivity in a fully portable, belt-mounted package.





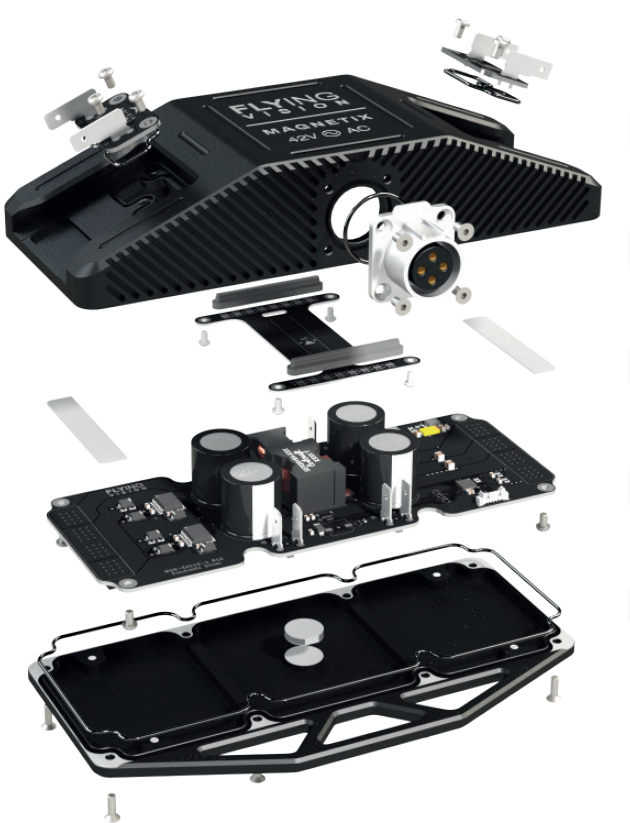

Features

  • Freedom from extension cords, generators, and mains power
  • True AC magnetization in a fully portable, battery-powered system
  • Stable magnetic output and lifting capacity regardless of battery level
  • MCU-controlled voltage and current with real-time system monitoring
  • Short-circuit protection on the battery terminal when only one battery is connected and automatic low-battery shutdown
  • Strong tangential magnetic field — > 2000 A/m at 15.5 cm
  • Optional integrated dual-spectrum UVW lamp (UV-A + white light) for visible and fluorescent MPI

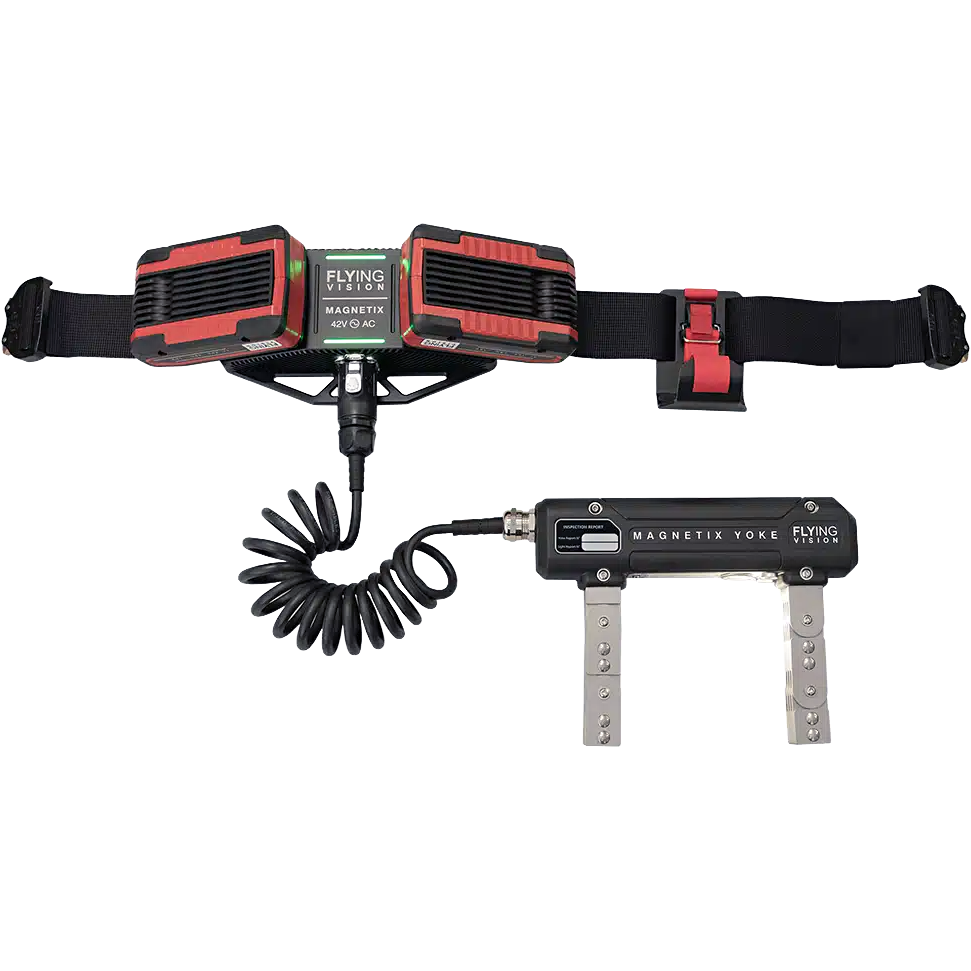

  • Belt-mounted power system for full field mobility
  • 4 to 8 hours of operating time depending on duty cycle
  • IP54-equivalent protection for harsh industrial environments

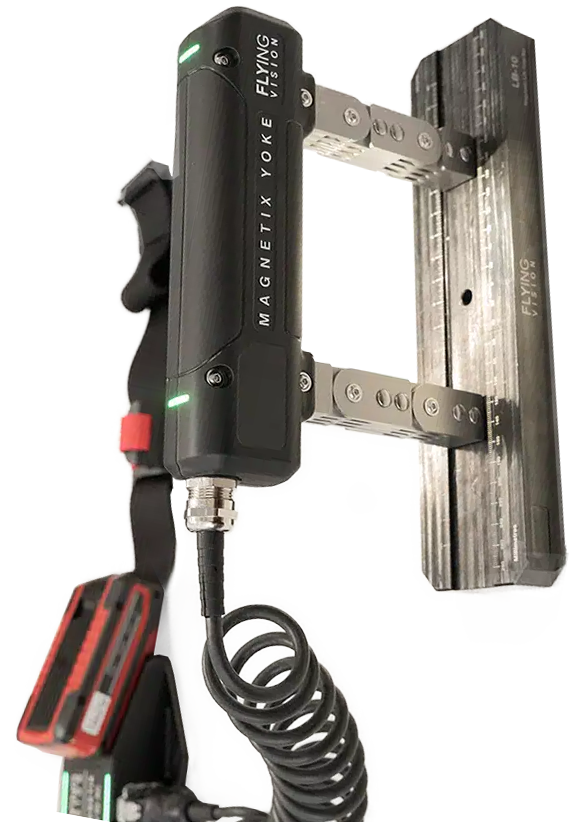

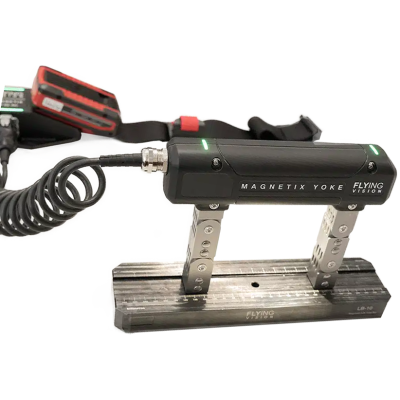

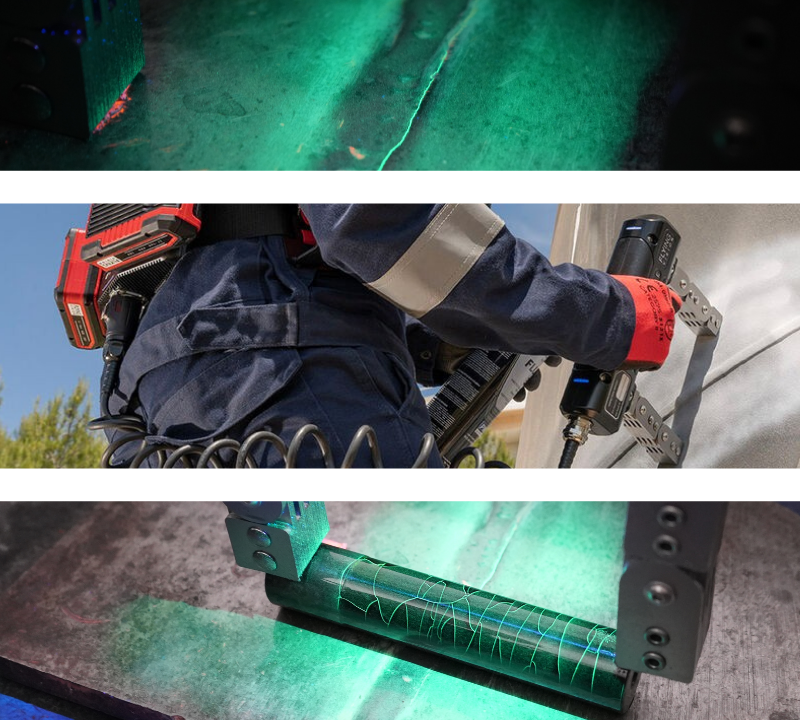

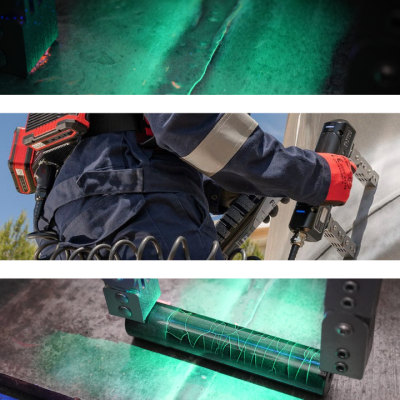

Applications

The MGN4 is built for field magnetic particle inspection where freedom of movement, safe handling, and reliable performance are essential. Its compact, belt-mounted design and battery-powered AC operation make it particularly well suited to:

  • Inspections in confined spaces

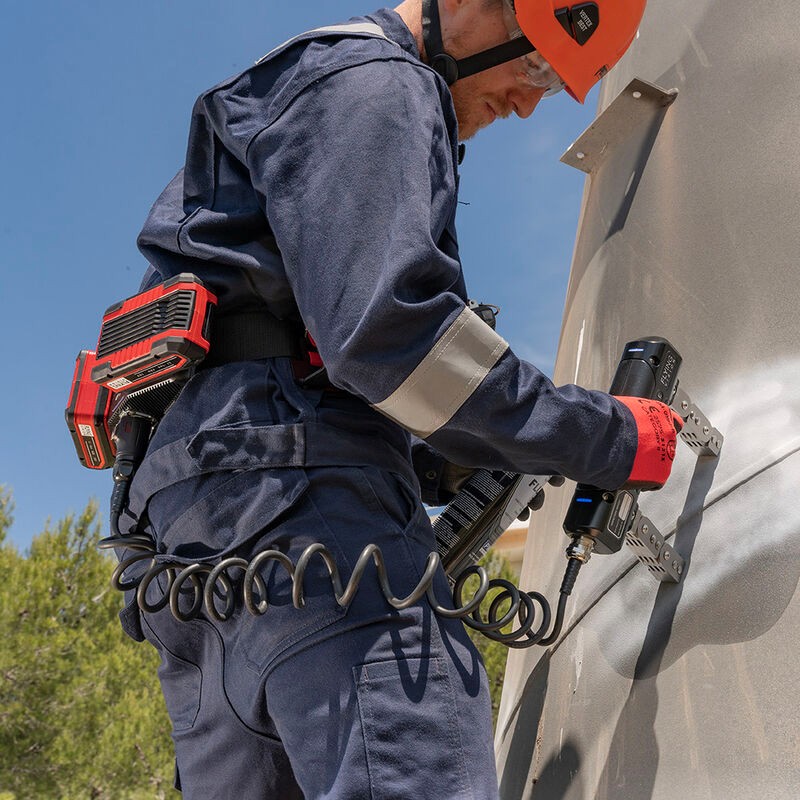

  • Rope access and working-at-height inspections
  • Refinery and process-unit weld inspections
  • Field maintenance operations in difficult-access areas
  • Visible and fluorescent MPI (with optional UVW light module)
  • Shipbuilding
  • Amusement Park Rides

Technical Specifications

Technical Specifications

Technical Specifications
Working Voltage: 42V AC 50/60Hz
Input Voltage: 18V DC
Battery Pack Capacity: 2 x 4Ah
Charging Time (2 batteries): Dual Charger: 1 hr  |  Single Charger: 2 hrs
Duty Cycle: 50%
Autonomy — Standard Field Use (25% Duty Cycle): Up to 8 hours
Autonomy — Intensive Field Use (50% Duty Cycle): Up to 4 hours
Pull Force / Lifting Capacity: > 10 lb (4.54 kg) with pole gap of 4.3" (11 cm)
Tangential Magnetic Field: > 2000 A/m at 6.1" (15.5 cm)*
Pole Section: 0.98" x 0.98" (25 x 25 mm) — 0.97 in² (6.25 cm²)
Protection Rating: IP54-equivalent
Total Weight (excluding case): 11.0 lb (5.0 kg)
Certifications: CE, UKCA

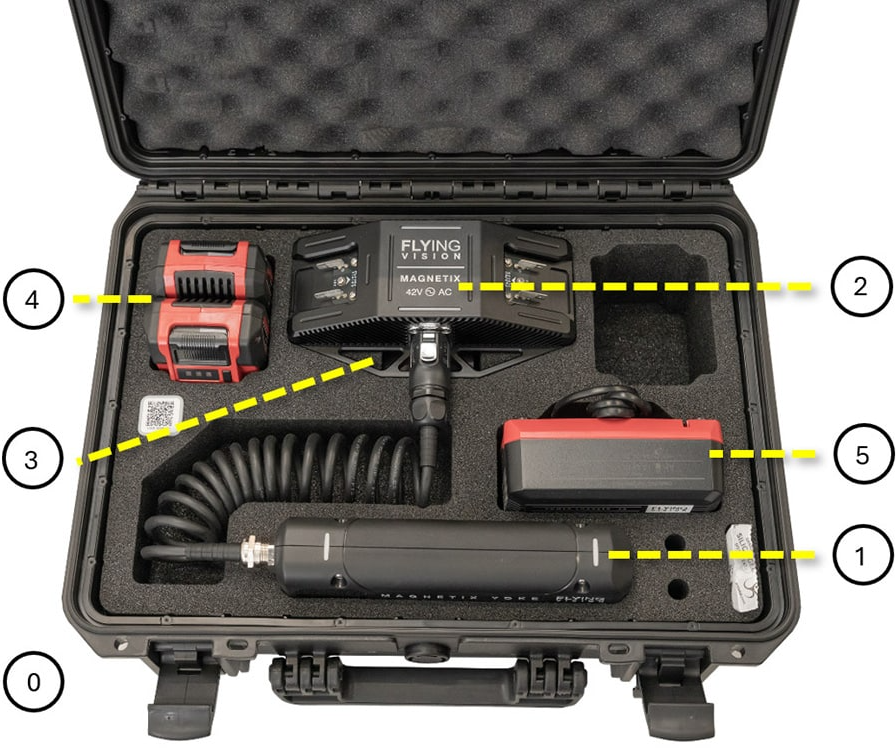

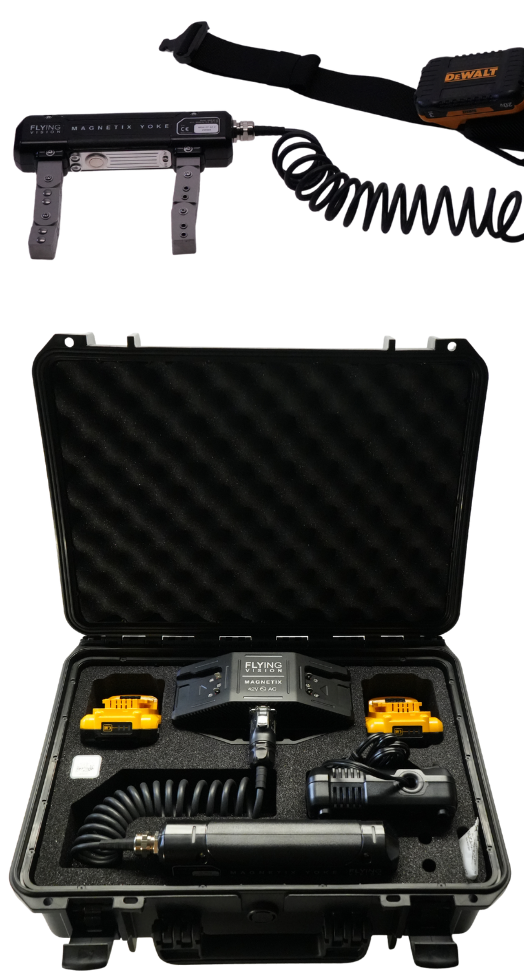

Main Kit Components

  Main Kit Components for US Kits Main Kit Components for EU Kits
0 Rugged Transport Case Rugged Transport Case
1 MAGNETIX 42VAC Heavy Duty Yoke (with or without UV/White Light) MAGNETIX 42VAC Heavy Duty Yoke (with or without UV/White Light)
2 MAGNETIX 42V AC (DC/AC) Power driver MAGNETIX 42V AC (DC/AC) Power driver
3 Power Belt and Yoke Support Power Belt and Yoke Support
4 DEWALT 20V MAX 3 Ah Lithium Ion Battery, 2-Pack (DCB230-2) Einhell 18V 3 Ah Lithium Ion Battery – EU, 2-Pack
5 DEWALT Single Battery Charger for Dewalt 20V Lithium Ion Battery (DCB115) Einhell Li-ion Dual Battery Charger, 220V - EU

Kit Versions

American Kit Versions / Dewalt battery system:
MT-FV-MGN4US-1: MAGNETIX MGN4 US Version – Standard Magnetix Yoke – with battery / charger
MT-FV-MGN4US-2: MAGNETIX MGN4 US Version – Magnetix Yoke with UVW Light – with battery / charger
EU Kit Versions / Einhell battery system:
MT-FV-MGN4EU-1: MAGNETIX MGN4 EU Version – Standard Magnetix Yoke – Including one set of batteries and a single charger
MT-FV-MGN4EU-2: MAGNETIX MGN4 EU Version – Magnetix Yoke with UVW Light – Including one set of batteries and a single charger
MT-FV-MGN4EU-3: MAGNETIX MGN4 EU Version – Standard Magnetix Yoke – without battery / charger
MT-FV-MGN4EU-4: MAGNETIX MGN4 EU Version – Magnetix Yoke with UVW Light – without battery / charger











Product Literature

Description Part # Saved Price Select Option Add to

Magnetix MGN4 Battery Powered AC Yokes
MAGNETIX MGN4 Standard Kit, US Version, with 1 set of Dewalt batteries and 1 single charger (110V) MT-FV-MGN4US-1
$4,065.00
MAGNETIX MGN4 with Integrated UV/White Light, US version, with 1 set of Dewalt batteries and 1 single charger (110V) MT-FV-MGN4US-2
$4,465.00
MAGNETIX MGN4 EU version - Standard Kit with 1 set of Einhell batteries and 1 single charger (220V) MT-FV-MGN4EU-1
$3,815.00
MAGNETIX MGN4 with Integrated UV/White Light, EU version, with 1 set of Dewalt batteries and 1 single charger (220V) MT-FV-MGN4EU-2
$4,215.00
MAGNETIX MGN4, EU Version, without battery / charger MT-FV-MGN4EU-3
$3,550.00
MAGNETIX MGN4 with Integrated UV/White Light, EU version, without battery / charger MT-FV-MGN4EU-4
$3,950.00

Battery & Charger - US 110V (Dewalt)
DEWALT 20V MAX 3 Ah Lithium Ion Battery (DCB230) MT-FV-DCB230
$175.00
DEWALT 20V MAX 3 Ah Lithium Ion Battery, 2-Pack (DCB230-2) MT-FV-DCB230-2
$310.00
DEWALT Single Battery Charger for Dewalt 20V Lithium Ion Battery (DCB115) MT-FV-DCB115
$235.00

Battery & Charger - Overseas 220V (Einhell)
Einhell Li-ion Dual Battery Charger, 220V - EU MT-FV-MGN3-A700-1
$295.00
Einhell 18V 3 Ah Lithium Ion Battery – EU, 2-Pack MT-FV-MGN3-A500-1
$365.00
