Magnetix MGN3 Battery Powered AC Yoke

Magnetix MGN3 Battery Powered AC Yoke

  • Total portability – no AC power cord or power supply to drag you down
  • Uses standard, readily available, DeWalt batteries

Ergonomic, Battery-Powered AC Yoke

AC Yokes have better sensitivity than DC Yokes

Includes: 8 hour battery life and a working voltage of 42V AC 50/60HZ

Lifting capacity remains the same regardless of the battery level.

Consistent Magnetic Field and Lifting Capacity

The MGN3’s electronics control both the output voltage and current, meaning the magnetic field and lifting capacity remain the same regardless of the battery level.

Features

  • Freedom from extension cords and generators
  • Lifting capacity remains the same regardless of battery level
  • Automatic shutdown when battery is low
  • Short-circuit protection of the battery terminal when only one battery is connected
  • Tangential magnetic field up to 2000A/m at (16.5cm)
  • Optional Modular dual-spectrum (White light or UV) lamp attachment

Technical Specifications

Technical Specifications

Magnetix MGN3 Battery Powered AC Yoke Technical Specifications
Working Voltage: 42V AC 50/60HZ
Input Voltage: 18V DC
Battery pack capacity: 2 x 3Ah
Charging time for battery pack (2 batteries): Dual charger: 1 h - Single charger: 2 h
Duty Cycle: 50%
Autonomy for standard field use ( 25% of Duty Cycle ): Up to 8 hours
Autonomy for intensive field use ( 50% of Duty Cycle ): Up to 4 hours
Pull Force / Lifting Capacity: ~6kg (13.2lbs) with pole gap of 11cm (4.3 in)
Tangential magnetic field: >2000 A/m at 16.5cm
Pole section: 25 x 25 mm (6.25 cm²)
Protection Rating IP: IP54
Total weight (excluding case): 5kg (11 lbs)
Certifications: CE, UKCA, FCC pending

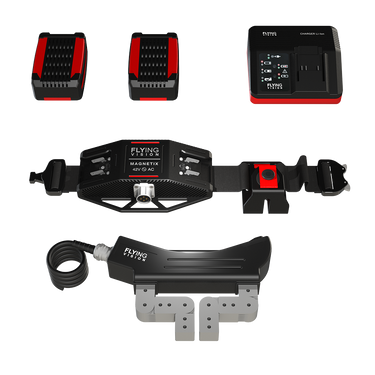

Kit Includes

  • One Fast single charger with one set of Li-ion batteries
  • MAGNETIX 42VAC Power driver with belt and yoke support
  • MAGNETIX 42VAC Heavy Duty Yoke
  • Rugged transport case
  • Battery Charger (MGN3-1 Kit)











Product Literature

Description Part # Saved Price Select Option Add to
MAGNETIX MGN 3.0 Battery Powered AC Yoke, 42V AC, U.S. Version - Standard Kit with 1x Set of DEWALT 20V MAX 3 Ah Lithium Ion Batteries and 1x Single Battery Charger (110V) MT-FV-MGN3-US
Request Pricing
MAGNETIX MGN 3.0 Battery Powered AC Yoke, 42V AC, EU Version - Standard Kit with 1 Set of Einhell 20V 3 Ah Batteries and 1 Single Battery Charger (220V) MT-FV-MGN3-1
Request Pricing
MGN3-A010, Yoke Light, Dual Spectrum UV/White Light MT-FV-MGN3-A010
Request Pricing
DEWALT 20V MAX 3 Ah Lithium Ion Battery (DCB230) MT-FV-DCB230
Request Pricing
DEWALT 20V MAX 3 Ah Lithium Ion Battery, 2-Pack (DCB230-2) MT-FV-DCB230-2
Request Pricing
DEWALT Single Battery Charger for Dewalt 20V Lithium Ion Battery (DCB115) MT-FV-DCB115
Request Pricing
Einhell 18V 3 Ah Lithium Ion Battery – EU, 2-Pack MT-FV-MGN3-A500-1
Request Pricing
Einhell Li-ion Single Battery Charger - EU MT-FV-MGN3-A600-1
Request Pricing
