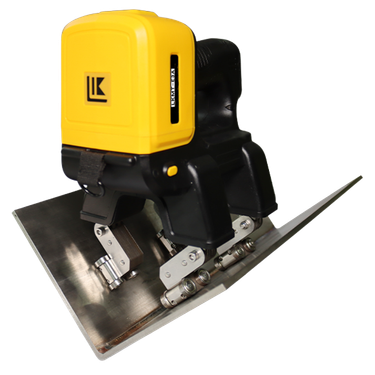

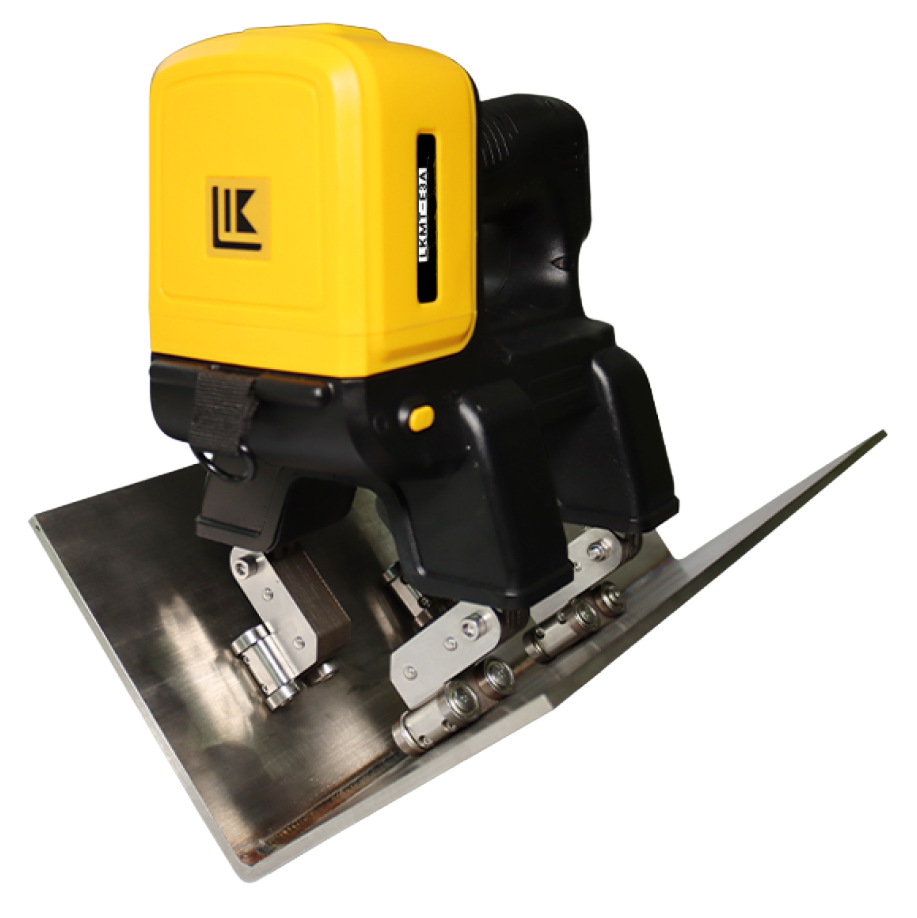

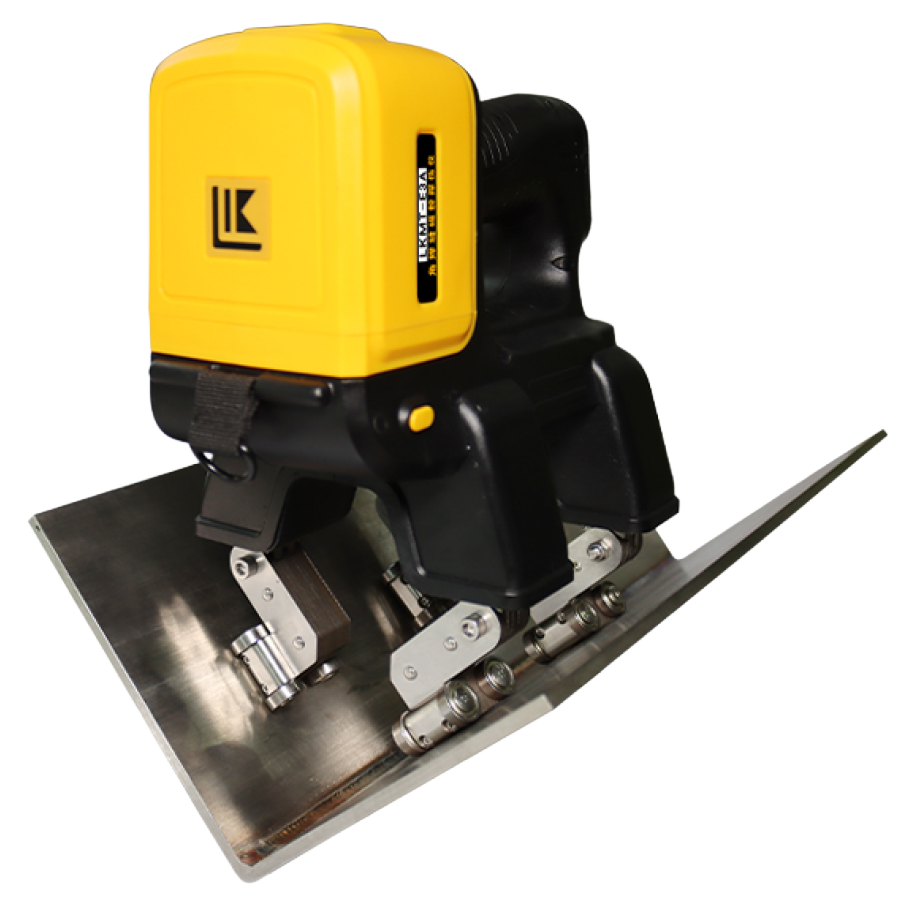

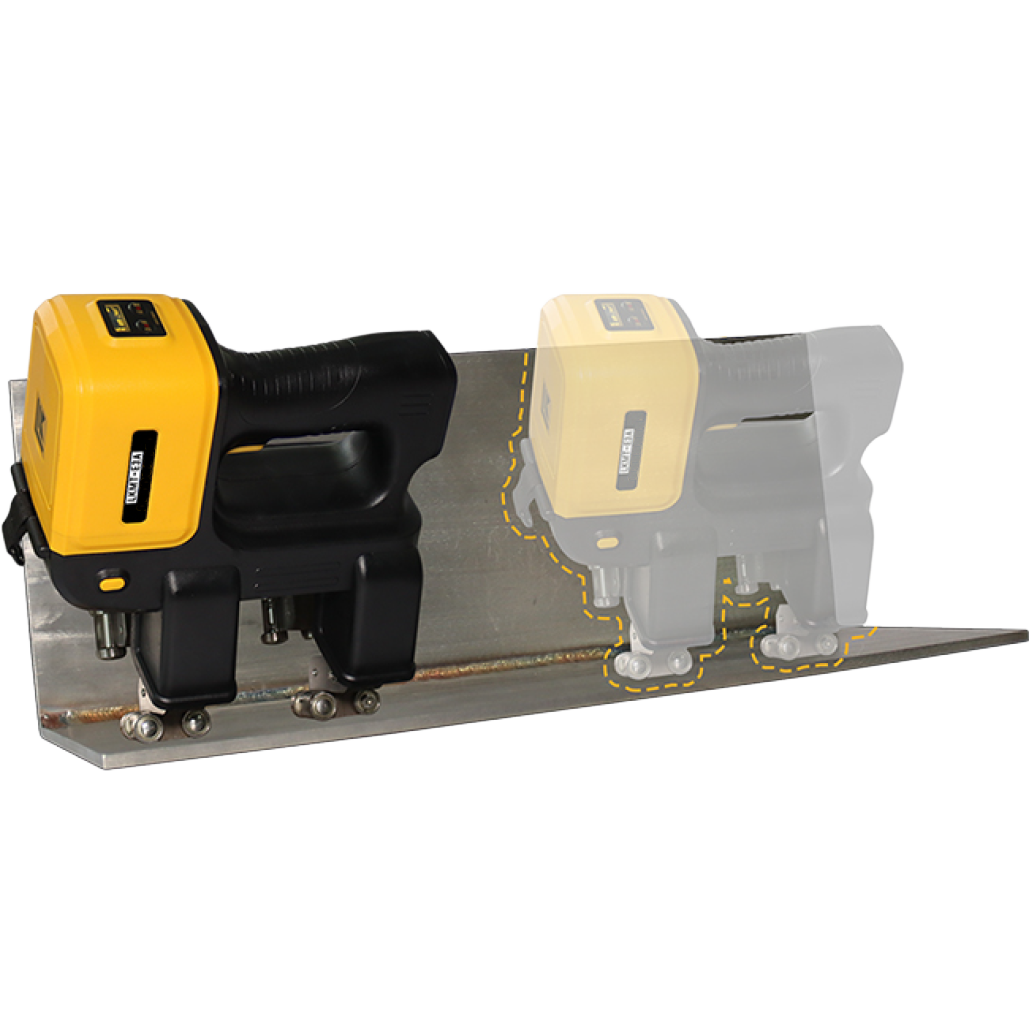

Ideal for Magnetic Particle Inspection of Angle Welds between 60° – 130°

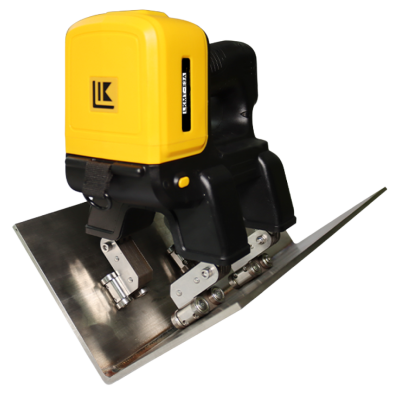

Luke LKMT-E3A
Li-Ion Battery AC Electromagnetic Cross Yoke
|
3.9" x 3.9" Leg Distance
|

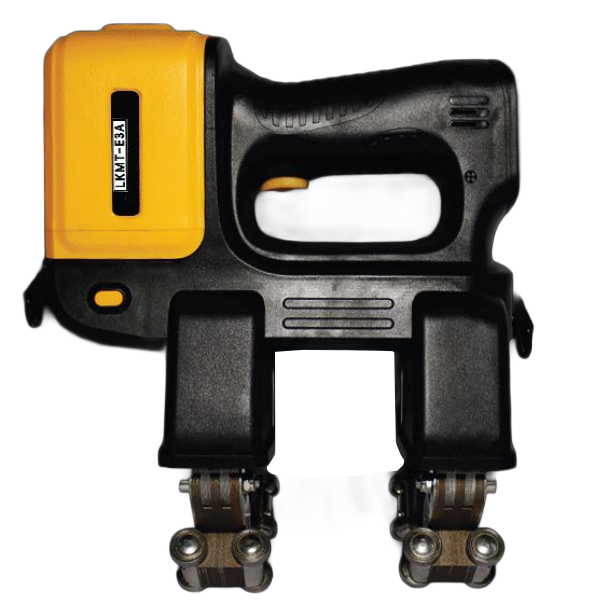

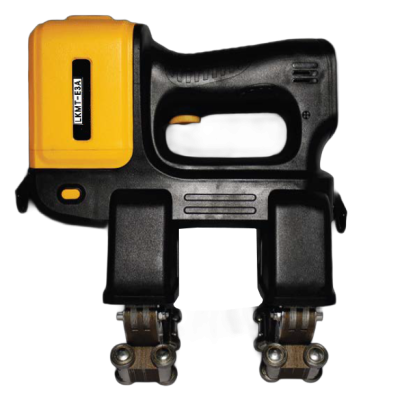

White Light: ≥ 186 ft candles (2,000 Lux)
|

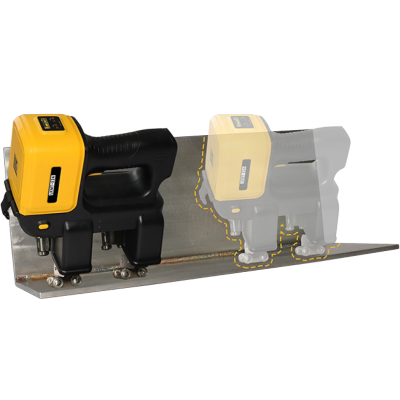

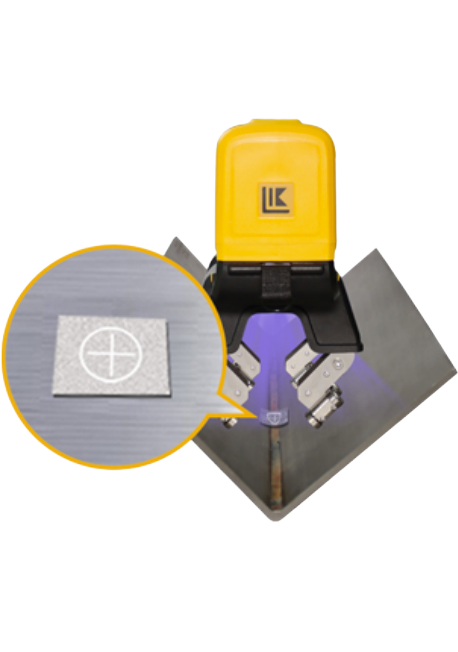

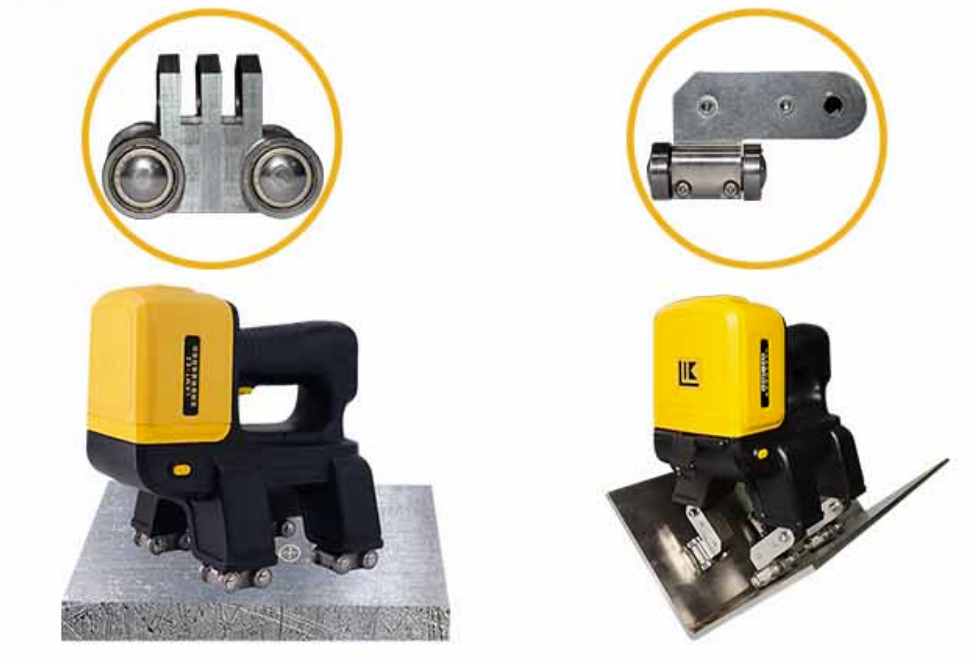

The magnetic pole angle can be changed from 60°–130° depending on the geometry of the inspection piece
| LKMT-E3A — Technical Specifications | |
| Yoke Dimensions: | 7.9" x 5.6" x 7.7" (200 x 143 x 196 mm) |
| Yoke Weight: | 7.9 lbs (3.6 kg) |

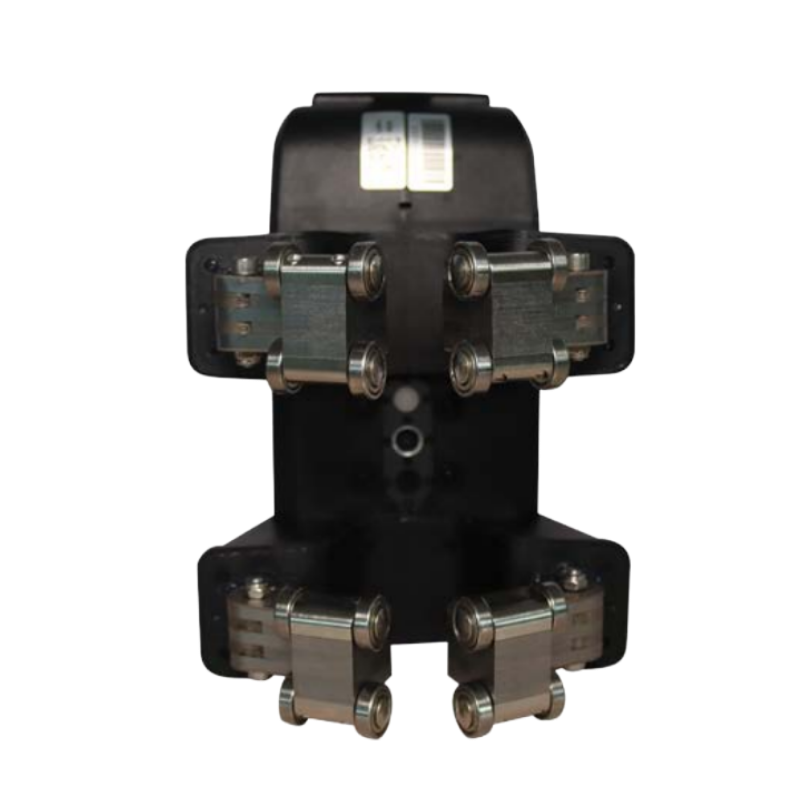

| Leg Distance: | 3.9" (100 mm), angle range 60°–130° |
| Contact Size: | 1.1" x 0.7" (28 x 19 mm) |
| Li-th Battery AC Bank: | Power Bank included — 3.5" x 2.8" x 4.1" (90 x 70 x 105 mm) / 1.4 lbs (0.6 kg) |
| Li-th Battery: | Battery included, built-in — 88.8 Wh / 14.8 V |
| Yoke Cable: | None — integrated design |
| Duty Cycle: | 50%, max on time 10 minutes (600 s) |
| Operating Time: |
2h normal operation |
| Full Max Working Environment: | ≤ 104°F (40°C) |
| Compliances: |
CX-230 QQI |
| Lift Power: | Battery AC: ≥ 35.3 lbs (16 kg) / 156.8 N |
| Magnetic Field Strength: | One cross yoke @ 3.9" (100 mm) leg distance: 25.0 Gauss (2.50 mT / 2.00 kA/m) |

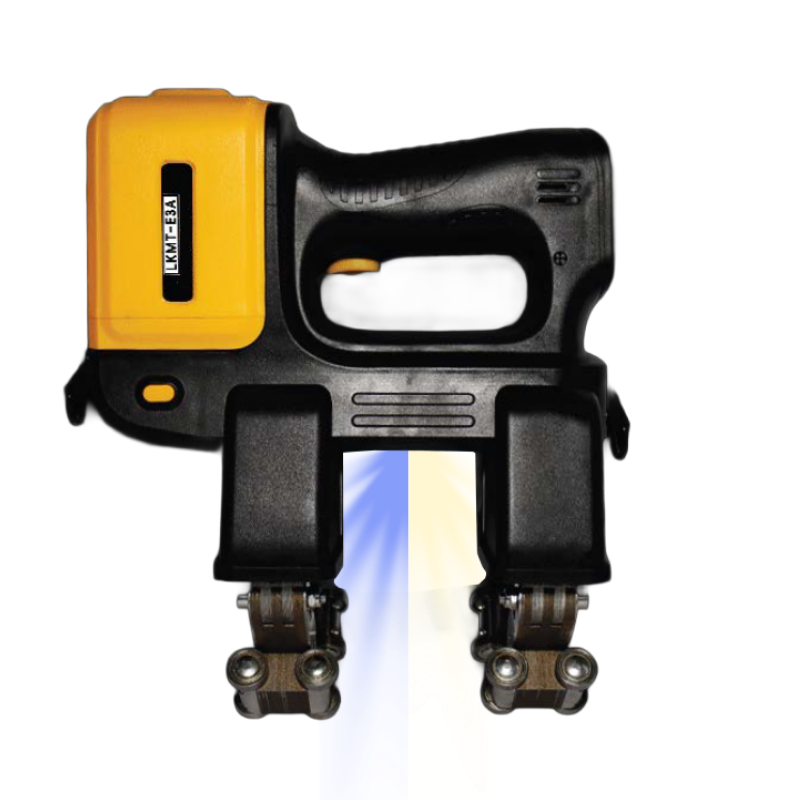

| Illumination: | White Light: ≥ 186 ft candles (2,000 Lux) UV Light: ≥ 6,000 µW/cm² |
| Camera: | Optional; 500 Megapixel |
To request a quote or purchase, please click below
|
|
