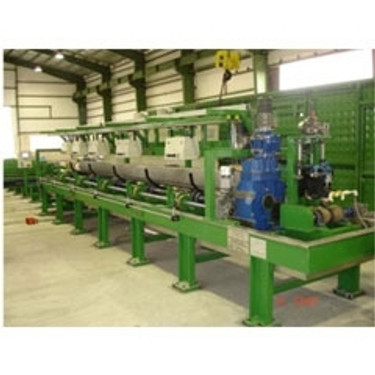

TMM MP 6000 AC

TMM MP 6000 AC

TMM MP 6000 AC

Task:

A bar is the last semi-finished intermediate step between the ingot and the finished shape.

The magnetic particle inspection of bars requires a large unit be equipped to handle bars Ø20mm to Ø200mm and 2.7m to 6.5m long.

Solution:

This system is specifically for the use of detecting surface and near surface discontinuities (longitudinal and inclined) in ferrous bars in sizes from Ø20mm to Ø200mm squared, using the contact magnetic particle wet inspection method.

The system has 8 sections:

  • Charging Table
  • Ultrasonic Test Conveyor
  • MP Test Unit
  • Waiting Table for Grinding
  • Grinding Conveyor
  • Good Bars Pocket
  • Bad Bars Pocket
  • Transfer Conveyors
 tmm-mp6000ac

tmm-mp6000ac

tmm-mp6000ac

tmm-mp6000ac
Charging Table and Entrance Conveyor		 tmm-mp6000ac
Conveyor
tmm-mp6000ac
Waiting Table for Grinding		 tmm-mp6000ac
Grinding Conveyor
tmm-mp6000ac
Bad Bar Pockets		 tmm-mp6000ac
Good Bar Pocket
Description Part # Saved Price Select Option Add to
MP 6000 AC Online Round Bar Test Bench MT-TMM-MP6000AC
