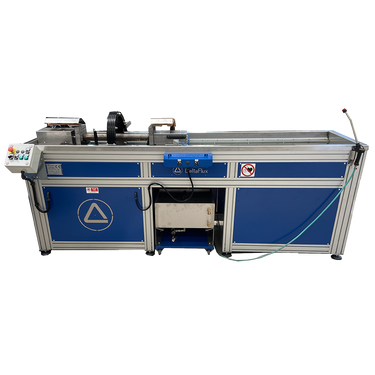

DeltaFlux ECO Magnetic Particle Testing Benches

DeltaFlux ECO Magnetic Particle Testing Benches

Overview

  • 2,000, 3,000 or 4,000 Amp
  • AC or AC & HWDC or AC & FWDC
  • AC Demag, HWDC & Rev. DC Demag optional
  • 12” Coil Standard, larger diameter options
  • Coil only option with swivel and part supports
  • 20” Standard Head Opening, 30”, 40” options +
  • 240V & 440V, 1 Phase, 60 Hz


Features



Frame

  • Frame is anodized modular aluminum construction
  • Door Panels are powder coated steel
  • Main tank for liquid collecting is 304 Stainless Steel
  • Particle Application: manual gun designed for either water or oil-based products
  • Recirculating Tank: 304 Stainless Steel for liquid mixing, mounted on a removeable cart with separate pump for uniform mixing of the inspection media. Recirculating Tank holds about 20 liters.



Control Panel:

  • Push buttons with two-hands command for Head-stock clamping
  • Button for test Start
  • Warning light for “Exam in progress” indication
  • Manual switch for magnetization selection (Head Shot or Coil)
  • Selector for magnetization/demagnetization
  • Potentiometer for the test current adjustment
  • Analog ammeter for display of applied current
  • Potentiometer for the shot time setup

Recycling Tank

  • 5 gallon
  • 304 Stainless Steel Tank for liquid mixing
  • Mounted on cart with separate pump for liquid mixing to keep the best uniformity of the inspection media.

Product Literature

Description Part # Saved Price Select Option Add to
DeltaFlux EVO Portable Mag Particle Bench MT-DF-EVOMPI
Request Pricing
DeltaFlux ECO Magnetic Particle Testing Benches MT-DF-ECOMPI
Request Pricing
