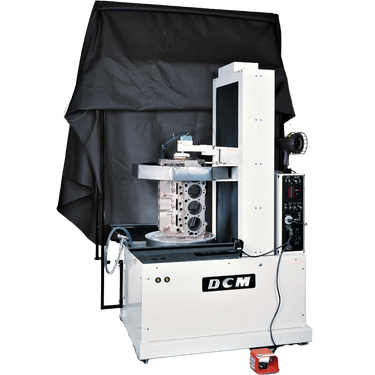

DCM's MPI 4830 is a specialized vertical format unit developed for production testing of blocks and other bulky workpieces. This vertical format magnetic particle inspection machine features a convenient rotary table and powered coil traverse so you can easily inspect the part.
| DCM Tech MPI 4830B Specifications | ||
| Coil Travel: | 42" (106.7cm) | |
| Coil Diameter: | 30" (76.2cm)Diameter, 10,000 ampere turn | |
| Power Supply Output: | 3000 amp AC | |
| Electrical Requirements: | 230 V 1ph 100A | |
| Floor Space Required: | 46" x 78" (116.8 x 198.1cm) | |
| Shipping Weight: | 1200 lbs (544.3kg) | |
| Max Part Weight: | 800 lbs (362.9kg) | |
| Tank Capacity: | 10 Gallons | |
To purchase the 4830B Vertical MPI Bench, click below
