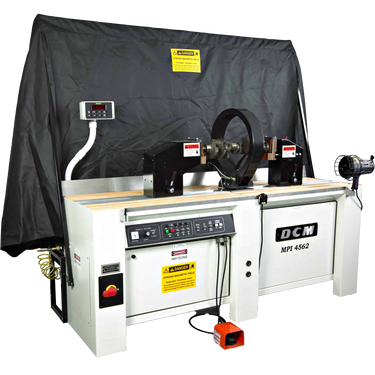

The MPI 4562 has AC/DC current capabilities for testing automotive performance crankshafts, aircraft components, and critical parts where subsurface flaw detection is required. Therefore the MPI 4562 is ideally suited for NDT work in applications where DC inspection is mandated.
For multiple inspection methods, the MPI 4562 comes with:
| DCM Tech MPI System, MPI 4562 Specifications | |
| Coil Diameter: | 16" (40.6 cm) |
| Cycle Output: | 5000 Amp FWDC 24,000 Ampere Turn Coil FWDC 4000 Amp AC 7500 Ampere Turn Coil AC |
| Max Part Length: | 62" (optional 100") (157.5 (optional 254 cm)) |
| Electrical System: | 230 Volt, 1Phase, 100Amps |
| Optional: | 460 Volt, 1 Phase, 75Amps |
| Capacity: | 500 lbs (226.8kg) |
| Floor Space required | 36" X 86" (91.4 x 218.4) |
| Weight: | 1500 lbs (680.4kg) |
| Tank Capacity: | 10 Gal |
