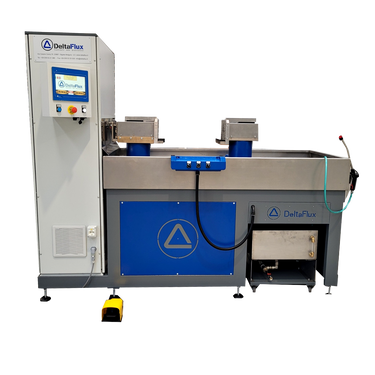

The DeltaFlux MB 50-70-100 FE PBM uses a “rotating field” for one-shot crack detection in small to medium size production parts.
Machines are offered in 3 standardized sizes so you don't have to buy a bigger machine when you don't have to. Standard sizes are:
The Operator Panel stores magnetization settings for inspection of your common parts
The particle bath tank and pump are separate for ease of cleaning and service.
3,000 amp AC is standard with HWDC optional.
| Property | Magnetic Bench | Magnetic Bench | Magnetic Bench |
| Art. no. | DF MB 50 FE PBM | DF MB 70 FE PBM | DF MB 100 FE PBM |
| Indicative Dimensions (HxWxL) |
41 x 31 x 59 inches 1050 x 800 x 1500 mm |
41 x 31 x 67 inches 1050 x 800 x 1700 mm |
41 x 31 x 79 inches 1050 x 800 x 2000 mm |
| High Performances Operator Panel | Yes, 10" (25.4cm) | ||
| Recipes | Yes | ||
| Report | Yes | ||
| Remote Connection | Yes | ||
| Current Supplied | AC / HW DC | ||
| AC Circular Magnetization (Peak) | 3.000 A | ||
| AC Longitudinal Magnetization | Yes | ||
| DC Circular Magnetization (Peak) | 3.000 A* | ||
| DC Longitudinal Magnetization | 35.000 A/Sp | ||
| AC Demagnetization | Yes | ||
| DC Demagnetization | Yes | ||
| Liquid Application System | Yes | ||
| Optional Accessories |
| COMPACT Frame Solution |
| Safety Footswitch |
| Operator Panel Features Upgrade |
| Magnetization |
| DC Demagnetization |
|
Power Supply Increasing (up to 4,000 A): Circular Magnetization: - DC Supply: 35,000 A/Sp |
|
Power Supply Increasing (up to 6.000 - DC Supply: 35,000 A/Sp |
| Additional Coil: for Longitudinal Magnetization (AC/DC) |
| Openable Dark-Room: This solution is available also with servo-assisted movements |
| UV Portable Lamp |
| UV Stationary Lamp |
| Fixed support for Lamp |
| Adjustable Support for Lamp: This solution is available also with servo-assisted movements |
To purchase or inquire about the Multi-Directional MB 50-70-100 FE PBM, click below
