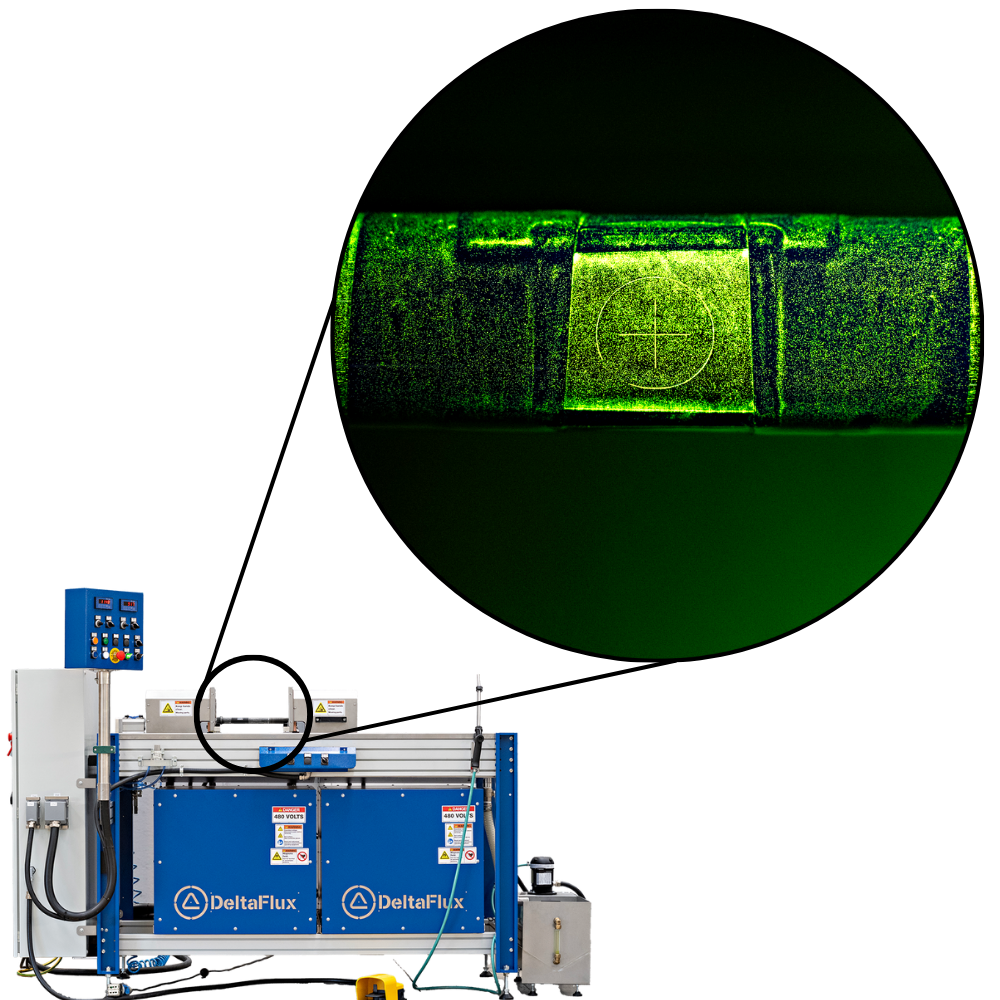

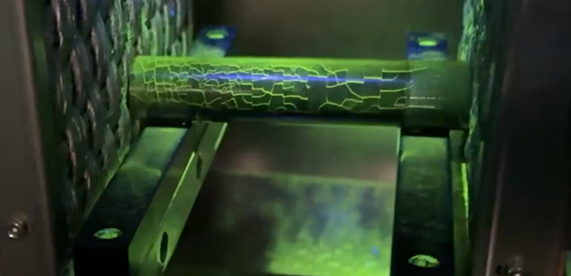

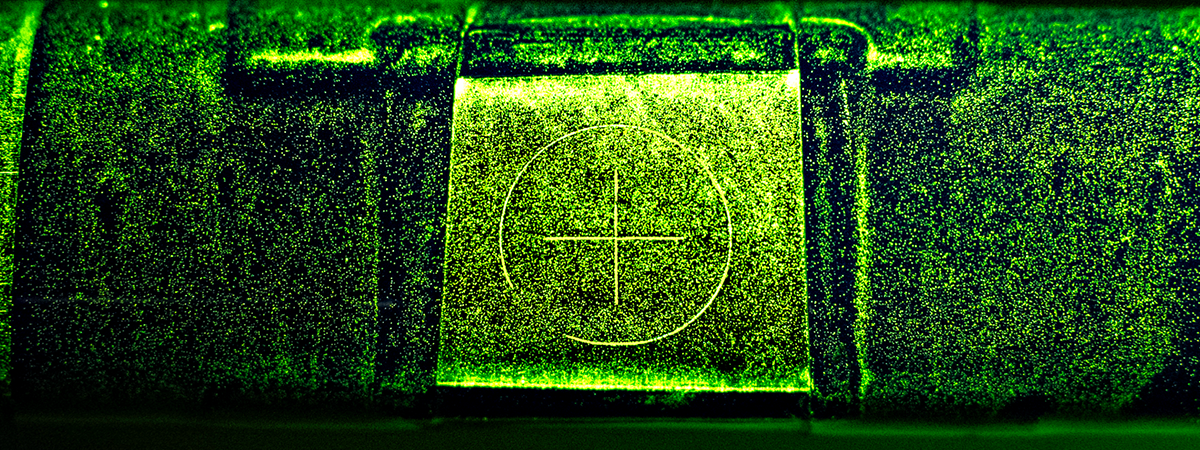

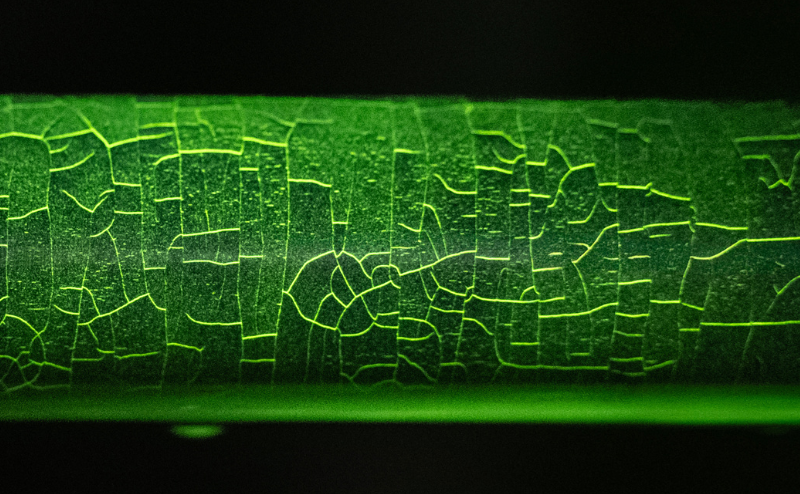

Detects longitudinal and transverse cracks in one operation
|
 |
Magnetizing modes:
Amperage:
Size:
Demag:
Customizable Design Code Compliant |

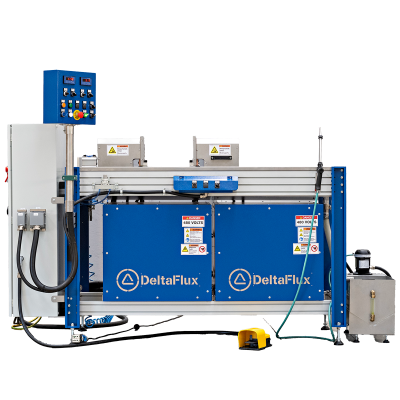

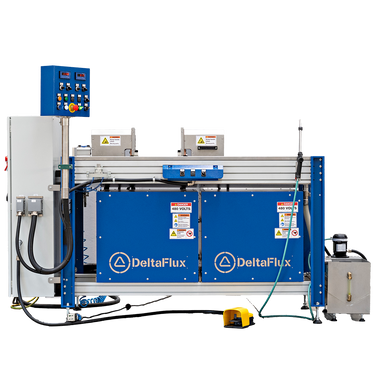

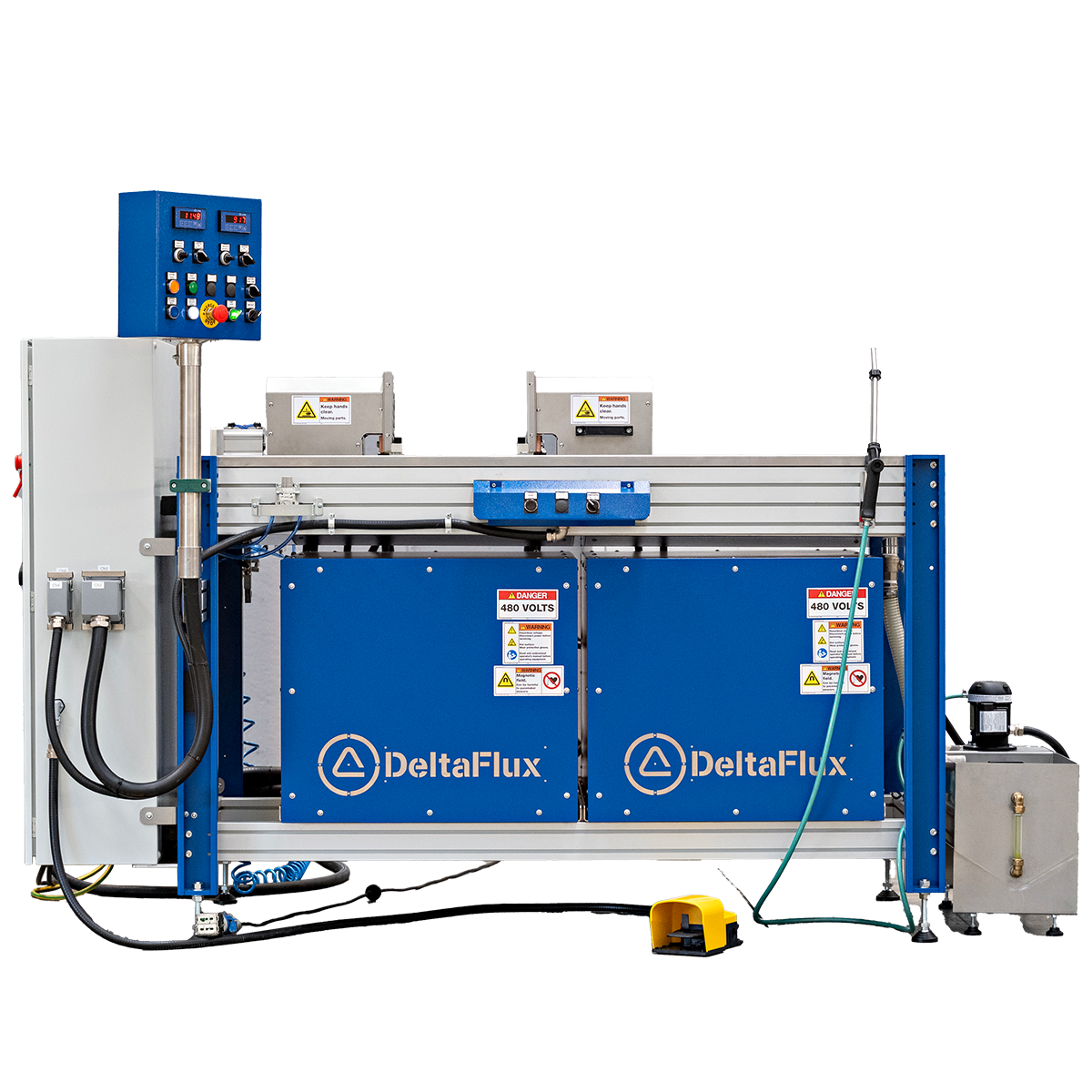

The Delta Flux ECO BOLT (Model DF M B ECO BOLT) is an economical, multidirectional magnetic particle inspection system designed for fasteners and small parts. Its multidirectional capability allows simultaneous detection of longitudinal and transverse flaws, ensuring high-quality inspection performance. With AC, HWDC, or FWDC current options and a modular stainless steel and aluminum frame, the ECO BOLT is engineered for durability, flexibility, and consistent inspection results.

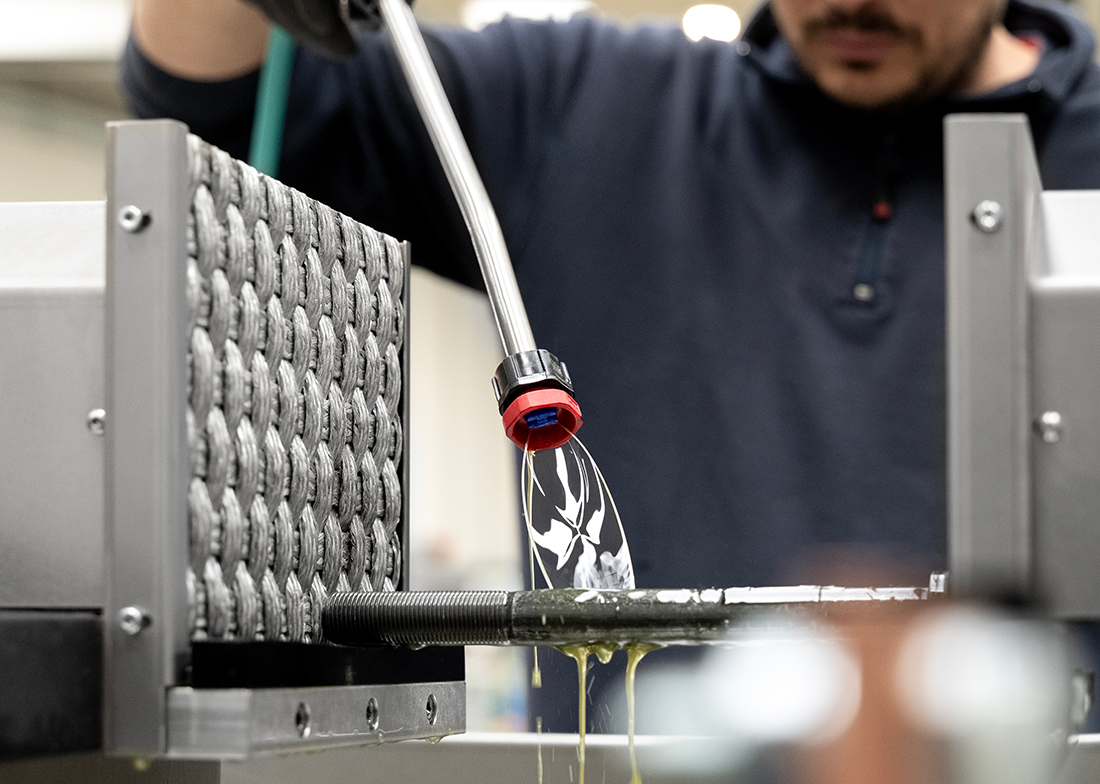

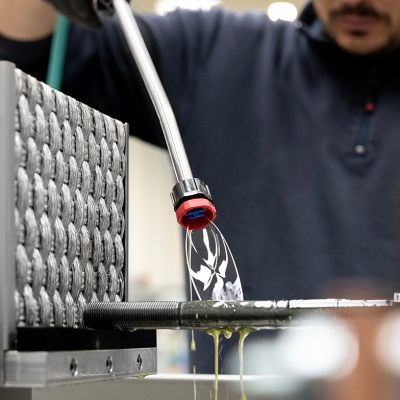

The ECO-BOLT is specifically designed for bolt and fastener MPI. Other applications include:
To inquire about the DeltaFlux ECO-BOLT or a similar design, click below
| DeltaFlux ECO-BOLT Technical Specifications |
|
| Head Opening: | 20", 30", or 40" (50.8, 76.2, or 101.6 cm) |
| Current: | AC, HWDC, or FWDC |
| Power: | 2,000, 3,000 or 4,000 amp |
| Construction: | Modular Aluminum & 304 S.S. |
| Panels: | Powder Painted Steel |
| Capacity: | 220 lbs (50 kg) |
| Head Space: | 2.4" (60 mm ) - 20" (510 mm) / 27" (710 mm) 39" (1010 mm) |
| Pneumatic: | 5 bar (87 psi) |
| Media: | Water or Oil (specify) |
| Current Intensity: | 200 – 2,000 A AC Standard |
| Demagnetizing: | Yes: AC or HWDC Demag |
