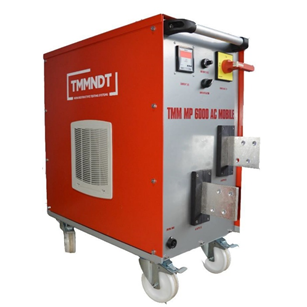

TMM NDT MPI Mobile Power Supplies

TMM NDT MPI Mobile Power Supplies

Models



  • TMM MP 2800 - AC & HWDC Mobile (A) 2000 AC and 1400 HWDC
  • TMM MP 4000 - AC & HWDC Mobile (B) 2800 AC and 2000 HWDC
  • TMM MP 6000 - AC & HWDC Mobile (C) 4200 AC and 3000 HWDC

Technical Specifications

TMM MPI Power Supplies Specifications

  • Field Flux Wrap Magnetization: AC & HWDC Rigid Coil or Cable
  • Current Flow, Directly: AC & HWDC High Current Magnetization
  • Current Flow, Central Conductor: AC & HWDC High Current Indirect Magnetization
  • Current Control: Electronic, step-less. This manual test unit will be able to work for 24 hours, 7 days a week.
  • Duty Cycle: 60%
  • Power Consumption: ~ 20kVA / ~ 30kVA / ~ 50 kVA
  • Power Cable: 5 meters (with 3P+N+PE socket)
  • Demagnetization: Automatically
  • High Current Cables: 120 mm2 cross section area, 10' (3 meters) length and 2 pieces
  • Dimensions: ~ 24" x 32" x 40" (600 x 800 x 1000 mm)
  • Weight: ~ 440 lbs. / 660 lbs. / 990 lbs. (200 kg (A) / 300 kg (B) / 450 kg (C) without cables)
  • Mains: 480VAC, 1-Phase AC, 60Hz
