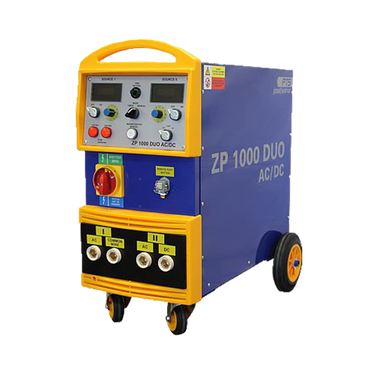

PTS ZP Duo Dual MPI Power Supplies

PTS ZP Duo Dual MPI Power Supplies

Magnetizing Dual Source Power Supplies for Multi-Mode Testing

Dual Magnetizing Current Sources

The ZP Duo Series Power Supplies contain two identical sources which can be used for current pass magnetization and for coil magnetization. The PTS ZP MPI Power Supplies can be switched on separately or together (phase separated).

  • Both sources have their own regulation and current measurement.
  • Switching the output is done either manually, using a button or a foot switch.
  • It is possible to choose between manual operation or time-switched operation (1 to 10 seconds).
  • Current regulation is by means of a Thyristor regulator.
  • Demagnetization is automatic each time the power is turned off.
  • Auxiliary output socket for connecting a UV lamp and pump.



Six Models To Choose From:

  • ZP1000 Duo - 1000A AC + 600A AC (for the coil)
  • ZP1500 Duo - 1500A AC + 1000A AC (for the coil)
  • ZP2000 Duo - 2000A AC + 1500A AC (for the coil)
  • ZP2000 HDC Duo - 2000A AC + 1500A AC (for the coil) / 1300A HWDC + 970A HWDC (for Coil)
  • ZP3000 Duo - 3000A AC + 1500A AC (for the coil)
  • ZP4000 Duo - 4000A AC + 2000A AC (for the coil)

A ZP Series Power Supply shown here in use with an MAS Series inspection bench

Product Literature

Description Part # Saved Price Select Option Add to
ZP 1000 DUO dual power source 1000A AC + 600A AC (for the coil). With timer. 460VAC/60Hz MT-PTS-ZP1000-AC-DUO
Request Pricing
ZP 1500 DUO dual power source 1500A AC + 1000A AC (for the coil). 460VAC/60Hz MT-PTS-ZP1500-AC-DUO
Request Pricing
ZP 2000 DUO dual power source 2000A AC + 1500A AC (for the coil). 460VAC/60Hz MT-PTS-ZP2000-AC-DUO
Request Pricing
ZP 2000 HDC DUO dual power source 2000A AC // 1300A HWDC + 1500A AC // 970A HWDC (for the coil). 460VAC/60Hz MT-PTS-ZP2000-HDC-DUO
Request Pricing
ZP 3000 DUO dual power source 3000A AC + 1500A AC (for the coil). 460VAC/60Hz MT-PTS-ZP3000-AC-DUO
Request Pricing
ZP 4000 DUO dual power source 4000A AC + 2000A AC (for the coil). 460VAC/60Hz MT-PTS-ZP4000-AC-DUO
Request Pricing
