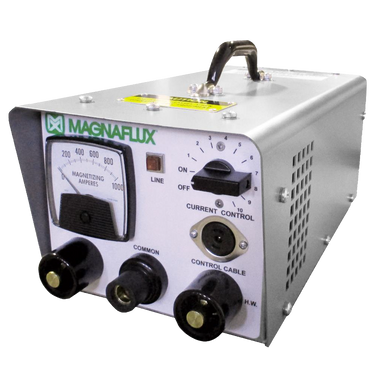

The P-70 is a portable power pack that is a convenient and economical inspection unit used in a wide range of magnetic particle applications that require only moderate power. It is ideal for inspecting large or heavy parts, in service mobile equipment or job site weld testing with magnetic particle NDT method. The P-70 finds surface defects with AC current and can switch cable connection to half wave DC (HWDC) for near-surface flaws. It locates defects in any direction using prods, central conductors and coils, by wrapping the part with 3 - 5 turns of the cable. Comes complete with a 15 ft. (4.5m) remote control cable.
| Max Output: | 750 Amps AC or HWDC |
| Current Output (single phase): | 115 VAC, 50/60 Hz |
| 230 VAC, 50/60 Hz | |
| Line Current: | 26 Amps @ 115 VAC |
| 13 Amps @ 230 VAC | |
| Max Duty Cycle: | 2 minutes ON, 2 minutes OFF |
| Dimensions: | 17.5" x 9" x 8" (44.5 x 23 x 19.1 cm) |
| Weight: | 35 lbs. (15.9 kg) |
626350-180: 15 ft. (4.6 m) Lugs at both ends
628832: Lug to Quick Connect Adapter Kit
628833-180: 15 ft. (4.6 m) 4/0 cable assembly with 628828 QC-F and 628829 QC-M quick connectors on each end
