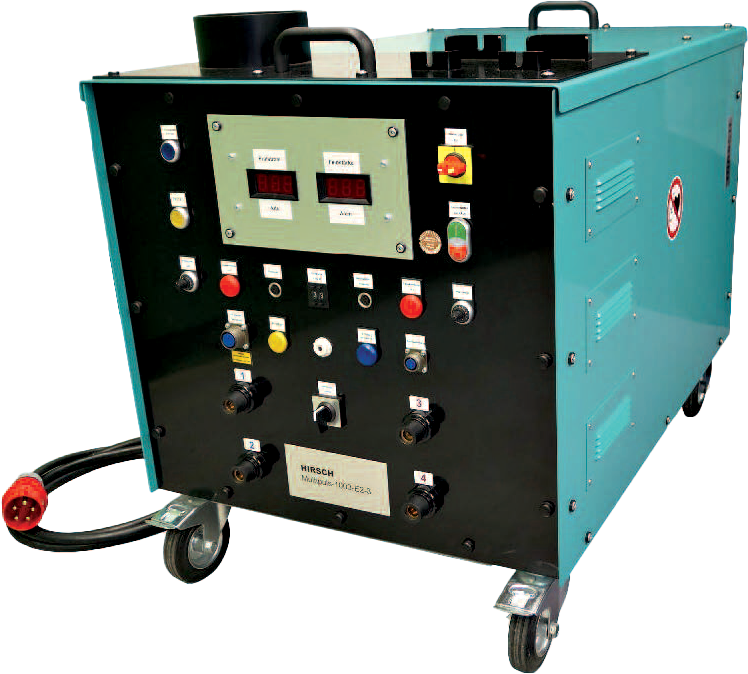

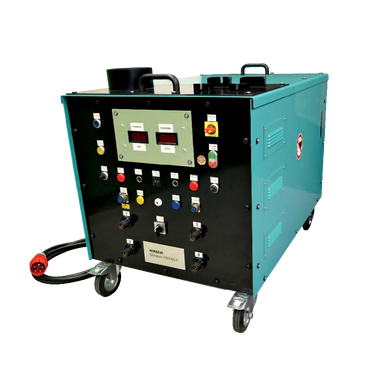

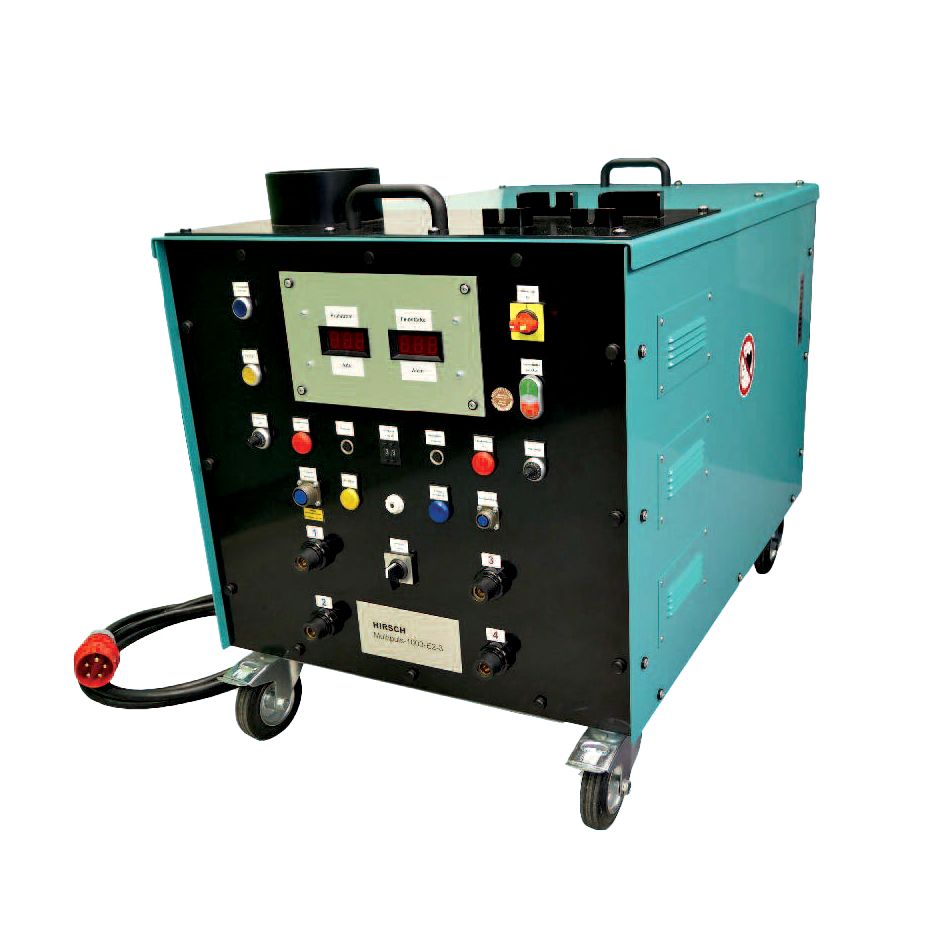

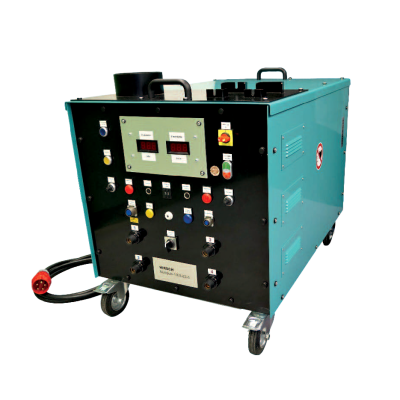

The Hirsch Multipuls 1003-E2-3 is a mobile dual-circuit AC/DC pulse testing unit designed for surface crack detection and demagnetization of steel components. It integrates magnetization, demagnetization, field measurement, and documentation functions into a single compact, wheeled system. The device is built to comply with EN ISO 9934 standards.
Sharp crack indication through AC/DC pulse magnetization
Clear crack indication already after 3 pulses
Dual electric circuit with alternating magnetization in two directions
Low weight
Single-hand operation via UV-LED lamp with remote control
Superimposed flood light for determination of false crack indications
Long service life and service intervals
Low consumption of test fluid and energy
Non-contact magnetization with double coil configuration
| Hirsch Multipuls 1003-E2-3 Technical Specifications | |
|---|---|
| Rated voltage: | 400 / 440 / 480* VAC, 50/60 Hz, 32 A |
| Rated power: | 7.0 kVA |
| Service cycle: | 70% |
| Testing current: | 500 A – 30,000 A |
| Field strength: | 20 A/cm – 80 A/cm |
| Pulse frequency: | 1 Hz |
| Post-magnetization time: | 1 – 99 |
| Demagnetization time: | 10 s – 3.5 min |
| Length of testing cable: | 9.84' (3.0 m) (or custom length on request) |
| UV-LED lamp: | Shock protected with superimposed flood light |
| Testing coils: | Available upon request |
| Dimensions (W × H × D): | 26.4" × 25.4" × 39.4" (670 mm × 645 mm × 1000 mm) |
| Weight: | 352.7lbs (160 kg) |
To purchase Hirsch Multipuls 1003-E2-3, please contact us here:
