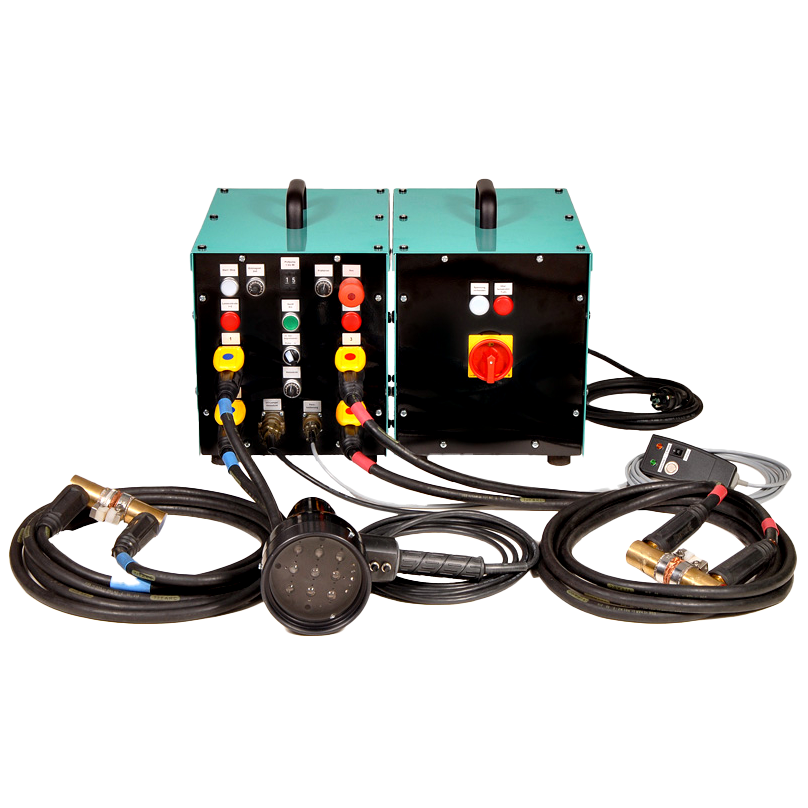

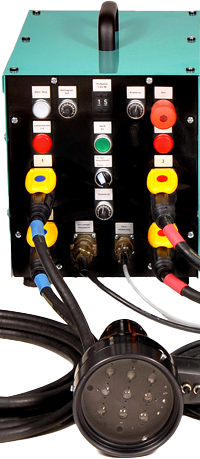

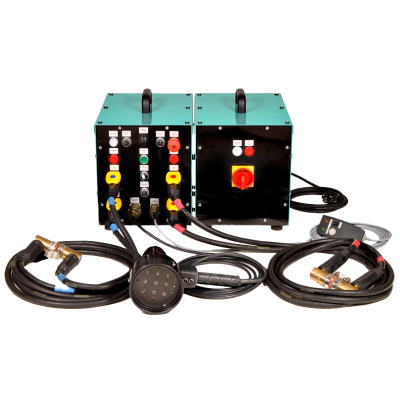

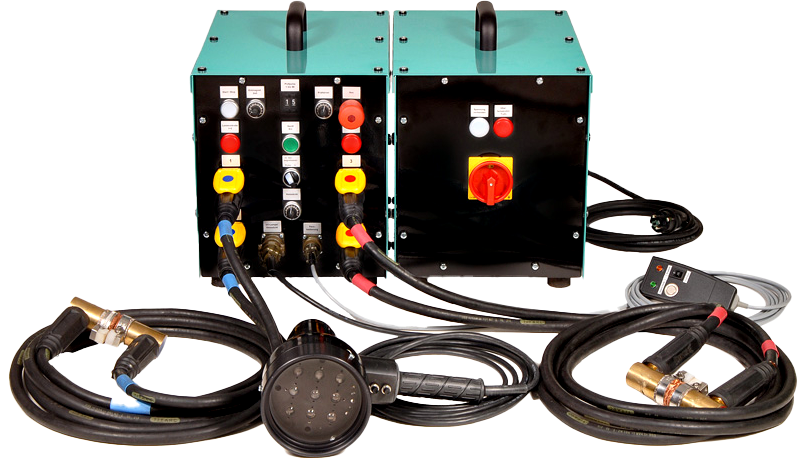

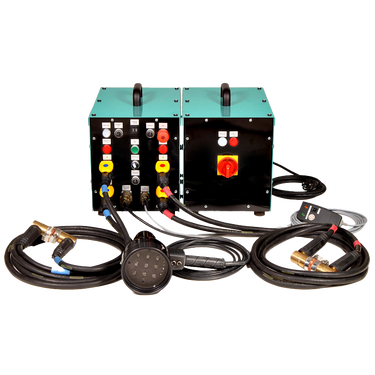

The Hirsch Multipuls-1003-C1 is a mobile direct current pulse testing unit designed for magnetic particle inspection and demagnetization of steel components. It provides an option for detecting both longitudinal and transverse cracks through alternating magnetization. The device incorporates two circuits, which allow the part under inspection to be magnetized in two directions during a single test cycle. This design helps ensure comprehensive inspection without additional setup steps.
| Hirsch Multipuls 1003-C1 Technical Specifications | |
|---|---|
| Power supply: | 230 VAC, 50/60 Hz |
| Power consumption: | 1250 VA |
| Duty cycle: | 50% |
| Test current: | 500 A – 8,000 A |
| Field strength: | 10 A/cm – 80 A/cm |
| Pulse frequency: | 0.5 – 1 Hz |
| Number of pulses for Remagnetization: | 1 – 99 |
| Demagnetization time: | 20 – 120 sec |
| Test cable length: | 9.8' (16.4' on request) ((3.0 m (5 m on request)) |
| UV-LED test lamp: | With white light, shock-protected |
| Coil cable: | Available on request |
| Dimensions W x H x L: | 10.2" x 12.6" x 14.2" (260 x 320 x 360 mm) |
| Weight: | 37.5lbs / 48.5 lbs (17 kg/ 22 kg) |
To purchase Hirsch Multipuls 1003-C1, please contact us here:
