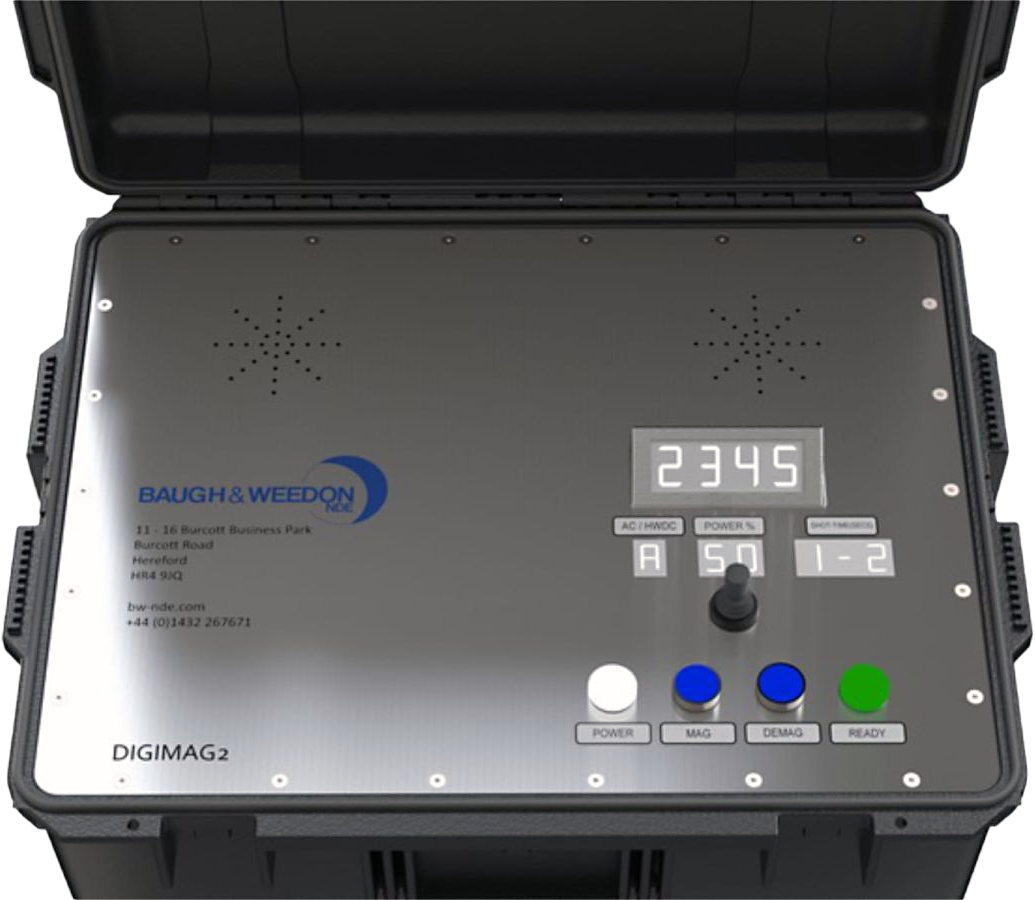

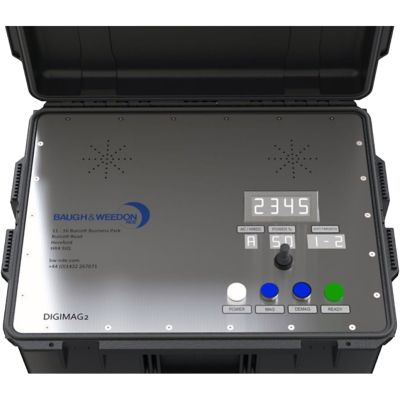

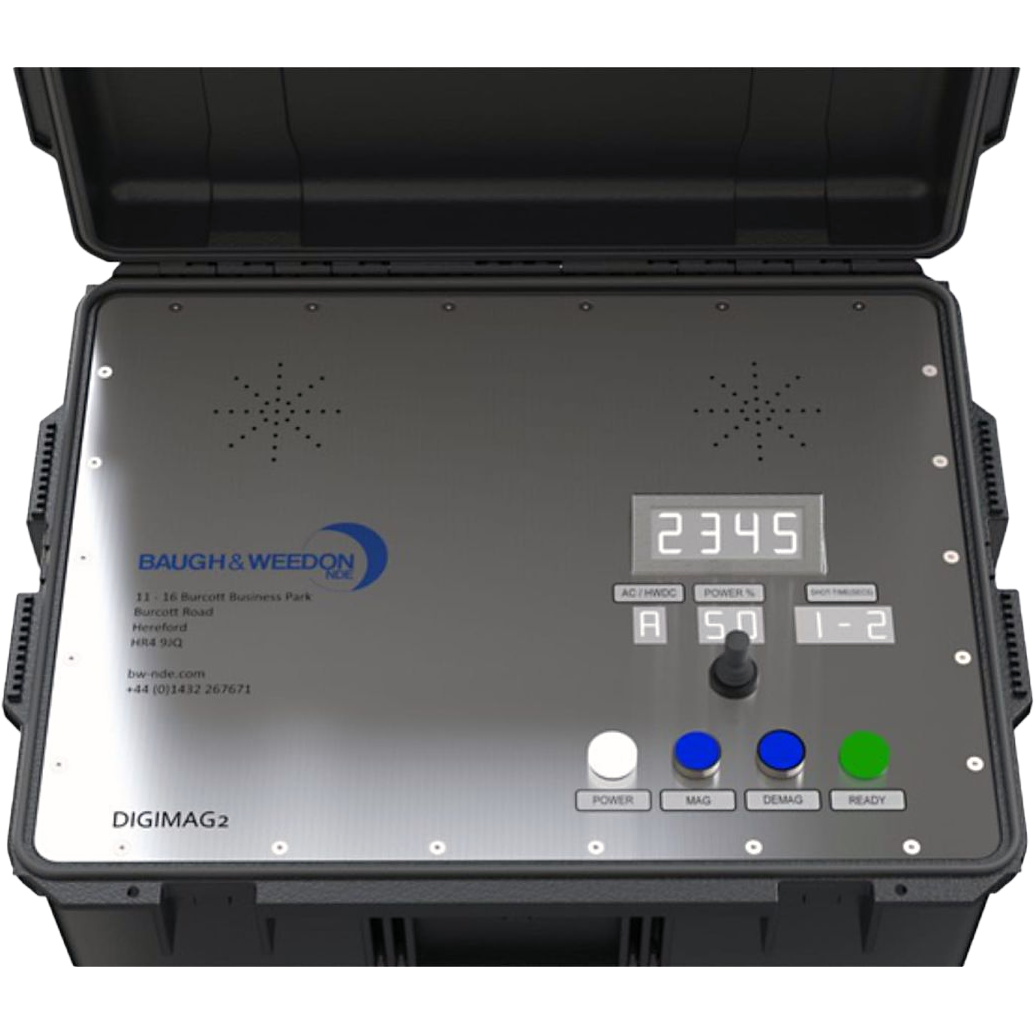

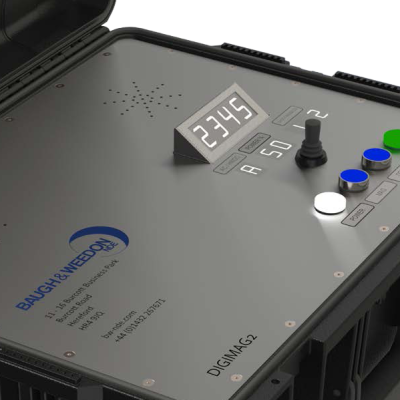

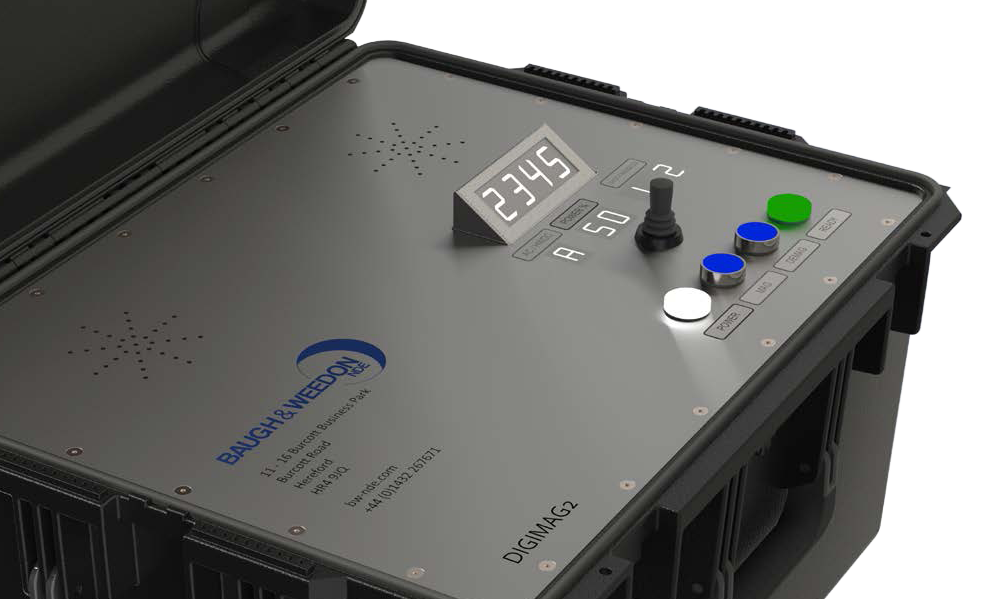

The DigiMag is delivered in a wheeled rugged case, ideal for hazardous environments, meaning it can be used anywhere there is access to a standard 240V mains output.
Ideal for parts that may be too heavy to be used on a bench or for those that have a complex geometry. The supplied 5m cable, which acts as a coil would on a bench, is wrapped around the part to be inspected, giving a strong output, reaching around 1000A RMS.
The Digimag 2 is ideal for parts that are too large or have a geometries that are too complex for conventional benches. Applications includes:
| Digimag 2 Technical Specifications | |
|---|---|
| Principle Of Operation: | MPI |
| Max AC RMS: | 1000 Amps |
| Cable Length: | 16.4' (5m) Custom lengths are available on request. |
| Cable Type: | 4.7" (120mm) Standard welding cable |

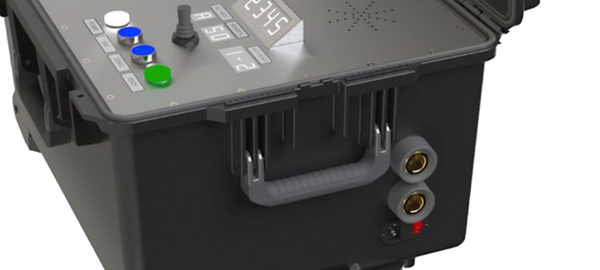

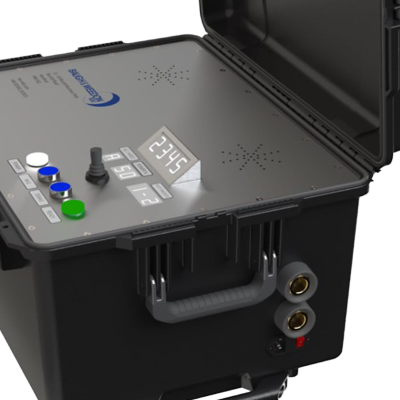

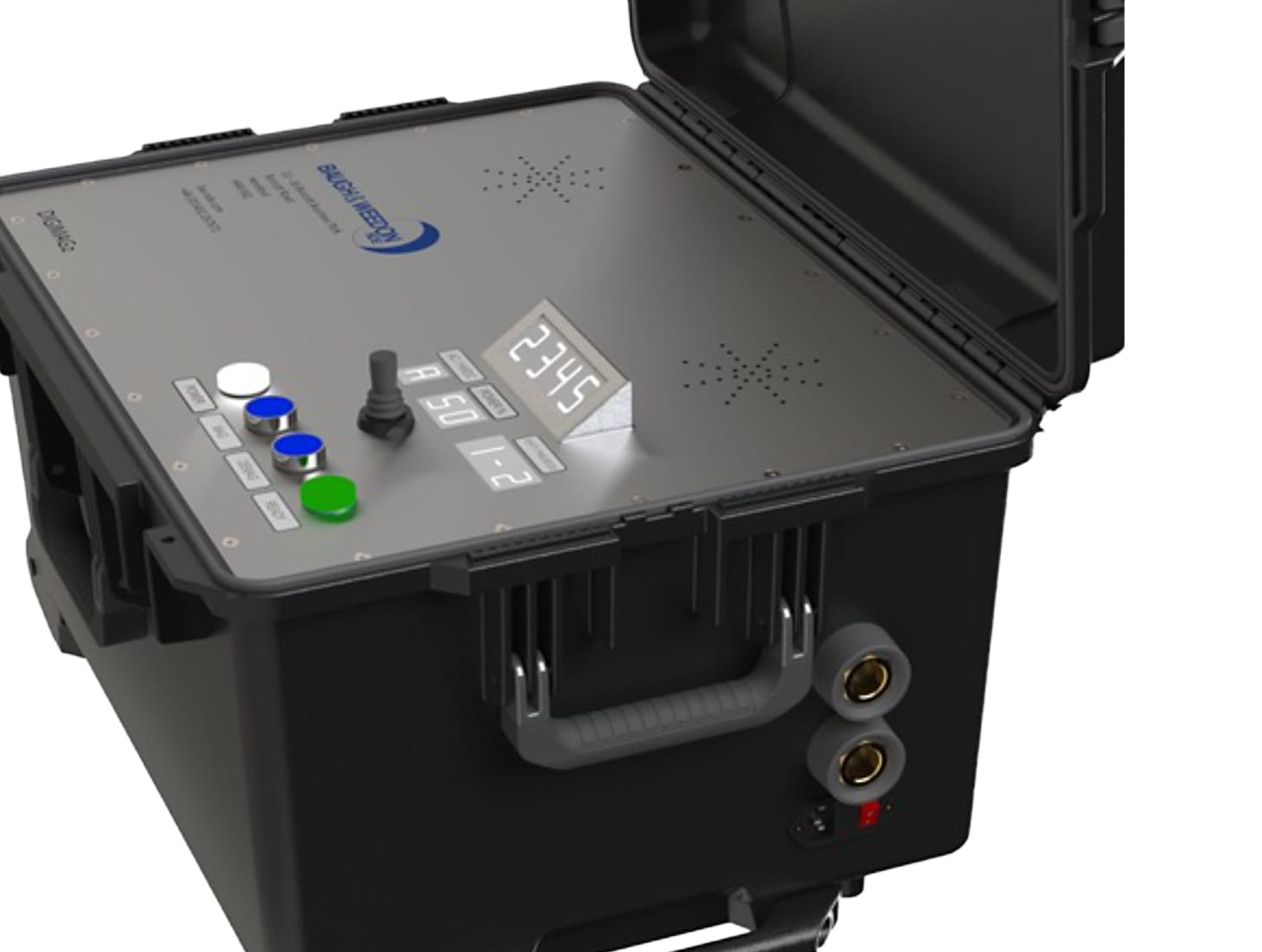

| Cable Connectors: | Standard Dinse connectors |
| Weight: | 88.2lbs (40kg) - Not including cables |
| Pelicase Dimensions: | 24.5 x 19.7 x 14.5 in (625 x 500 x 366 mm) |
