| SI-20KA Digital Panel Meter | MT-SI-SI-20KA-PM |
|
Request Pricing | ||

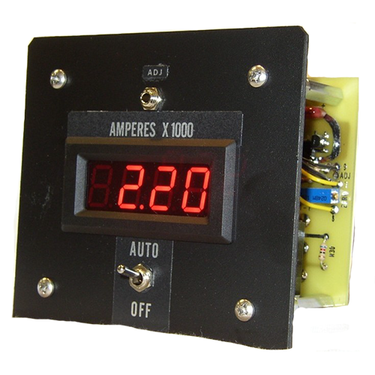

The SI-20KA Digital Panel Meter is designed to replace old Analog Ammeters that had 2.75" to 4" diameter mounting holes providing a greater accuracy of output amperes with infinite hold, auto reset and update functions that will meet or exceed all industrial and military requirements.
High visibility LED digital panel meters display output current in amperes. Each reading is held indefinitely for accurate recording of each shot in automatic mode. In manual mode, the panel meter takes current readings continuously. As each shot is taken the meter will automatically reset, compute and display the new reading is less than .5 seconds.
Standard Meters have average FWDC calibrated for operation from the existing 50mv / 1000 Amp meter shunt (or other value shunt) either in place of or in conjunction with your machine's meter. Meters are preset but final calibration depends on the accuracy of your existing meter shunt. An externally accessible gain adjustment is available for final calibration. They may be ordered for AC or FWDC signal input and different meter shunt ratings. AC/DC True RMS meters are also available.
| SI-20KA Panel Meter Specifications | |
| Basic Accuracy | DC .5%, AC 2% of reading +/- LSB counts |
| Range | 100 to 19,990 amps in 10 amp increments |
| DPM Display | 31/2 LED .56"(14mm) digit height |
| Conversion Time | 280msec |
| Auto Reset Time | 1 second |
| Signal Input | 50mv/1000A Meter Shunt standard |
| Input Impedance | 100 |
| Power Line Input | 90 to 120 VAC, 4VA, 50/60 Hz |
| Operating Temperature | 32 to 120°F (0 to 49°C) |
| Dimensions | 4" x 4.3" x 2.5" (102 x 109 x 64mm) (HxWxD) |
| Weight | 8 oz. (227g) |
