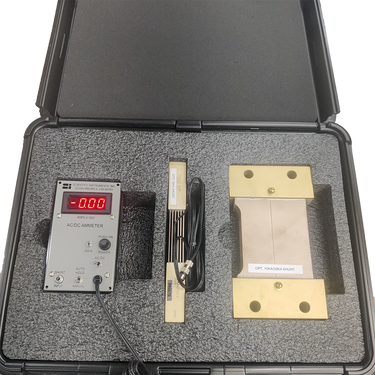

SI-20KA-CERT Digital Certification Ammeter

SI-20KA-CERT Digital Certification Ammeter

Open Head Testing Via Continuous Standby Readings - True 0.0.0 Readings on Standby Magnetization!

Overview

SI-20KA-CERT Digital Certification Ammeter is designed to provide a low cost, high accuracy display of output kilo amperes with infinite hold, auto reset and update functions that will meet or exceed all industrial and MIL specs.

This ammeter is AC/DC and HWDC capable.

Features

  • Meter calibration adjustments for zero and gain
  • AUTO HOLD/MANUAL switch
  • Holds last reading or can perform continuous readings, for very low current readings below 50 amps
  • LED Display, 3 1/2 digits, 19.99KA
  • Hi Accuracy, True RMS AC converter
  • Hi accuracy, DC average circuit assures correct displayed value regardless of which DC waveform is being recorded,1ph hw dc,fw dc, 3ph fwdc
  • AC power with included cord,no batteries to replace
  • Shunt input jack with hi accuracy(0.2%) shunt
  • Comes with cert and 5-year warranty
  • Shunt Triggered

Open Head Testing

The SI-20KA has a switch that allows it to take readings at high, or even zero AMPs. This allows the user to achieve a '0.0.0' on the Ammeter. To do this, the mag unit needs to be on standby with nothing clamped between the heads, and front panel selector is on the 'Contacts' position. Then push the 'Mag' button 10 times. The final digit should read as zero, or, '0.0.0'.

If the final digit change from zero to some other value, i.e., 0.0.1 (10 AMPs), then there is a short from headstock to frame.

Technical Specifications

Technical Specifications

SI-20KA-CERT Digital Certification Ammeter Technical Specifications
Basic Accuracy:

DC error less than 0.5 % of reading

AC error less than 2% of reading +/- 2 lsb count

Range = 10 to 19,990 amperes, in 10 amp increments
DPM Display: 3 ½ LED .56” (14mm) digits
Conversion Time: 280msec
Auto Reset Time: 1 second
Signal Input: 50mv/1000A Meter Shunt
Input Impedance: 100Ω
Power Line Input: 90 to 140 VAC, 4VA 50/60Hz, 220 VAC version also available
Operating Temperature: 41 to 113°F (5 to 45°C)
Dimensions HxWxD :  4 x 3.5 x 2.5 inches (10.2 x 8.9 x 6.4cm)
Weight: 8oz (227g)

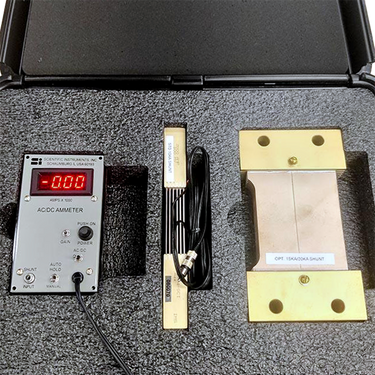

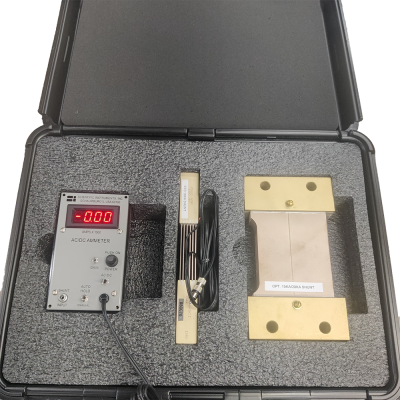

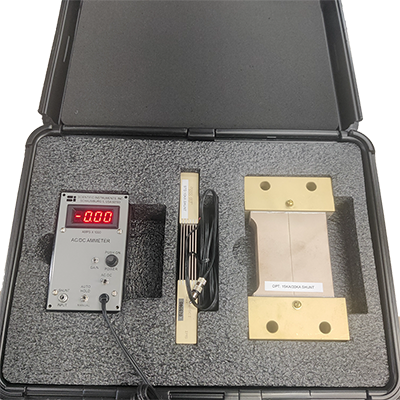

Kit Includes

  • SI-20KA-CERT Digital Certification Ammeter
  • 10KA Shunt
  • Molded, Foam-Lined Carry Case

Product Literature

Description Part # Saved Price Select Option Add to
DIGITAL SI-20KA AC/DC Ammeter/Shunt Certification Kit - 90 to 140 VAC MT-SI-20KA-CERT
Request Pricing
DIGITAL SI-20KA AC/DC Ammeter/Shunt Certification Kit - 220 VAC EURO Type MT-SI-20KA-CERT-220
Request Pricing
Certification Only of DIGITAL SI-20KA AC/DC Ammeter/Shunt Certification Kit - 90 to 140 VAC MT-SI-20KA-CERT-1
Request Pricing
Scientific Instruments Optional 20K Certified Shunt MT-SI-20KA-Shunt
Request Pricing
