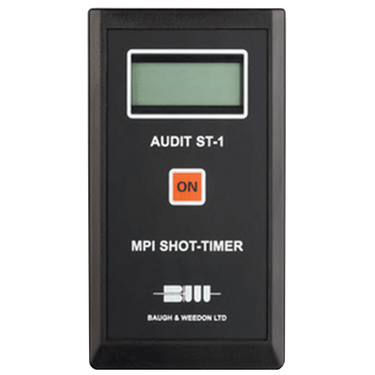

Baugh & Weedon Audit ST-1 MPI Shot Timer

Baugh & Weedon Audit ST-1 MPI Shot Timer

A precision hand-held electronic timer specifically designed to check timer controls fitted to MPI benches.

Handheld Electronic Timer fitted to MPI Benches

The Audit ST-1 is a precision hand-held electronic timer specifically designed to check timer controls fitted to MPI benches. To maintain product quality it is important that every aspect of an inspection system is monitored regularly. The performance of an MPI system is dependent on a number of parameters, each of which must be within acceptable procedural limits. Where magnetizing equipment is fitted with a timer to control shot duration, it must be calibrated on a regular basis, usually to an accuracy within +/- 0.1sec.



Features:

  • Precise hand-held electronic timer specifically designed to check timer controls fitted to MPI benches.
  • Operates equally for current flow, coil and flux flow magnetizing methods.
  • Can accommodate dual shots, recording both the first and second shot times and the duration of the rest interval.

  • Shot Display:
    • Audit ST-1 displays the shot duration for current flow, coil and flux flow with selectable resolutions of either 0.1s or 0.02s. Additionally the magnetizing waveforms are indicated, “A”=AC, “H”=HWDC, “F”=FWDC.
  • Easy to Use:
    • Simply press the ON button and the instrument operates at the 0.1s resolution. Press and hold the ON button and it operates at the 0.02s resolution.
    • Audit ST-1 is held in-line with the magnetizing coil or a current flow component and the shot performed and displays the shot duration and the waveform code as described.

    • Then briefly press the ON button to reset the instrument.

    • Audit ST-1 will shut down automatically after 60s of inactivity.

  • Versatile:

    • Audit ST-1 can also measure two successive shot times and the rest interval ( up to a maximum of 4 seconds), on dual-shot equipment.

  • Is fully calibrated using equipment traceable to National Standards.

Technical Specifications

Audit ST-1 Specifications

General: Audit ST-1 is a microprocessor controlled precision instrument housed in a rigid injection molded plastic case, with front panel membrane ensuring excellent environmental protection.
A magnetic field with a strength of 20mT (200 Gauss) or more.
Trigger: 0.02 seconds to 9.98 seconds
Range: 0.1 seconds or 0.02 seconds
Resolution: 0.1 seconds or 0.02 seconds
Accuracy: Dependent upon resolution selected
Battery Type: One (1) PP3
Low Battery Threshold: 6.5V Approx.
Auto-Shutdown: After 60 seconds
Display: 4 Segment LCD
Dimensions: 3.2" x 6" x 1.4" (81.28 x 152.4 x 35.56 mm)
Weight: 0.52 lbs. (0.24 kg) including battery

Audit ST-1 Kit Includes:

  • Audit ST-1 Unit
  • Carrying Case
  • Operating Instructions
  • 2 Year Comprehensive Guarantee

Note: A $35.00 consolidation fee applies, goods must be brought in-house from the factory prior to shipping. Please allow a minimum of 5-10 days for delivery.

Description Part # Saved Price Select Option Add to
Baugh & Weedon Audit ST-1 MPI Shot Timer MT-BW-ST-1 $970.00
