Laminated Central Conductors

Laminated Central Conductors

Overview

Laminated central conductors are generally used with a multi-directional machine for developing either an induced longitudinal or vector field in the work-piece. Using this design the common problems associated with L/D ratios are eliminated.

A single part such as a bearing race may be inspected in all directions using INDIRECT induction without the fear of arc burns.

Diagram Illustration

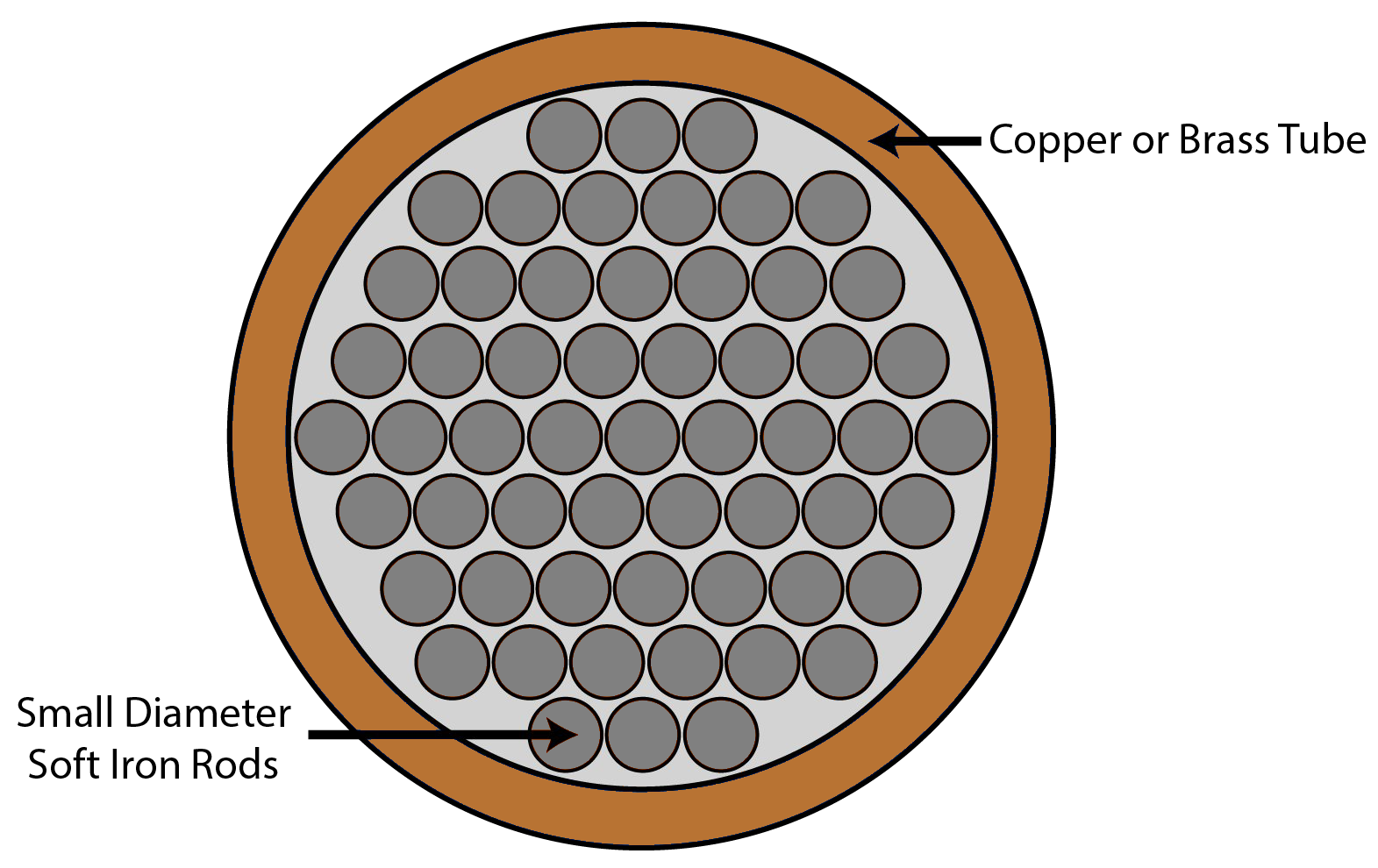

Round Soft Iron Central Conductor Diagram

Available Sizes

Laminated Central Conductor Sizes

  • 1" x 1" x 18"
  • 1" x 1" x 24"
  • 1 1/2" x 1 1/2" x 18
  • 2" x 2" x 18"
  • 2 1/2" x 2 1/2" x 18"
  • 3" x 3" x 18"
  • 4" x 4" x 18"
Round Soft Iron Central Conductor Sizes

  • 3/8" x 18"
  • 3/8" x 24"
  • 1/2" x 18"
  • 5/8" x 18"
  • 3/4" x 18"
  • 7/8" x 18"
  • 1" x 18"
  • 1" x 24"
  • 1.5" x 18"
  • 1.5" x 24"
  • 2" x 18"
  • 2" x 24"
Description Part # Saved Price Select Option Add to

Rectangular Laminated Type

1" x 1" x 18" Rectangular Laminated Central Conductor MT-MW-131210 $1,150.00
1" x 1" x 24" Rectangular Laminated Central Conductor MT-MW-131212 $1,295.00
1 1/2" x 1 1/2" x 18" Rectangular Laminated Central Conductor MT-MW-131215 $1,460.00
2" x 2" x 18" Rectangular Laminated Central Conductor MT-MW-131220 $1,940.00
2 1/2" x 2 1/2" x 18" Rectangular Laminated Central Conductor MT-MW-131225 $2,240.00
3" x 3" x 18" Rectangular Laminated Central Conductor MT-MW-131230 $2,775.00
4" x 4" x 18" Rectangular Laminated Central Conductor MT-MW-131240 $4,455.00

Round Soft Iron Type

3/8" Round x 18" Soft Iron Central Conductor in Brass Sheath MT-MW-131310 $760.00
3/8" Round x 24" Soft Iron Central Conductor in Brass Sheath MT-MW-131312 $785.00
1/2" Round x 18" Soft Iron Central Conductor in Copper Sheath MT-MW-131320 $765.00
5/8" Round x 18" Soft Iron Central Conductor in Copper Sheath MT-MW-131325 $800.00
3/4" Round x 18" Soft Iron Central Conductor in Copper Sheath MT-MW-131335 $835.00
7/8" Round x 18" Soft Iron Central Conductor in Copper Sheath MT-MW-131340 $1,035.00
1" Round x 18" Soft Iron Central Conductor in Copper Sheath MT-MW-131345 $1,550.00
1" Round x 24" Soft Iron Central Conductor in Copper Sheath MT-MW-131347 $1,575.00
1.5" Round x 18" Soft Iron Central Conductor in Copper Sheath MT-MW-131355 $1,600.00
1.5" Round x 24" Soft Iron Central Conductor in Copper Sheath MT-MW-131357 $1,950.00
2" Round x 18" Soft Iron Central Conductor in Copper Sheath MT-MW-131365 $2,085.00
2" Round x 24" Soft Iron Central Conductor in Copper Sheath MT-MW-131367 $2,145.00
