Magnaflux Steadyrests

Magnaflux Steadyrests

Headstock, Tailstock and Rail-Mount Steadyrests

Overview

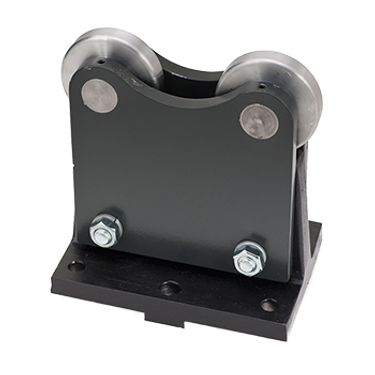

Steadyrests are used to support and stabilize long or heavy parts, such as crankshafts, during the inspection process. Single, hand-held set with two Isolated rollers that mount directly to the equipment. Adjustable height to accommodate different shaft diameters.

Three Available Steadyrest Types

Rail Mounted Roller Type Steadyrest

Part Number: 1857

Mounts and moves on rails with adjustable height to accommodate various part lengths. Fits all units except A-915 and small Mag Series units. Weight capacity up to 1,500 lbs.

Headstock Mounted Roller Type Steadyrest

Part Number: 605750

Mounts on headstock to support the end of the part (use a rail mounted steadyrest to support the other end). Speeds up part loading as the coil may be retracted past the headstock. Fits all units except the A-915, small Mag Series units and units with oversized contact plates.

Tailstock Steadyrest

Part Number: 621658

Designed for mounting on the tailstock and will work with either a headstock or rail mounted steadyrests.

Description Part # Saved Price Select Option Add to
Magnaflux Rail Mounted Roller Type Steadyrest - adjustable height MT-MX-1857 $2,701.00
Magnaflux Headstock Steady Rest Assembly MT-MX-605750 $3,404.00
Magnaflux Tailstock Steady Rest Assembly MT-MX-621658 $1,243.00
