Magnaflux Contact Pads

Copper and Lead Contact Pads and Plates

Overview

This range of copper and lead contact pads come in a variety of shapes, sizes and types to make sure your magnetic bench is outfitted correctly for the parts you inspect. Magnaflux copper braided contact pads prevent arc burn by helping maintain proper electrical contact between test parts and contact heads.

Choose a solid pad if you are inspecting parts with flat ends, pick a braided pad if your parts have rounded or irregular shaped ends.

Copper Pads and Lead Plates

Standard contact plates are made from lead for long life, and standard contact pads are made from braided copper to conform to part surfaces. Heavy-duty contact plates are lead with braided copper reinforcement for rough cast parts and rugged service. Select the right size and type of contact for your specific application needs.

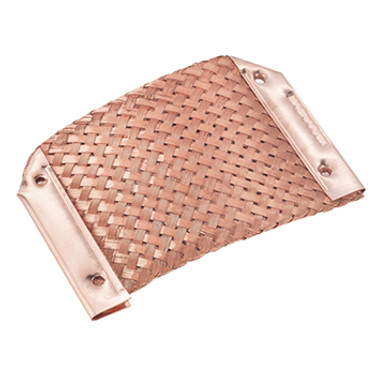

Replacement Copper Pad

4.75” x 7.5”

For use with standard wet bench units

For Equipment:

Replacement for 18948 & 18949

Part Number: 1848

Large Copper Pad

4.75” x 10.5”

For use with wet bench units with large contact option

For Equipment:

N/A

Part Number: 14818

Double-Braided Pad with V-Block

4.75” x 7.5”

Heavy copper braid provides contact over larger surface area. Built with neoprene, the V-block base centers and supports test parts. The pad can be reversed to provide two wear faces.

For Equipment:

Fits all units except A-915

Part Number: 18948

Double Braided Pad with Clip

4.75” x 7.5”

Offers the same performance as the 18948 but clips over the headstock.

For Equipment:

Fits both A-915 and H Series units

Part Number: 18949

Lead Contact Plate

6.75" x 6.625" x 0.25" thick

Standard Lead Contact Plate is the replacement for original equipment. The soft lead plate provides excellent contact with the test part

For Equipment:

Fits all units except A-915 and H Series units

Part Number: 605647

Heavy Duty Lead / Copper Plate

6.75" x 6.625" x 0.25" thick

Heavy Duty Lead/Copper Plate contains braided copper impregnated with lead. It is more durable than solid lead plates. This plate is recommended for higher current, high production applications

For Equipment:

Fits all units except A-915 and H Series units

Part Number: 605657

Heavy Duty Braided Lead Contact Plate

12" x 10.5"

Heavy-duty braided lead pad for legacy equipment

For Equipment:

Legacy equipment with 12" x 12" contacts

Part Number: 114184

**Copper Pads and Lead Plates are typically ordered in pairs. Please verify when ordering.**

There is a $25.00 small order fee on orders below $150.00.

Can be combined with other products to reach minimum.
