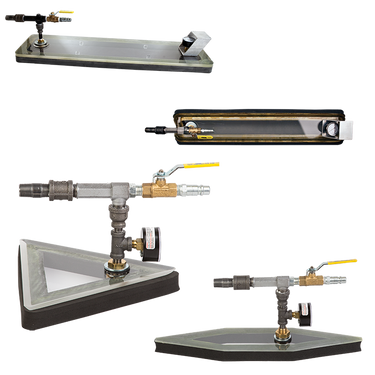

FUG Vacuum Boxes

FUG Vacuum Boxes



Flat Vacuum Boxes

Used for leak testing in building of ships, barges, tanks, or any seal weld application. Designed for use in flat areas. Double-sided gasket design ensures a good seal during vacuum test. Vacuum pump​ or compressed air source can be used.

Available in two models:

  • 18" Flat Bottom Box - 5 lbs.
  • 30" Flat Bottom Box - 7 lbs.

Corner Vacuum Boxes

Used for leak testing in building of ships, barges, tanks, or any seal weld application. Designed to be used in corners. Double-sided gasket design ensures a good seal during vacuum test. Vacuum pump​ or compressed air source can be used. Available in 3-way inside corner and outside corner vacuum boxes as well.

Available Models:

  • 18" Corner Vacuum Box - 5 lbs.
  • 30" Corner Vacuum Box - 7 lbs.



3-Way Inside Corner Box

3-way inside corner vacuum box used for leak testing in building of ships, barges, tanks, or any seal weld application. Designed to be used on 3-way inside corners, our double-sided gasket design ensures a good seal during the vacuum test. Vacuum pump​ or compressed air source can be used.



30" Flexible Vacuum Boxes

Used for leak testing in building of ships, barges, tanks, or any seal weld application. Designed for use on pipe or any concave or convex surface. Double-sided gasket design ensures a good seal during vacuum test. Vacuum pump​ not included. Vacuum pump or compressed air source can be used. Boat tail flexible vacuum boxes are available for curved corners.

Available in the following model:

  • 3" wide x 30" long flexible vacuum box - 7.5 lbs.



Boat Tail Flexible Vacuum Boxes

Vacuum box used to leak test arched corners in building of ships, barges, tanks, or any seal weld application. Our double-sided gasket design ensures a good seal during the vacuum test. Vacuum pump​ or compressed air source can be used.

 Available Models:

  • 4" wide x 18" long (6" long boat tail ends and 6" long center section) boat tail flexible vacuum box - 3.5 lbs.
  • ​6" wide X 24" long (6" long boat tail ends and 12" long center section) boat tail flexible vacuum box - 4 lbs.

Optional Accessories

Vacuum Pump

Vacuum Pump for use in conjunction with our various vacuum boxes to vacuum test weld seams. Features a regulator, quick fitting coupling, pressure gauge, warning buzzer, water filter with cartridge, auxiliary power plug, and 98" (2.5M) air hose.

Features

  • Max. Vacuum: -13 psi (-.9 bar / 26.5 in mercury)
  • Airflow: 1.07 CFM (30.5 L/Min)
  • Power Input: 110V / 200W
  • Protection: IPX4
  • 15 lbs.
Description Part # Saved Price Select Option Add to
VB18, 18" Flat Bottom Vacuum Box LT-FUG-VB18
$540.00
VB30, 30" Flat Bottom Vacuum Box LT-FUG-VB30
$550.00
VB18C, 18" Corner Vacuum Box LT-FUG-VB18C
$655.00
VB30C, 30" Corner Vacuum Box LT-FUG-VB30C
$710.00
VB3WIC, 3 Way Inside Corner Vacuum Box LT-FUG-VB3WIC
$532.00
VB30FX, 30" Flexible Lexan Bottom Vacuum Box LT-FUG-VB30FX
$632.00
VB24BT, 24" x 6" Flat Boat Tail Vacuum Box LT-FUG-VB24BT
$679.00
VB184BT, 18" x 4" Flat Boat Tail Vacuum Box LT-FUG-VB184BT
$622.00
Vacuum Pump for Vacuum Box, Air Flow 26.5" Mercury; 110 Volt; 13 PSI LT-FUG-VB-PUMP
$630.00
Replacement Gasket for Vacuum Box - Select Corresponding Model
Model #
LT-FUG-VB18GM
$47.00
