The Flying Vision BAV Series Vacuum Boxes offer a high-end, well-engineered modular leak testing solution. The two-part modular design with an interchangeable base enables inspection of different surfaces and weld configurations without the need for multiple vacuum boxes
| Flat (BAV7025 & BAV4025) applications: - Flat welds - Lap joints - Internal or external circular welds depending on the curvature radius |
 |
  |
| Angle (BAV4025IA) applications: - Internal angle welds - External angle welds - Internal or external angle welds with a varying angle |
 |
  |
|
Corner (BAV40IC) applications: |
 |
 |
 |
 |
 |
|

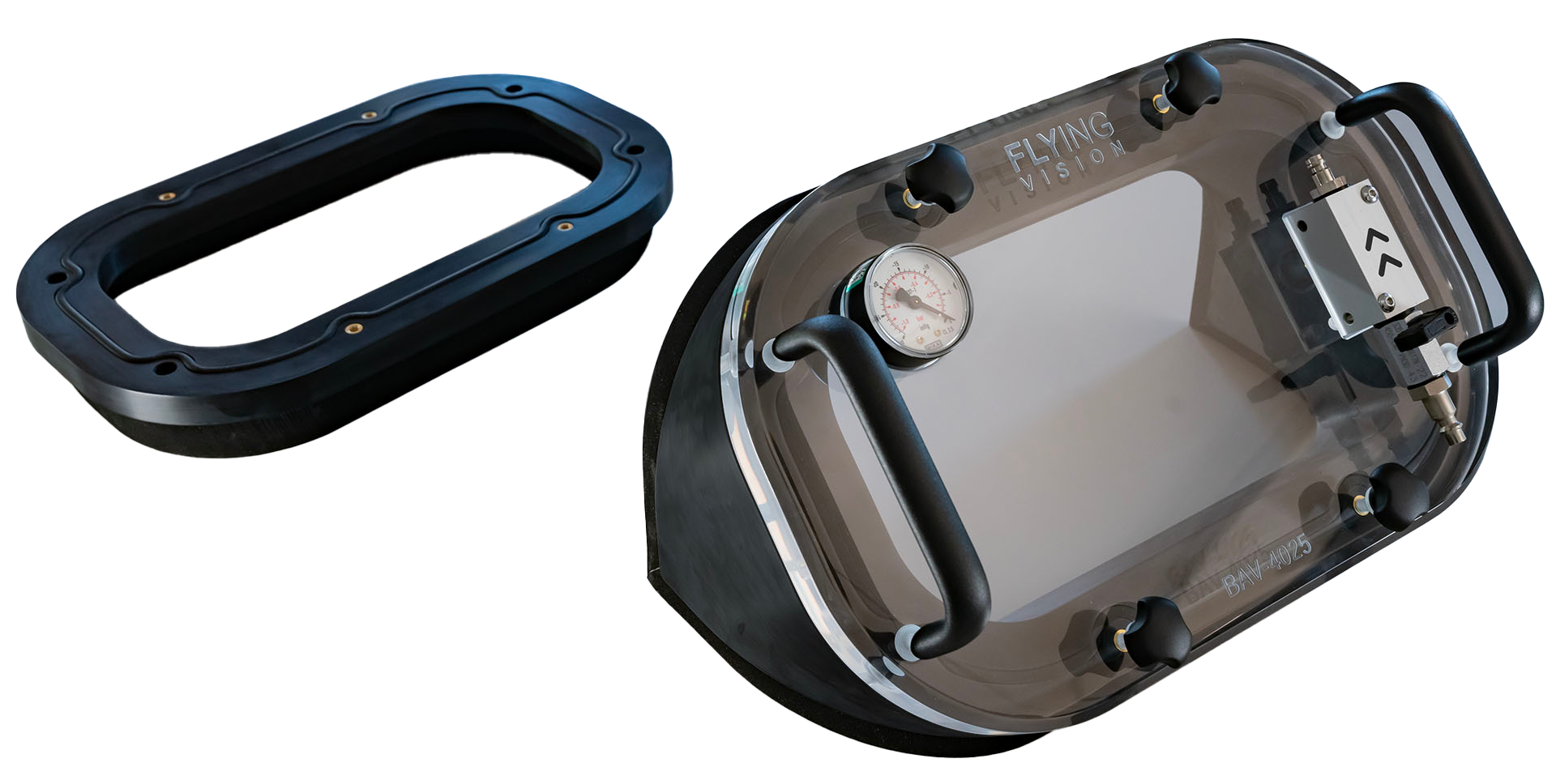

Two Part Modular Design: the BAV-7025 consists of the main body and an interchangeable base for maximum adaptability to welds and sheet geometries. This design has numerous advantages, including greatly facilitated maintenance |
Interchangeable Bases: the base of our BAV-7025 vacuum box is designed to adapt to flat surfaces, fillet welds, and possibly double fillets. The interchangeability of the base allows you to keep the same body and change the type of base according to your inspection setup. |
Easy Reading of Indications: the height of the interchangeable base of our bubble box creates a gap of about 2 cm between the main body and the surface under inspection. This provides a significant viewing window for easy and reliable reading of indicatio |
 |
 |
 |
|
Venturi Effect Operation: Possibility of operation in venturi effect mode by connecting a compressor either directly to the quick pneumatic system or to the 50cm cat’s head extension provided |
Vacuum Pump: Possibility of operation in suction mode by connecting our specially adapted optional 220v vacuum pump
|
Precise Vacuum Control: The vacuum gauge (-1 Bar, CE certified) allows precise adjustment of the vacuum necessary for inspection, thanks to the venturi mode adjustment valve and our innovative regulation system for the optional vacuum pump. |
| TECHNICAL SPECIFICATIONS | ||||
|---|---|---|---|---|
| Model: | BAV-7025 | BAV-4025 | BAV-4025IA | BAV-40IC |
| Dimensions: |
27.6 x 9.8 x 5.1 inches (700mm x 250mm x 130mm) |
15.7 x 9.8 x 4.9 inches 400mm x 250mm x 125mm |
15.7 x 9.3 x 9.3 inches 400 mm x 235 mm x 235 mm |
19.3 x 10.6 x 5.1 inches 490 mm x 270 mm x 130 mm |
| Weight: |
18.3 lbs (8300g) |
11.2 lbs (5100g) |
15.9 lbs (7200 g) |
9.3lbs (4200 g) |
| Materials: | Main body: Aluminum alloy, Plexiglas Base: Plexiglas, closed-cell foam |
|||
| Gauge: | -1 Bar | |||
| Vacuum Generator Type: | Hybrid system: - Venturi Effect: Requires a compressor of 10m3/hour at 8 bar - Vacuum pump (optional) |
|||
| Foam Type: | Closed cell foam | |||
| Foam Height: | 1.4 inches (35 mm) | |||
| Foam Hardness: | 40/50 Shore 00 | |||
| BAV7025 Series Kit | ||
| SKU & Type: | Configuration diagram | Kit Specifications |
|
SKU: BAV-A100-001 BAV7025 |
|
Dimensions: 700 x 250 x 130 mm Weight: 7.2 kg Foam Height: 35 mm Foam Hardness: 40/50 Shore 00 Max Controllable: Height 20 mm Min Control Radius: 8 m |
| BAV4025x Series Kits | ||
| SKU & Type: | Configuration diagram | Kit Specifications |
|
SKU: BAV-A200-001 BAV4025 |
|
Dimensions: 400 x 250 x 130 mm Weight: 4.5 kg Foam Height: 35 mm Foam Hardness: 40/50 Shore 00 Max Controllable: Height 20 mm Min Control Radius: 2.5 m |
|
SKU: BAV-A300-2 |
|
Dimensions: 400 x 250 x 300 mm Weight: 6.5 kg Foam Height: 35 mm Foam Hardness: 40/50 Shore 00 Nominal Control Angle: 70° Max Controllable Angle: ≈ 65° - 80° |
|
SKU: BAV-A300-1
|
|
Dimensions: 400 x 250 x 250 mm Weight: 6.2 kg Foam Height: 35 mm Foam Hardness: 40/50 Shore 00 Nominal Control Angle: 90° Max Controllable Angle: ≈ 80° - 100° |
|
SKU: BAV-A300-3
|
|
Dimensions: 400 x 250 x 220 mm Weight: 6 kg Foam Height: 35 mm Foam Hardness: 40/50 Shore 00 Nominal Control Angle: 110° Max Controllable Angle: ≈ 100° - 120° |
|
SKU: BAV-A300-4
|
|
Dimensions: 400 x 250 x 190 mm Weight: 5.8 kg Foam Height: 35 mm Foam Hardness: 40/50 Shore 00 Nominal Control Angle: 130° Max Controllable Angle: ≈ 120° - 140° |
|
SKU: BAV-A300-5
|
|
Dimensions: 400 x 250 x 190 mm Weight: 6.2 kg Foam Height: 35 mm Foam Hardness: 40/50 Shore 00 Nominal Control Angle: 220° Max Controllable Angle: ≈ 210° - 230° |
|
SKU: BAV-A300-6
|
|
Dimensions: 400 x 250 x 250 mm Weight: 6.2 kg Foam Height: 35 mm Foam Hardness: 40/50 Shore 00 Nominal Control Angle: 270° Max Controllable Angle: ≈ 260° - 280° |
| BAV40C Series Kit | ||
| SKU & Type: | Configuration diagram | Kit Specifications |
|
SKU: BAV-A400-001 |
|
Dimensions: 490 x 270 x 130 mm Weight: 4.5 kg Foam: Height 15 mm Foam Hardness: 40/50 Shore 00 Controllable Angle: Internal corner at 90° or corner where the 3 sides form an isosceles plane |
