LCNDT UV-100 and 200 Series Certified LED UV Lamps

Portable High Intensity UV Lamps for Critical NDT Application

Maximum Intensity @ 15": ~ 5,000 µW/cm2 @ 15" (UV-100C), ~ 12,000 µW/cm2 @ 15" (UV-200), and less than 2 ft. candles white light
Certified 365nm UV-A
ASTM E1417, ASTM E1444, ASTM E2297, ASTM E3022 compliant
Wide-Uniform Beam
Instant On / Off
30,000 hour nominal LED life
No heat, cool operation
UV Filter Glass

Additional Features

Drop-Resistant Rugged Housing
Dimensions: 8.6" x 9.4" x 4.3" (220 x 240 x 110mm)
Lightweight, 1.5 lbs.
Cable Length: 10 ft. from light to power supply + 6 ft. additional on the power supply = 16 ft. cable
Special Shatter Resistant PMMA Lens & Dustproof
5 Year Parts / 1 Year Labor Warranty

UV Spectrum

UV Intensity (for UV-100C and UV-100B)

Easily Mountable

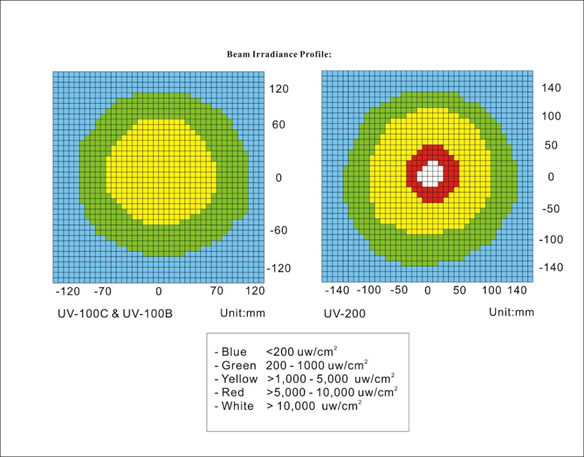

Beam Irradiance Profile

Beam Spread Comparison – Traditional Mercury Vapor vs. LED

UV-100C

LED UV Lamp
#UV-LC-UV100C

~ 5,000 µW/cm2 @ 15"
AC Power (standard)
Cable Length: 10 ft. from light to power supply + 6 ft. additional on the power supply = 16 ft. cable
Optional 6-hour battery pack (BUV-6000)

UV-100B

LED UV Lamp
#UV-LC-UV100B

UV-200

LED UV Lamp
#UV-LC-UV200

~ 12,000 µW/cm2 @ 15"
AC Power (standard)
Cable Length: 10 ft. from light to power supply + 6 ft. additional on the power supply = 16 ft. cable
Optional 3-hour battery pack (BUV-6000)

Tripod Stand (left), Magnetic Stand (right)

Replacement Filter (PURE 365nm Woods Glass)
Tripod Stand
Li-Ion Constant Intensity Battery Kit (available for UV-100C and UV-200)
- #UV-LC-BUV6000
- 6-hour battery life for UV-100C
- 3-hour battery life for UV-200
- Maintains maximum intensity for 100% of battery life; will not lose intensity as batteries decay.
Magnetic Stand with 360° Rotation (Not compatible with UV-100B)
- The first segment measures 8.85" (225mm), the second measures 6.29" (160mm)

All UV-100 & UV-200 Series Lamps Include a 5 Year Parts / 1 Year Labor Warranty

Description	Part #	Price
LCNDT UV-100C LED UV Lamp with UV Filter, AC Adapter, Safety Glasses, Carrying Case & ASTM Certification	UV-LC-UV100C	$925.00
LCNDT UV-100B LED UV Lamp with Internal Battery, UV Filter, AC Adapter / Charger, Safety Glasses, Carrying Case & ASTM Certification	UV-LC-UV100B	$1,150.00
LCNDT UV-200 LED UV Lamp including UV Filter, AC Adapter, Safety Glasses, Carrying Case & Certification	UV-LC-UV-200	$1,450.00
LCNDT BUV-6000 Constant Intensity Battery Kit including 6000 mAH Li Ion Battery Pack, Battery Holster & Charger (for UV-100 and UV-200)	UV-LC-BUV-6000	$280.00
LCNDT Pure 365 wood glass filter (for UV-100 and UV-200)	UV-LC-UV-100-FILTER	$165.00
LCNDT Tripod Stand for UV Series & PRO Series (also compatible with Spectro-UV and Magnaflux mountable lamps)	UV-LC-UV-STAND	$120.00
LCNDT Magnetic Stand for UV Series & PRO Series Lamps	UV-LC-MAG-STAND	$125.00
