LCNDT Overhead UV LED Panel

LCNDT Overhead UV LED Panel

Quality UV-A Coverage for Areas Up To 47" (1200 mm)



Features:

  • High Intensity of 9,000 µW/cm2 @ 15"
  • Normal Intensity of 6,000 µW/cm2 @ 15"
  • Certified 365nm UV-A
  • ASTM E1417, ASTM E1444, ASTM E2297, ASTM E3022 compliant
  • 6 standard models
  • UV / White LED Switch
  • Can expand coverage up to 47" / 1200mm
  • Works continuously with low heat
  • Rugged design
  • Lamp will automatically shut-down if the voltage is beyond a normal range to preserve the LEDs and won't turn back on until the voltage is back to a normal range.
  • IP65
  • 3 Year Warranty and CE marked

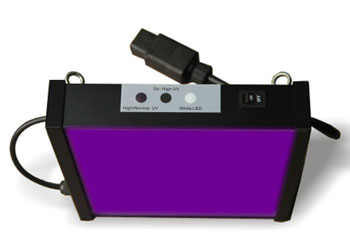

UV-1 Panel

12 UV LEDs and 4 White Light LEDs

Standard Coverage Area Standard Intensity Maximum Coverage Area Maximum Intensity
14" x 12.6" (360 x 320mm) 6,400 µW/cm2 @15" 15" x 13.4" (380 x 340mm) 9,600 µW/cm2 @15"
13.4" x 11.8" (340 x 300mm) 4,200 µW/cm2 @25" 14" x 12.2" (360 x 310mm) 6,100 µW/cm2 @25"
13.4" x 11" (340 x 280mm) 3,900 µW/cm2 @30" 14" x 11.8" (360 x 300mm) 5,400 µW/cm2 @30"
11.8" x 9.4" (300 x 240mm) 3,200 µW/cm2 @35" 12.6" x 10.2" (320 x 260mm) 4,600 µW/cm2 @35"
11" x 8.6" (280 x 220mm) 1700 μW/cm2 @48" 11.8" x 9.4" (300 x 240mm) 2500 μW/cm2 @48"
8.2" x 5.9" (210 x 150mm) 1200 μW/cm2 @60" 11" x 8.6" (280 x 220mm) 1700 μW/cm2 @60"
0 800 μW/cm2 @72" 8.6" x 6.2" (220 x 160mm) 1300 μW/cm2 @72"

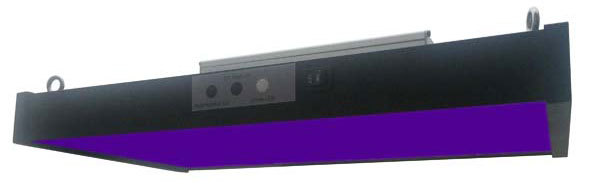

UV-2 Panel

24 UV LED and 8 White Light LEDs

Standard Coverage Area Standard Intensity Maximum Coverage Area Maximum Intensity
14.1" x 25.1" (360 x 640mm) 6400 μW/cm2 @15" 14.9" x 26.7" (380 x 680mm) 9600 μW/cm2 @15"
13.3" x 23.6" (340 x 600mm) 4200 μW/cm2 @25" 14.1" x 24.4" (360 x 620mm) 6100 μW/cm2 @25"
13.3" x 22" (340 x 560mm) 3900 μW/cm2 @30" 14.1" x 23.6" (360 x 600mm) 5400 μW/cm2 @30"
11.8" x 18.8" (300 x 480mm) 3200 μW/cm2 @35" 12.5" x 20.4" (320 x 520mm) 4600 μW/cm2 @35"
11" x 17.3" (280 x 440mm) 1700 μW/cm2 @48" 11.8" x 18.8" (300 x 480mm) 2500 μW/cm2 @48"
8.2" x 11.8" (210 x 300mm) 1200 μW/cm2 @60" 11" x 17.3" (280 x 440mm) 1700 μW/cm2 @60"
0 800 μW/cm2 @72" 8.6" x 12.5" (220 x 320mm) 1300 μW/cm2 @72"













UV-3 Panel

36 UV LEDs and 12 White Light LEDs

Standard Coverage Area Standard Intensity Maximum Coverage Area Maximum Intensity
14" x 25.2" (360 x 960mm) 6,400 µW/cm2 @15" 15" x 26.8" (380 x 680mm) 9,600 µW/cm2 @15"
13.4" x 23.6" (340 x 900mm) 4,200 µW/cm2 @25" 14" x 24.4" (360 x 620mm) 6,100 µW/cm2 @25"
13.4" x 22" (340 x 840mm) 3,900 µW/cm2 @30" 14" x 23.6" (360 x 600mm) 5,400 µW/cm2 @30"
11.8" x 18.9" (300 x 720mm) 3,200 µW/cm2 @35" 12.6" x 20.5" (320 x 520mm) 4,600 µW/cm2 @35"
11" x 25.9" (280 x 660mm) 1700 μW/cm2 @48" 11.8" x 28.3" (300 x 720mm) 2500 μW/cm2 @48"
8.2" x 17.7" (210 x 450mm) 1200 μW/cm2 @60" 11" x 25.9" (280 x 660mm) 1700 μW/cm2 @60"
0 800 μW/cm2 @72" 8.6" x 18.8" (220 x 480mm) 1300 μW/cm2 @72"

Technical Specifications

LCNDT Overhead UV LED Panel Series Specifications

UV Low Intensity: 6,000 µW/cm2 @ 15"

UV High Intensity: 9,000 µW/cm2 @ 15"

Visible White Light: ≤ 0.3 Foot Candles (3 Lux)

Power: 115 - 240 VAC / 50 - 60 Hz

Power Consumption: 40W

Weight: 4.85 lbs. (2.2 Kg.)

Dimensions: 9" x 8.3" x 3.5" (230 x 212 x 90mm)



Kit Includes

Standard Kit Includes

  • UV Panel
  • UV Absorbing Spectacles
  • AC Adapter with 10-foot (3.0m) cable
  • Mounting hooks

All Overhead UV LED Panels Include a 3 Year Warranty (CE Marked)

Product Literature

Description Part # Saved Price Select Option Add to
LCNDT UV-1 LED UV Panel, 12 UV-A LEDs / 4 White Light LEDs, 115-240V, AC Adapter with 10-foot (3.0m) cable, ASTM E1417, ASTM E1444, ASTM E2297, ASTM E3022 compliant UV-LC-PANEL-UV-1
$2,095.00
LCNDT UV-2 LED UV Panel (24LEDs), ASTM Certification UV-LC-PANEL-UV-2
$3,450.00
LCNDT UV-3 LED UV Panel (36LEDs), ASTM Certification UV-LC-PANEL-UV-3
$4,675.00
LCNDT UV-4 LED UV Panel (48LEDs), ASTM Certification UV-LC-PANEL-UV-4
Request Pricing
LCNDT UV-5 LED UV Panel (60LEDs), ASTM Certification UV-LC-PANEL-UV-5
Request Pricing
LCNDT UV-6 LED UV Panel (72LEDs), ASTM Certification UV-LC-PANEL-UV-6
Request Pricing
