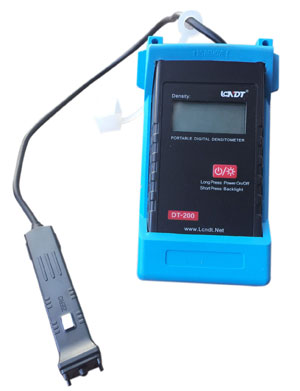

LCNDT DT-200 Separate Probe Portable Densitometer

LCNDT DT-200 Separate Probe Portable Densitometer

Superior Quality Densitometer That is Easy to Use and Very Portable

Features

  • Robust, easy to use, portable densitometer with a separate probe for measuring the density of X-ray film
  • Designed for use with any type of film viewer and is perfect for use on site, in laboratories or in mobile darkrooms
  • Separate-probe-type densitometer
  • Can measure 0.0D - 5.0D Density film
  • High Accuracy: ± 0.03D
  • 10 Point Calibration
  • Big display screen with backlight
  • Extremely wide light range: 650 Cd/m2 - 320,000 Cd/m2
  • Carrying Case included

*Note: Self-calibrate to a certified density step tablet prior to use.

Technical Specifications

DT-200 Specifications

Range 650 Cd/m2 - 320,000 Cd/m2
Density 0.00 D - 5.00 D
Optical Aperture 3mm diameter
Probe Temperature compensated
Display 4-digit LCD
Accuracy ±0.03 D
Resolution 0.01 D
Detector Silicon Photodiode
Power Supply (AA/1.5V) x2 Alkaline Battery
Battery Life 1200 hours (continuous duty without illumination)
Dimensions 6.7" x 3.5" x 2.4" (170mm x 90mm x 60mm)
Weight 1.7 lbs (800g)

Kit Includes

DT-200 Instrument Kit

  • DT-200 Separate Probe Densitometer
  • Instruction Manual
  • Carrying Case
  • Warranty: 5 years part, 1 year labor

  • (optional) AGFA Density Strip, 15-step, certified

Accessories

  • AGFA Density Film Strip (PN RT-AGFA-3UEPB)
    • 15 Steps
    • Range: less than 0.20 to great than 4.0
  • BAM Density Step Tablet (PN RT-KT-13-40205)
    • 15 Steps
    • Range: less than 0.20 to great than 5.0

Density Step Tablets

The DT-200 Includes a 5 Year Parts / 1 Year Labor Warranty

Product Literature

Description Part # Saved Price Select Option Add to
LCNDT DT-200 Portable Densitometer w/ Separate Sensor RT-LC-DT200
$1,525.00
AGFA Density Film Strip, 15-step, Certified RT-AGFA-3UEPB
$162.00
Kowotest BAM 15 Step Density Tablet, Calibrated and Traceable to NIST, > 0.2 to > 5.0 D RT-KT-13-40205
$450.00
