Hawkeye Pro SuperSlim Borescope

Overview:

Pro SuperSlim 0.098" (2.40 mm)*

At .098 inches in diameter, or .109 inches with a mirror tube, the Hawkeye Pro SuperSlim Borescopes give sharp clear views of the microscopic holes in spray tips and nozzles.

Use Hawkeye Pro SuperSlim to inspect small bores for burrs, surface finish irregularities and more.

* The 10, 14 and 17 inch models are 0.128" (3.25 mm) in diameter.

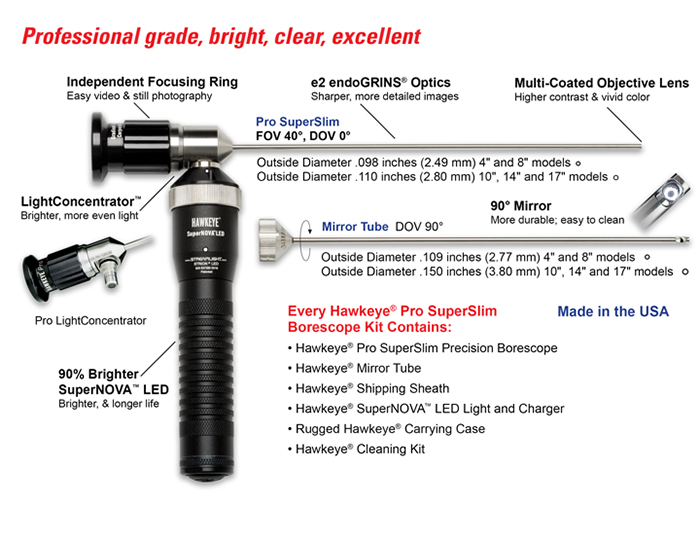

Hawkeye Pro Rigid Borescopes contain:

  • Our latest endoGRINs image relay lenses
  • Multicoated objective lens
  • LightConcentrator light post
  • Independent focusing ring for convenient video and still photography
  • A Super bright portable SuperNOVA Light, with rechargeable SuperNOVA Lithium Ion batteries and a rugged Hawkeye Carrying Case are included with kit purchases.

    SuperSlim

    Optics:
    Field-of-View 42°
    Direction-of-View 0°
    Relay Optics e2 endoGRINs Glass Relay Lenses
    Magnification Borescopes are not fixed magnification like microscopes.
    Mechanical / Construction:
    Length 4", 8", 10", 14" and 17"
    Diameter 4" and 8" Scopes: 0.098" (2.40 mm), 10", 14" and 17" Scopes: 0.110" (2.80 mm). 4" and 8" Scopes w/ Mirror Tube: 0.109" (2.8 mm), 10", 14" and 17" Scopes w/ Mirror Tube: 0.130" (3.3 mm)
    Lightpost LightConcentrator ACMI configuration, Diameter 0.300"
    Eyecup Standard DIN, 32 mm diameter, with independent focusing ring
    Materials:
    Tube 304 Stainless Steel
    All Machined Stainless Steel 303 Stainless Steel
    Eyecup and Focusing Ring Aluminum, black anodized
    Front Window AR coated optical Glass
    Illumination Fiber Optical Glass
    Relay Optics e2 endoGRINs gradient index glass lenses
    Environmental:
    Temperature Range Official -4°C to 248°C / -20°C to 120°C
    Note 1 Hawkeye Pro Rigid Borescopes can be made to operate up to 572°F / 300°C on a custom basis. Contact your sales representative for details.
    Note 2 These scopes were not designed to operate below 0°. However, several of our customers have successfully used scopes in liguid Nitrogen at 77° K.
    Pressure All Hawkeye borescopes we designed only for use at ambient pressure, however, we have several customers who have successfully used Hawkeye Borescopes up to 500 PSI and down to 10-6 Torr. As the scopes were not specifically designed for this, the operator does so at his own risk.
    Chemical Resistance All Hawkeye Pro Rigid Borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc. Exposure to acids and strong Alkali should be avoided, as it will attack the optical window.

    Product Literature

    Description Part # Saved Price Select Option Add to
    4" Pro SuperSlim Kit - 102mm (4") Tube Length Includes: Pro SuperSlim Borescope, Mirror Tube, Shipping Sheath, SuperNOVA LED Light and Charger, Carrying Case and Cleaning Kit RV-HG-PSS04-NVK
    		$1,495.00
    8" Pro SuperSlim Kit - 185mm (8") Tube Length Includes: Pro SuperSlim Borescope, Mirror Tube, Shipping Sheath, SuperNOVA LED Light and Charger, Carrying Case and Cleaning Kit RV-HG-PSS08-NVK
    		$1,595.00
    10" Pro SuperSlim Kit - 265mm (10") Tube Length Includes: Pro SuperSlim Borescope, Mirror Tube, Shipping Sheath, SuperNOVA LED Light and Charger, Carrying Case and Cleaning Kit RV-HG-PSS10-NVK
    		$1,695.00
    14" Pro SuperSlim Kit - 350mm (14") Tube Length Includes: Pro SuperSlim Borescope, Mirror Tube, Shipping Sheath, SuperNOVA LED Light and Charger, Carrying Case and Cleaning Kit RV-HG-PSS14-NVK
    		$1,795.00
    17" Pro SuperSlim Kit - 435mm (17") Tube Length Includes: Pro SuperSlim Borescope, Mirror Tube, Shipping Sheath, SuperNOVA LED Light and Charger, Carrying Case and Cleaning Kit RV-HG-PSS17-NVK
    		$1,895.00
    4" Pro SuperSlim Borescope - 2.49mm (.098") Diameter, 102mm (4") Tube Length RV-HG-PSS04
    		$1,095.00
    8" Pro SuperSlim Borescope - 2.49mm (.098") Diameter, 185mm (8") Tube Length RV-HG-PSS08
    		$1,195.00
    10" Pro SuperSlim Borescope - 2.80mm (.110") Diameter, 265mm (10") Tube Length RV-HG-PSS10
    		$1,295.00
    14" Pro SuperSlim Borescope - 2.80mm (.110") Diameter, 350mm (14") Tube Length RV-HG-PSS14
    		$1,395.00
    17" Pro SuperSlim Borescope - 2.80mm (.110") Diameter, 435mm (17") Tube Length RV-HG-PSS17
    		$1,495.00
    4" Mirror Tube - 2.77mm (.109") Diameter, 102mm (4") Tube Length RV-HG-MTSS04
    		$175.00
    8" Mirror Tube - 2.77mm (.109") Diameter, 185mm (8") Tube Length RV-HG-MTSS08
    		$195.00
    10" Mirror Tube - 3.80mm (.150") Diameter, 265mm (10") Tube Length RV-HG-MTSS10
    		$215.00
    14" Mirror Tube - 3.80mm (.150") Diameter, 350mm (14") Tube Length RV-HG-MTSS14
    		$235.00
    17" Mirror Tube - 3.80mm (.150") Diameter, 435mm (17") Tube Length RV-HG-MTSS17
    		$255.00
    Hawkeye Angled Eyepiece RV-HG-AE-9003
    		$275.00
