Overview:

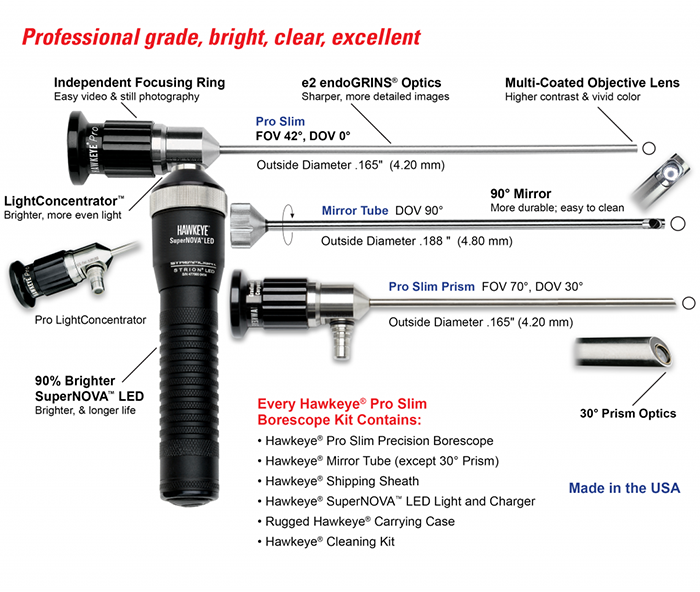

Pro Slim 0.165" (4.20 mm)

The Clarity and brightness of Hawkeye Pro Slim Borescopes bring out all the details in your subject. The Pro Slim offers the best combination of small diameter, length and bright illumination.

Most machined metal parts afford ample access for the Hawkeye Pro Slim Borescope and 90° DOV mirror tube. You will clearly see burrs and surface finish in bores and cross-holes.

Hawkeye Pro Rigid Borescopes contain:

  • Our latest endoGRINs image relay lenses
  • Multicoated objective lens
  • LightConcentrator light post
  • Independent focusing ring for convenient video and still photography
  • A Super bright portable SuperNOVA Light with rechargeable SuperNOVA Lithium-Ion batteries and a rugged Hawkeye Carrying Case are included with kit purchases.

    ProSlim

    Optics:
    Field-of-View 42°
    Direction-of-View 0°
    Relay Optics e2 endoGRINs Glass Relay Lenses
    Magnification Borescopes are not fixed magnification like microscopes
    Mechanical / Construction:
    Length 7", 12", 17" and 22"
    Diameter Scope: 0.165" (4.20 mm), w/ Mirror Tube: 0.188" (4.80mm)
    Lightpost LightConcentrator ACMI configuration, Diameter 0.300"
    Eyecup Standard DIN, 32 mm diameter, with independent focusing ring
    Materials:
    Tube 304 Stainless Steel
    All Machined Stainless Steel 303 Stainless Steel
    Eyecup and Focusing Ring Aluminum, black anodized
    Front Window AR coated optical Glass
    Illumination Fiber Optical Glass
    Relay Optics e2 endoGRINs gradient index glass lenses
    Environmental:
    Temperature Range Official -4°F to 248°F / -20°C to 120°C
    Note 1 Hawkeye Pro Rigid Borescopes can be made to operate up to 572°F / 300°C on a custom Basis. Contact your sales representative for details.
    Note 2 These scopes were not designed to operate below 0°. However, several of our customers have successfully used the scopes in liquid Nitrogen at 77 degrees K.
    Pressure All Hawkeye borescopes we designed only for use at ambient pressure, however, we have several customers who have successfully used Hawkeye Borescopes at pressures up to 500 PSI and down to 10-6 Torr. As the scopes were not specifically designed for this, the operator does so at his own risk.
    Chemical Resistance All Hawkeye Pro Rigid borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc. Exposure to acids and strong Alkali should be avoided, as it will attack the optical window.

    Product Literature

    Description Part # Saved Price Add to
    2" Pro Slim Kit RV-HG-PS02-NVK
    		$1,295.00
    7" Pro Slim Kit RV-HG-PS07-NVK
    		$1,295.00
    12" Pro Slim Kit RV-HG-PS12-NVK
    		$1,395.00
    17" Pro Slim Kit RV-HG-PS17-NVK
    		$1,495.00
    22" Pro Slim Kit RV-HG-PS22-NVK
    		$1,895.00
    7" Pro Slim 30 Prism Kit RV-HG-PS07-30-NVK
    		$1,795.00
    12" Pro Slim 30 Prism Kit RV-HG-PS12-30-NVK
    		$1,895.00
    17" Pro Slim 30 Prism Kit RV-HG-PS17-30-NVK
    		$1,995.00
    2" Pro Slim Borescope RV-HG-PS02
    		$895.00
    7" Pro Slim Borescope RV-HG-PS07
    		$895.00
    7" Pro Slim 30 Degree Prism RV-HG-PS07-30
    		$1,595.00
    12" Pro Slim Borescope RV-HG-PS12
    		$995.00
    12" Pro Slim 30 Degree Prism RV-HG-PS12-30
    		$1,695.00
    17" Pro Slim Borescope RV-HG-PS17
    		$1,095.00
    17" Pro Slim 30 Degree Prism RV-HG-PS17-30
    		$1,795.00
    22" Pro Slim Borescope RV-HG-PS22
    		$1,495.00
    2" Pro Slim Mirror Tube RV-HG-PS-MT02
    		$150.00
    7" Pro Slim Mirror Tube RV-HG-MTS07
    		$135.00
    12" Pro Slim Mirror Tube RV-HG-MTS12
    		$145.00
    17" Pro Slim Mirror Tube RV-HG-MTS17
    		$155.00
    22" Pro Slim Mirror Tube RV-HG-MTS22
    		$195.00
    Hawkeye Angled Eyepiece RV-HG-AE-9003
    		$275.00
    Aluminum Carrying Case ( w/ die cut foam insert) fits up to 22" Borescopes RV-HG-PCC
    		$195.00
