Hawkeye Pro MicroFlex Flexible Borescopes

Hawkeye Pro MicroFlex Flexible Borescopes

Small Diameter, Flexible & Excellent Image Quality

The excellent image quality Hawkeye MicroFlex Flexible Borescopes deliver, in these very small micro diameters, is nothing short of amazing! You can access even the smallest opening, and utilize a 9" (229mm) bend radius when the entry path is not straight. The polyamide-sheathed 0.5 model has a 3,000 pixel fiber imaging bundle, and the  0.04" (0.9 mm) model has a 10,000 pixel fiber imaging bundle. The plastic-sheathed 1.5 mm has a 30,000 fiber bundle. The eyepiece is easily replaced with a video adapter to use a C-Mount camera. Quickly and easily inspect cooling holes inside turbine blades, cannulas, catheters, needles, trocars, valves in medical devices, and many other micro manufactured parts.



Outside Diameter Length DOV FOV Bundle Pixels Sheath Model #
0.020" (0.5mm) 23.5" (600mm) 55° 10,000 Plastic HSF 005 0600 55
0.035" (0.09mm) 39.4" (1000mm) 55° 10,000 Plastic HSF 009 1000 55
0.060" (1.5mm) 31.5" (800mm) 70° 30,000 Plastic HSF 015 0800 70

Technical Specifications

Pro MicroFlex Specifications

Optics
Direction-of-View: 0° for all models
Field-of-View: 0.020" (0.5mm) scope: 55° FOV
0.035" (0.9mm) scope: 55° FOV
0.060" (1.5mm) scope: 70° FOV
Depth-of-Field: 0.020" (0.5mm) scope: 0.04" - 0.12" (1 - 3mm)
0.035" (0.9mm) scope: 0.08" - 0.20" (2 - 5mm, 0.04" (1mm) for the 90° scope
0.060" (1.5mm) scope: 0.12" - 0.40" (3 - 10mm)
Distal Focus: Fixed focus lens set
Mechanical
Tube Diameter: 0.020" (0.5mm), 0.035" (0.9mm), 0.060" (1.5mm)
Working Length: 0.020" (0.5mm) scope: 23.6" (600mm)
0.035" (0.9mm) scope: 39.4" (1000mm)
0.060" (1.5mm) scope: 31.5" (800mm)
Insertion Tube Bend Radius: 0.020" (0.5mm) scope: 1.5" (38.1mm)
0.035" (0.9mm) scope: 2.5" (63.5mm)
0.060" (1.5mm) scope: 3.5" (88.9mm)
Articulation: None
Tube Construction: Black Polymide
Environmental
Operating Temperature:  0° to 170°F (-18° to 77°C)
Watertight Insertion Tube:  Up to 1 atm / 1 bar (14.7 p;sig); approx. 30ft. water depth
Note: The handpiece is splash proof only.

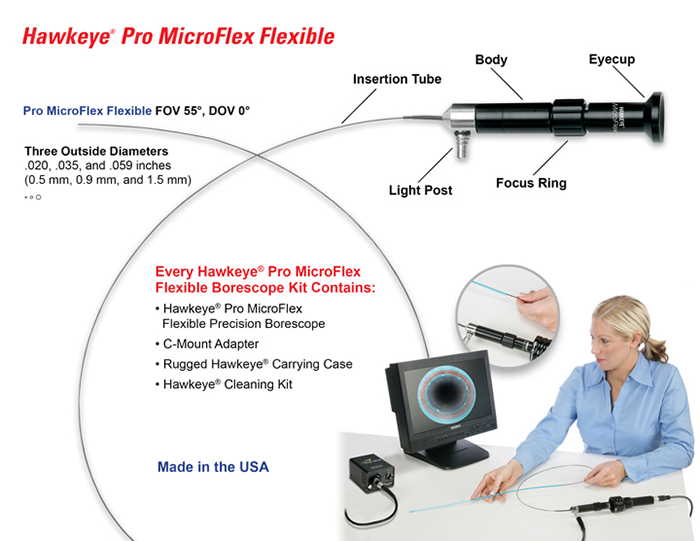

Hawkeye Pro MicroFlex Flexible Borescope Kit Includes:

  • Pro MicroFlex Flexible Precision Borescope
  • C-Mount Adapter
  • Carrying Case
  • Cleaning Kit

Product Literature

Description Part # Saved Price Select Option Add to
Hawkeye Gradient Pro MicroFlex Flexible Borescope: Plastic Sheathed, 0.020" (0.5mm) Diameter x 23.5" (600mm) Length, 10,000 pixels and includes HFC2 Carrying Case RV-HG-HSF-005-0600-55 $4,995.00
Hawkey Gradient Pro MicroFlex Flexible Borescope: Plastic Sheathed, 0.035" (0.9mm) Diameter 39.4" (1000mm) Length, 10,000 pixels and includes HFC2 Carrying Case RV-HG-HSF-009-1000-55 $4,995.00
Hawkeye Gradient Pro MicroFlex Flexible Borescope: Plastic Sheathed, 0.060" (1.5mm) Diameter x 31.5" (800mm) Length, 30,000 pixels and includes HFC2 carrying case RV-HG-HSF-015-0800-70 $4,995.00
