Overview:

Pro Hardy 0.250" (6.35 mm)

Hawkeye Pro Hardy Borescopes are rugged and bright. The quarter inch diameter Pro Hardy gives 3x the illumination of the Pro Slim.

The Hawkeye Pro Hardy Borescope excels at looking into the larger dark spaces of diesel and aircraft cylinders, tanks, pressure vessels, pipes and even wall cavities.

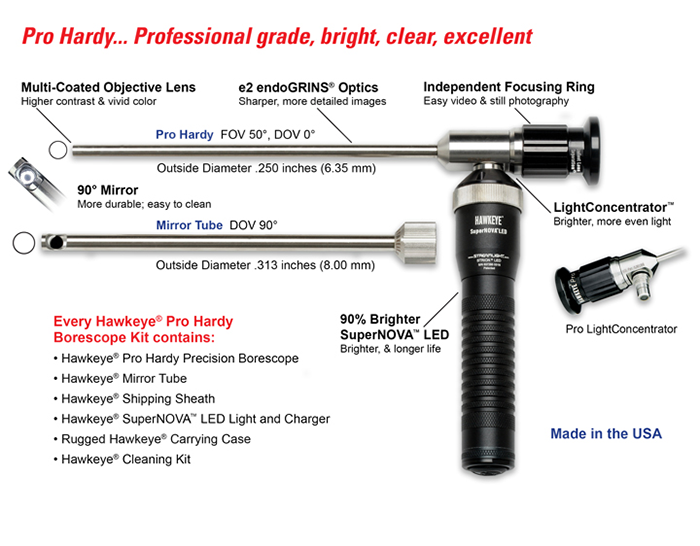

Hawkeye Pro Rigid Borescopes contain:

  • Our latest endoGRINs image relay lenses
  • Multicoated objective lens
  • LightConcentrator light post
  • Independent focusing ring for convenient video and still photography
  • A Super bright portable SuperNOVA Light with rechargeable SuperNOVA Lithium-Ion batteries and a rugged Hawkeye Carrying Case is included with kit purchases.

    ProHardy

    Optics:
    Field-of-View 50°
    Direction-of-View
    Relay Optics e2 endoGRINs Glass Relay Lenses
    Magnification Borescopes are not a fixed magnification like microscopes
    Mechanical/ Construction:
    Length 7", 12", 17 and 22"
    Diameter Scope: 0.250" (6.35 mm), w/Mirror Tube: 0.313" (8.00mm)
    Lightpost LightConcentrator ACMI configuration, Diameter 0.300"
    Eyecup Standard DIN, 32 mm diameter, with independent focusing ring
    Materials:
    Tube 304 Stainless Steel
    All Machined Stainless Steel 303 Stainless Steel
    Eyecup and Focusing Ring Aluminum, black anodized
    Front Window AR coated optical Glass
    Illumination Fiber Optical Glass
    Relay Optics e2 endoGRINs gradient index glass lenses
    Environmental:
    Temperature Range Official -4°F to 248°F / -20°C to 120°C
    Note 1 Hawkeye Pro Rigid Borescopes can be made to operate up to 572°F / 300°C on a custom Basis. Contact your sales representative for details.
    Note 2 These scopes were not designed to operate below 0°. However, several of our customers have successfully used the scopes in liquid Nitrogen at 77° K.
    Pressure All Hawkeye borescope we designed only for use at ambient pressure, however, we have several customers who have successfully used Hawkeye Borescopes at pressures up to 500 PSI and down to 10-6 Torr. As the scopes were not specifically designed for this, the operator does so at his own risk.
    Chemical Resistance All Hawkeye Pro Rigid borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc. Exposure to acids and strong Alkali should be avoided, as it will attack the optical window.

    Product Literature

    Description Part # Saved Price Add to
    7" Pro Hardy Kit RV-HG-PH07-NVK $1,395.00
    12" Pro Hardy Kit RV-HG-PH12-NVK $1,495.00
    17" Pro Hardy Kit RV-HG-PH17-NVK $1,595.00
    22" Pro Hardy Kit RV-HG-PH22-NVK $1,995.00
    7" Pro Hardy Borescope RV-HG-PH07 $995.00
    12" Pro Hardy Borescope RV-HG-PH12 $1,095.00
    17" Pro Hardy Borescope RV-HG-PH17 $1,195.00
    22" Pro Hardy Borescope RV-HG-PH22 $1,595.00
    7" Pro Hardy Mirror Tube RV-HG-MTH07 $145.00
    12" Pro Hardy Mirror Tube RV-HG-MTH12 $155.00
    17" Pro Hardy Mirror Tube RV-HG-MTH17 $165.00
    22" Pro Hardy Mirror Tube RV-HG-MTH22 $205.00
    28" Pro SuperHardy Mirror Tube RV-HG-MTSH28 $295.00
    37" Pro SuperHardy Mirror Tube RV-HG-MTSH37 $295.00
    28" Pro SuperHardy Borescope RV-HG-PSH28 $2,650.00
    37" Pro SuperHardy Borescope RV-HG-PSH37 $2,950.00
    28" Pro SuperHardy Kit RV-HG-PSH28-NVK $3,395.00
    37" Pro SuperHardy Kit RV-HG-PSH37-NVK $3,695.00
    Hawkeye Angled Eyepiece RV-HG-AE-9003 $275.00
