Quality Optics at a Great Price, In our most popular lengths and diameters!

Hawkeye Pro Flexible Borescopes

Overview:

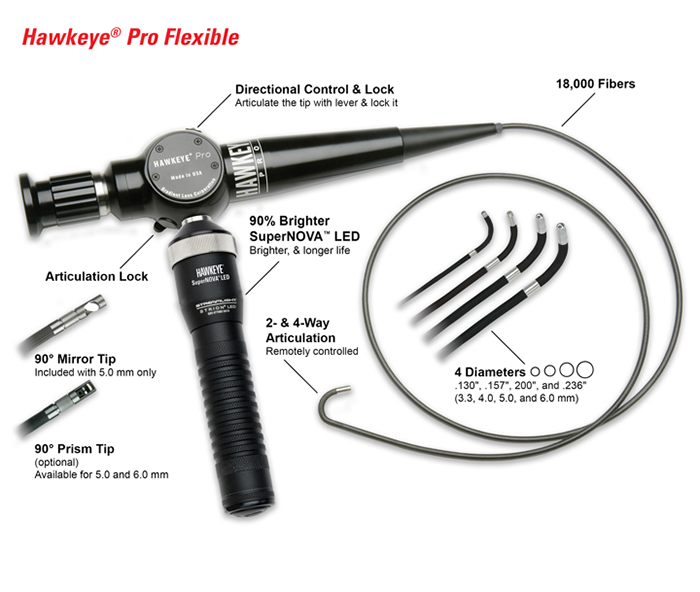

Hawkeye Pro Flexible Borescopes incorporate an 18,000 fiber acid-leached imaging bundle, delivering truly excellent image resolution, sharpness, detail and contrast. Lower cost alternatives do not deliver image quality nearly this high.

Pro Flexibles are offered in either 2 or 4-way articulation! Control the direction-of-view (DOV) of the tip over a 300° range (± 150°) using a thumb lever on the aluminum borescope body. The lever can also be locked to hold a particular view.

The Hawkeye Pro Flexible sets a new standard of excellence in quality, at a very reasonable price.

ProFlex


Products Outside Diameter Length Articulation DOV FOV Fibers Sheath Model #
Pro Flexible 3mm Kit 0.130" (3.3 mm) 33.5" (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB3-NVK
Pro Flexible 4mm kit 0.157" (4 mm) 33.5" (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB4-NVK

Pro Flexible 5mm kit
Includes 90° Mirror Tip

0.200" (5 mm) 33.5" (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB5-NVK
Pro Flexible 6mm Kit 0.236" (6 mm) 33.5" (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB6-NVK
Pro Flexible 6mm x 4 Kit 0.236" (6 mm) 33.5" (0.85 m) 4-way 0° 45° 18,000 Tungsten PFB6-4-NVK
Pro Flexible 3mm Borescope 0.130" (3.3 mm) 33.5" (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB3
Pro Flexible 4mm Borescope 0.157" (4 mm) 33.5" (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB4
Pro Flexible 5mm Borescope
Includes 90° Mirror Tip 		0.200" (5 mm) 33.5" (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB5
Pro Flexible 6mm Borescope 0.236" (6 mm) 33.5" (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB6
Pro Flexible 6mm X 4
Borescope 		0.236" (6 mm) 33.5" (0.85 m) 4-way 0° 45° 18,000 Tungsten PFB6-4


Note: Per Hawkeye, there is a $10 drop ship fee on all items


Optics:
Direction-of-View 3.3 mm and 4 mm - 0° only; 5 mm - 6 mm - 0° with optional 90° adapters
Field-of-View All models - 70° FOV
Depth-of-View

3.3 mm scope - 10 - 50 mm
4.0 mm scope - 10 - 50 mm
5.0 mm scope - 10 - 50 mm
6.0 mm scope - 10 - 50 mm
Distal Focus Fixed focus lens set
Mechanical:
Tube Diameter

PFB3 - 3.3 mm, PFB4 - 4.0 mm, FPB5 - 5.0 mm, PFB6 - 6.0 mm

Working Length 850 mm
Insertion Tube Bend Radius PFB3 - 1.25"
PFB4 - 1.25"
PFB5 - 1.5"
PFB6 - 1.75"
Articulation PFB3, 2 way, +/- 130 degrees, PFB4, PFB5, PFB6 - 2 way, +/- 150 degrees, PFB6-4 - 4 way
Tube Construction

Stainless Steel monocoil inside watertight PVC, covered with tungsten braid
Environmental:
Operating Temperature 0° to 170° F (-18° to 77° C)
Watertight Insertion Tube Up to 1 atm/1 bar (14.7 psig); approx. 30ft. water depth
Note 1 The handpiece is splash proof only

Product Literature

Description Part # Saved Price Select Option Add to
Pro Flexible 6mm x 4 Borescope RV-HG-PFB6-4
$6,495.00
Pro Flexible 6mm Borescope RV-HG-PFB6
$5,795.00
Pro Flexible 5mm Borescope with a 90 Degree Mirror Tip RV-HG-PFB5
$5,795.00
Pro Flexible 4mm Borescope RV-HG-PFB4
$5,795.00
Pro Flexible 3mm Borescope RV-HG-PFB3
$5,795.00
Pro Flexible 6mm x 4 Kit: Tungsten Sheathed, 0.236" Diameter, 33.5" Length, 4-way articulation RV-HG-PFB6-4-NVK
$6,695.00
Pro Flexible 6mm Kit: Tungsten Sheathed, 0.236" Diameter, 33.5" Length, 2 way articulation RV-HG-PFB6-NVK
$5,995.00
Pro Flexible 5mm Kit: Tungsten Sheathed, 0.200" Diameter, 33.5" Length, 2-way articulation and Includes 90 Degree Mirror Tip RV-HG-PFB5-NVK
$5,995.00
Pro Flexible 4 mm Kit - Tungsten Sheathed, 0.157" Diameter, 33.5" Length, 2-way articulation RV-HG-PFB4-NVK
$5,995.00
Pro Flexible 3mm Kit - Tungsten Sheathed, 0.130" Diameter, 33.5" Length, 2-way articulation RV-HG-PFB3-NVK
$5,995.00
5mm, 90 Degree Prism Tip (not included in kits) RV-HG-FTP-5-90
$995.00
5mm, 90 Degree Mirror Tip (in 5mm kit only) RV-HG-MT5-PFB
$295.00
6mm, 90 Degree Prism Tip (not in kits) RV-HG-FTP-6-90
$995.00
