Hawkeye Classic Slim Borescopes


Email Print
Hawkeye Classic Slim Borescopes
Product Description
Additional Info
Product Literature

Hawkeye Classic Slim Borescopes

Overview:

Classic Slim .165" (4.20 mm)

In 1995, the first Hawkeye Precision Borescope broke new ground. Using our newly developed endoGRINs gradient index lenses, we became able to offer image quality similar to the finest borescopes made anywhere in the world and do so at one-third of the price.

Today, Hawkeye Classic Rigid Borescopes are a great value as they have always been.

Hawkeye Classic Borescopes are used by building inspectors, technicians, sportsmen, manufacturers and more.

Exceptional Value and quality have made Hawkeye Rigid Borescopes the world leader in sales of rigid borescopes.

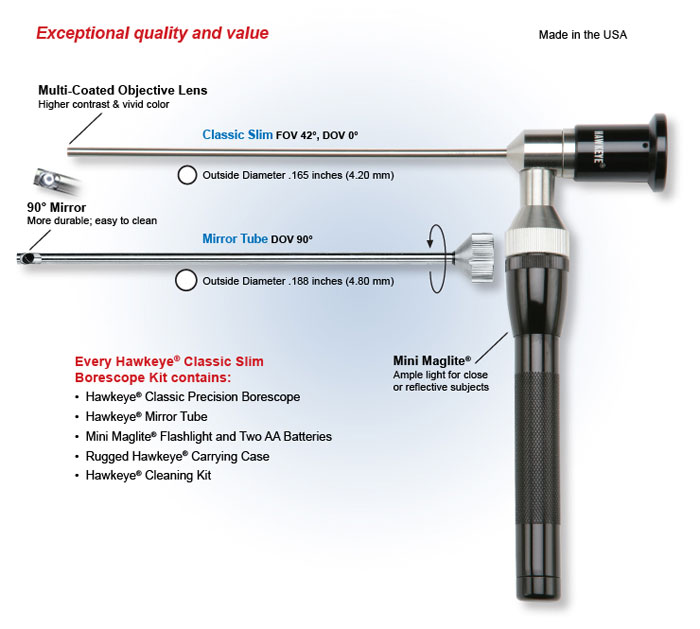

hawkeye-classic-slim-rigid-borescope

additional info tab with red arrow

Optics:
Field-of-View  42°
Direction-of-View
Relay Optics endoGRINs Glass Relay Lenses
Magnification Borescopes are not a fixed magnification like microscopes
Mechanical / Construction:
Length 7", 12", 17" and 22"
Diameter Scope: .165" (4.20 mm), w/Mirror Tube: .188" (4.80 mm)
Lightpost ACMI configuration, Diameter 0.300"
Eyecup Standard DIN, 32 mm diameter, rotate to focus
Materials:
Tube 304 Stainless Steel
All Machined Stainless Steel  303 Stainless Steel
Eyecup and Focusing Ring Aluminum, black anodized
Front WIndow AR coated optical Glass
Illumination Fiber Optical Glass
Relay Optics endoGRINs gradient index glass lenses
Environmental:
Temperature Range Official -4°F to 248°F / -20°C to 120°C
Note 1 Hawkeye Rigid Borescopes can be made to operate up to 572°F / 300°C on a custom Basis. Contact your sales representative for details.
Note 2 These scopes were not designed to operate below 0°, however, several of our customers have successfully used the scopes in liquid Nitrogen at 77 degress K.
Pressure All Hawkeye Borescopes we designed only for use at ambient pressure, however, we have several customers who have successfully used Hawkeye Borescopes at pressures up to 500 PSI and down to 10-6 Torr. As the scopes were not specifically designed for this, the operator does so at his own risk.
Chemical Resistance All Hawkeye Rigid Borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc. Exposure to acids and strong Alkali should be avoided, as it will attack the optical window.
Please Note: To add an item/multiple items to your shopping cart, check the corresponding box/boxes and click "Add To Cart"
Description
Part #
Price
Product Name Part # Price Qty
7" Slim Kit RV-HG-HS07-AF-KIT $945.00
12" Slim Kit RV-HG-HS12-AF-KIT $995.00
17" Slim Kit RV-HG-HS17-AF-KIT $1,045.00
22" Slim Kit RV-HG-HS22-AF-KIT $1,495.00
7" Slim SuperNova Kit RV-HG-HS07-AF-NVK $1,145.00
12" Slim SuperNova Kit RV-HG-HS12-AF-NVK $1,195.00
17" Slim SuperNova Kit RV-HG-HS17-AF-NVK $1,245.00
22" Slim SuperNova Kit RV-HG-HS22-AF-NVK $1,695.00
7" Slim Borescope RV-HG-HS07-AF $775.00
12" Slim Borescope RV-HG-HS12-AF $825.00
17" Slim Borescope RV-HG-HS17-AF $895.00
22" Slim Borescope RV-HG-HS22-AF $1,095.00
7" Slim Mirror Tube RV-HG-MTS07-Slim $135.00
12" Slim Mirror Tube RV-HG-MTS12-Slim $145.00
17" Slim Mirror Tube RV-HG-MTS17-Slim $155.00
22" Slim Mirror Tube RV-HG-MTS22-Slim $195.00
Hawkeye Angled Eyepiece RV-HG-AE-9003 $275.00
Aluminum Carrying Case ( w/ die cut foam insert) fits up to 22" Borescopes RV-HG-PCC $195.00
Carrying Case for up to 17" Borescopes RV-HG-HCC $145.00
