Perfect for portable Rockwell B Scale testing of aluminum, steel, brass, etc.

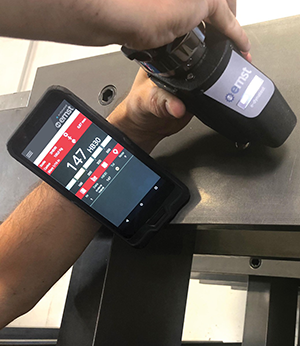

The e-dynatest stands out for its high test load of 100 kgf (980 N), making it a powerful tool for precise hardness measurements. This high test load ensures reliable and consistent measurements, as the testing process is unaffected by the surface condition of the material. It is particularly ideal for testing large pieces that are difficult to move, as it can be used directly on-site. Combined with the wireless data transfer between the test head and the tablet, the e-dynatest allows for quick, precise, and straightforward hardness testing, with results displayed directly on the 6-inch tablet display. The wireless connection ensures that data is captured without delay and can be evaluated in real-time. The Android app allows test results to be not only stored but also efficiently managed, shared, and printed.
| Working principle | Rockwell |
| Standard scales | HRC (10-70) - 1HB30 (160-700) - 2HB30 (100-500) |
| Accuracy | HRC 0,3 HB < 1% |
| Preload | 3,45 kgf (33.8 N) |
| Loads | 100 kgf (980 N) |
| Load Application Method | Manual |
| Min. Measurable Diameter | 25 mm standard 12 mm with special penetrator shroud |
| Selectable Functions | Scales, tolerances, calibration, test load, stats, language, sequence, files, materials, partial average, clock, auto off timer, add notes, barcode scanner, geo-localization |
| Output Interfaces | Wi-Fi, Bluetooth, micro USB, micro SD slot |
| Display | Touch-screen 6" tablet display |
| Languages | Italian, English, German, Other languages on request |
| Weight | Mechanical unit 2050g Electronic unit 360g |
| Compliance and Certification | DIN 50157 | ASTM E-110 | ACCREDIA certificate upon request |
For more information on purchasing the e-dynatest, click on the link below
