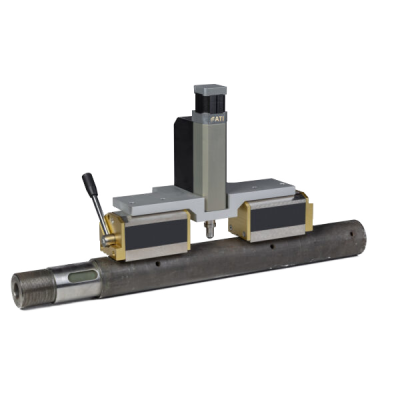

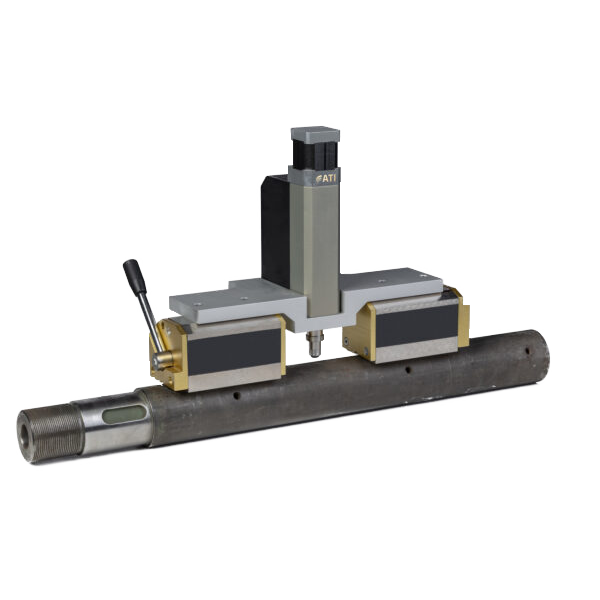

The ATI MAG is a portable device specifically developed for Rockwell hardness testing, fully compliant with ASTM E18 and ISO 6508 standards. Equipped with a magnetic clamping base, which guarantees secure and stable positioning throughout the entire test cycle, constant contact with the sample surface. Its compact dimensions and lightweight design make it ideal for use in diverse testing environments, all while maintaining high precision. The instrument delivers outstanding stability on a variety of surfaces—including cylindrical or elongated components like pipes—thanks to its automatic alignment system. The measurement process is fully automated, and accurate results are delivered from the very first test, with no need for recalibration or adjustment.
ATI MAG utilizes an advanced electronic load cell combined with intelligent control software to manage the entire testing sequence automatically. This results in a rapid, dependable testing process with minimal operator involvement.
The instrument features a robust double magnetic clamping base, ensuring exceptional stability throughout the test, even under difficult working conditions. This stability contributes to consistently accurate and repeatable results.
With just a single command to start the test, ATI MAG automatically identifies the sample surface and adjusts the testing procedure accordingly. This intelligent feature streamlines the operation, increasing overall testing efficiency.
The system detects and compensates for any structural deflections in the test piece, maintaining high accuracy in all situations. This ensures that external influences like vibration or surface irregularities do not affect the measurement outcome.

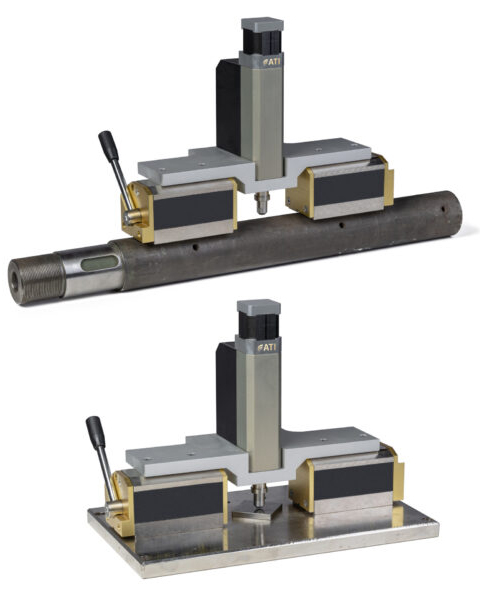

The ATI MAG is equipped with a double magnetic clamping system. This clamping system ensures perfect stability during the entire test cycle, and prevents accidental movement in the event of involuntary impacts. This feature enhances performance, providing consistent and accurate results in any conditions. ATI MAG is a portable hardness tester can be used to perform hardness tests on samples of any shape and size.

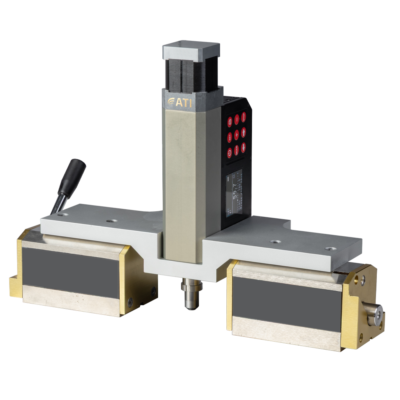

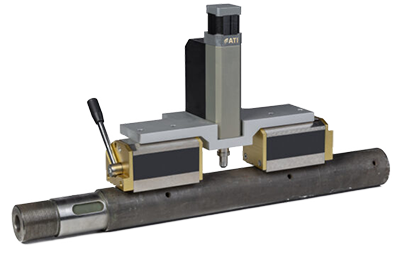

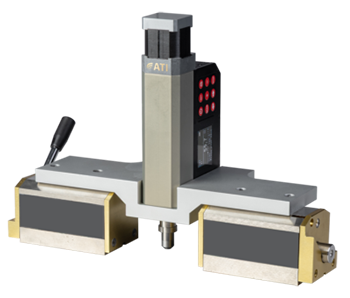

ATI M70 : double magnetic clamping base for round shape samples of large or small diameters

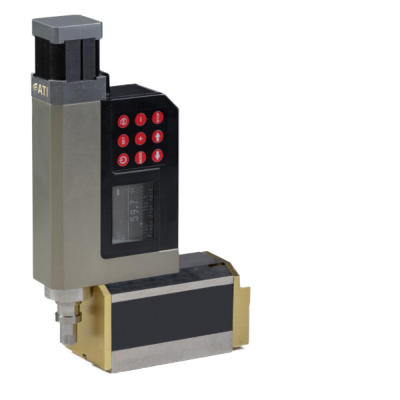

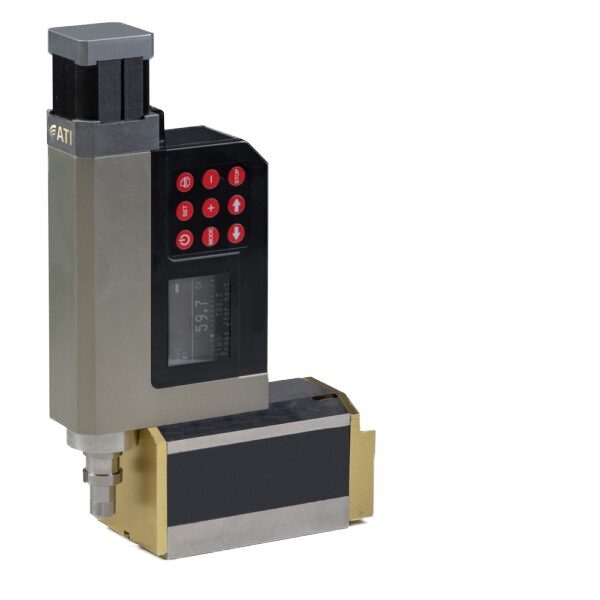

ATI M30 : single magnetic clamping base (300mm) for HR/HB measurements up to 15 mm sample thickness
| Compliance Standards: | ASTM E18, ISO 6508 |
| Preload: | 10 Kg (98.1 N) |
| Rockwell Test Force: | 60 Kg (588.4 N), 100 Kg (980.7 N), 150 Kg (1471 N) |
| Feasible Tests: | HRA, HRB, HRC, HRD, HRF, HRG |
| Accuracy: | 0.0001 mm |
| Resolution: | 0.1 HR |
| Test Cycle: | Automatic test cycle with automatic recognition of sample surface |
| Principle of Operation: | Load Cell System |
| Data Memory: | 100 test results |
| Data Output: | USB to PC |
| Printer Connection: | Bluetooth to printer |
| Power Supply: | Rechargeable Li-ion battery 3000mAh, 3.6V |
| Continuous Working Time: | 6 hours |
| Charging Time of Battery: | 2 hours |
| Dimensions: | 200 x 110 x 46 mm |
| Weight: | 2 Kg (10 Kg including the magnet) |
| Magnetic Clamping Bases Available: | ATI M30 : single magnetic clamping base (300mm) for HR/HB measurements up to 15 mm sample thickness |
| ATI M70 : double magnetic clamping base for round shape samples of large or small diameters |
