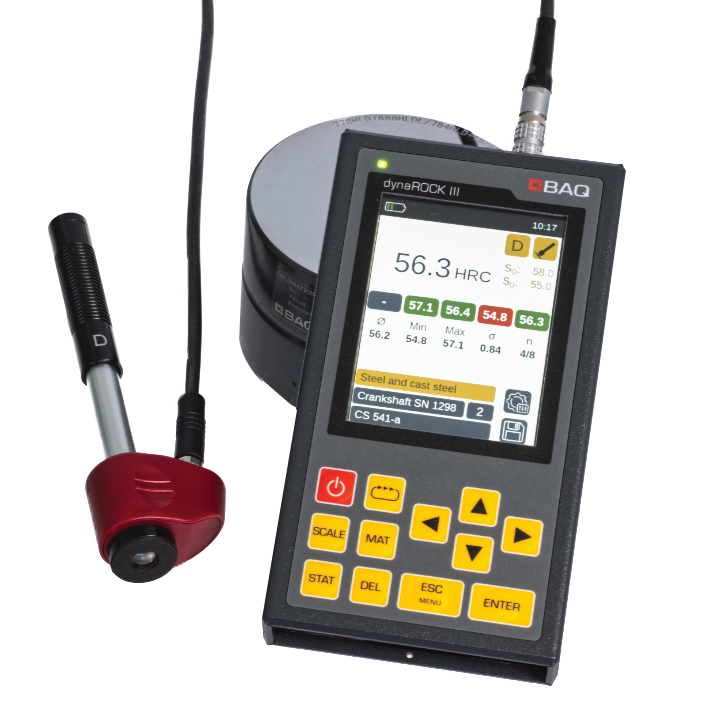

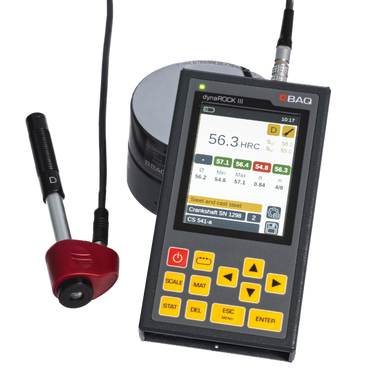

BAQ dynaROCK III Universal Rebound Hardness Tester

BAQ dynaROCK III Universal Rebound Hardness Tester

Made in Germany, Easy Operation with High Precision & Reliability

Fast and Easy Hardness Testing

Made in Germany and designed and manufactured by Hardness Testing experts, the dynaROCK III works according to the Leeb rebound hardness test method for metallic materials. The dynaROCK III combines easy operation with high precision and reliability. For different applications, six impact device types are available. The type of connected impact device is identified automatically.

Updated features from the dynaROCK II Include:

  • USB-C interface for data transfer to PC and USB flash drive
  • LED Status
  • Graphic display of measured values
  • Verification Mode

Features

  • Measuring method according to DIN EN ISO 16859 and ASTM A956
  • Robust metal casing
  • Large LCD color display
  • Embedded Li-Ion battery
  • 12 groups of materials
  • Extensive storage and statistical functions
  • USB-C interface for data transfer to PC and USB flash drive
  • LED Status (Error logfile, Key lock)
  • Graphic display of measured values
  • Verification Mode



Impact Devices

6 impact devices are available for varying applications:

  1. Type D:
    Standard impact device for most hardness testing tasks.
  2. Type DC:
    Extremely short impact device for measurements at difficult-to-access locations or in pipes.
  3. Type C:
    Impact device with reduced impact energy, e.g., for measurements on surface-hardened parts.
  4. Type D+15:
    Impact device with small placement surface.
  5. Type DL:
    Impact device with longer impact body.
  6. Type G:
    Impact device with increased impact energy for measurements on heavy castings and forged parts.

Technical Specifications

dynaROCK III Specifications

Measuring Range According to DIN EN ISO 16859 and ASTM A956
Test Materials 12 material groups
Specimen Requirements Minimum weight of test specimen on stable support: 4.4 lbs. (2 kg)
Hardness Scales HRC, HB, HV, HRB, HL, HS and tensile strength
Display 3.5“-TFT-LCD Color display, 640 x 480 pixels
Statistics Average value, standard deviation, minimum, maximum
Memory 2 GB RAM
8 GB eMMC-Flash-Memory
(> 1,000,000 measurements)
Data Transfer Direct protocol printout with mini thermal printerPC-Software
Data transfer on USB flash device (Data transfer to PC)
(Data transfer via Bluetooth)
Interfaces 1x USB Type C (charging and data transfer)
1x probe connector
Bluetooth 5.0, BLE
Battery Built-in Li-ion battery, 6800 mAh
Operating Time Approx. 12 hrs. (is still being precisely defined)
Operating Temperature 32° to 122°F (0° to 50°C)
Storage Temperature -4° to 140°F (-20° to 60°C)
Languages Menu: English, German, French, Italian, Spanish, Polish, Russian & Turkish
Manual: English, German, French, Italian, Spanish
Dimensions 6.06" x 3.31" x 0.91" (154 x 84 x 23 mm)
Weight 15.17 oz. (430 g)

Kit Includes

  • Basic device
  • Impact device type D with cable
  • Calibration certificate
  • Calibrated comparison hardness block
  • Cleaning brush
  • USB-stick with manuals
  • USB cable
  • Charging adapter
  • Case





Additional Accessories

  • Support rings for measurements on curved surfaces (concave/convex)
  • Hardness comparison blocks with calibration certificate for impact devices Dxx and C in 5 different hardness
    • HVP-HLD & HVP-HLD-Z:
      • Engraved hardness scales: HLD, HLDL, HLD+15, HLC
      • Possible hardness values: 530±40HLD, 630±40HLD, 790±40HLD
  • Hardness comparison blocks with calibration certificate for impact device G in 2 different hardness
    • HVP-HLG & HVP-HLG-Z:
      • Possible hardness values: 500±40HLG, 590±40HLG

Product Literature

Description Part # Saved Price Select Option Add to

Instrument Kits
BAQ Rebound hardness tester dynaROCK III with impact device D, test block, USB charger, direct data transfer to a USB flash drive, test certificate, robust case. HT-BAQ-22-100
$2,695.00
BAQ Rebound hardness tester dynaROCK III without impact device, including test block, USB charger, direct data transfer to a USB flash drive, test certificate, robust case HT-BAQ-22-100-xD1
$1,895.00
BAQ Rebound hardness tester dynaROCK III without impact device and test block, including USB charger, direct data transfer to a USB flash drive, test certificate, robust case HT-BAQ-22-100-xD2
$1,850.00

Impact Devices
BAQ Impact device D for hardness tester dynaROCK. Standard impact device for most hardness testing tasks. HT-BAQ-22-120
$1,175.00
BAQ Impact device DL for hardness tester dynaROCK Impact device with longer impact body. The diameter of the front pipe is 4.2 mm. HT-BAQ-22-121
$2,025.00
BAQ Impact device DC for hardness tester dynaROCK. Extremely short impact device for measurements at inaccessible locations or in pipes. HT-BAQ-22-122
$1,175.00
BAQ Impact device D+15 for hardness tester dynaROCK The impact device has a recessed reactance coil and a smaller placement surface (11 mm x 14 mm instead of Ø 20mm) for hardness measuring in slots and deepened areas. HT-BAQ-22-123
$1,305.00
BAQ Impact device C for hardness tester dynaROCK Impact device with lower impact energy e.g. for measurements on surface-hardened parts. HT-BAQ-22-124
$1,175.00
BAQ Impact device G for hardness tester dynaROCK Impact device with increased impact energy e.g. for measurements on heavy casting and forged parts. Measurement only in the Brinell range up to 650 HB. HT-BAQ-22-125
$2,330.00
BAQ Impact Body type D (Formally R-RP-SK-D-EN) HT-BAQ-R-RP-SK-D
$225.00
BAQ Impact Body type DL (Formally R-RP-SK-DL-EN) HT-BAQ-R-RP-SK-DL
$470.00
BAQ Impact Body type G (Formally R-RP-SK-G-EN) HT-BAQ-R-RP-SK-G
$470.00
BAQ Connection cable dynaROCK III - Impact device Lemo push-pull connector and Binder screw lock HT-BAQ-R-RP-KABEL-V2
$255.00

Test Blocks
BAQ Test Block for Leeb Hardness Tester - 3.5"x2.2" (90x55mm) Diameter, 6 lbs. (2.73kg); Engraved hardness scales: HLD, HLDL, HLD+15, HLC; Possible hardness values: 530 +/- 40HLD, 630 +/- 40HLD, 790 +/- 40HLD (Formally HVP-HLD-EN) HT-BAQ-HVP-HLD
$455.00
BAQ Test Block for Leeb Hardness Tester with Dakks or ASTM Certificate - 3.5"x2.2" (90x55mm) Diameter, 6 lbs. (2.73kg); Engraved hardness scales: HLD, HLDL, HLD+15, HLC; Possible hardness values: 530 +/- 40HLD, 630 +/- 40HLD, 790 +/- 40HLD HT-BAQ-HVP-HLD-Z
$685.00
BAQ Test Block for Leeb Hardness Tester - 4.7"x2.8" (120x70mm) Diameter, 13.6 lbs. (6.17kg); Possible hardness values: 500 +/- 40HLG, 590 +/- 40HLG HT-BAQ-HVP-HLG
$710.00
BAQ Test Block for Leeb Hardness Tester with Dakks or ASTM Certificate - 4.7"x2.8" (120x70mm) Diameter, 13.6 lbs. (6.17kg); Possible hardness values: 500 +/- 40HLG, 590 +/- 40HLG HT-BAQ-HVP-HLG-Z
$925.00

Additional Accessories
BAQ Set of support rings for convex and concave surfaces, 12 pieces (Formally 21-110-EN) HT-BAQ-21-110
$435.00
BAQ Mobile printer for dynaROCK II HT-BAQ-21-112
$625.00
BAQ USB Charger for Hardness Tester dynaROCK II including cable HT-BAQ-21-130
$155.00
BAQ Calibration of Leeb hardness tester including test measurements on certified test blocks and BAQ quality certificate HT-BAQ-R-RP-KAL-01
$160.00
BAQ DAkkS calibration for Leeb hardness tester with impact device D according to DIN EN ISO 16859-2 made by an official DKD accredited laboratory HT-BAQ-R-RP-KAL-02-D
$785.00
BAQ DAkkS calibration for Leeb hardness tester with impact device G according to DIN EN ISO 16859-2 made by an official DKD accredited laboratory HT-BAQ-R-RP-KAL-02-G
$965.00
BAQ ASTM calibration for Leeb hardness tester with impact device D according to ASTM A 956 made by an official DKD accredited laboratory HT-BAQ-R-RP-KAL-03
$625.00
