Golden Engineering XRS3

Golden Engineering XRS3

Portable Pulsed X-Ray

Powerful, 270 kV Pulsed X-ray Unit

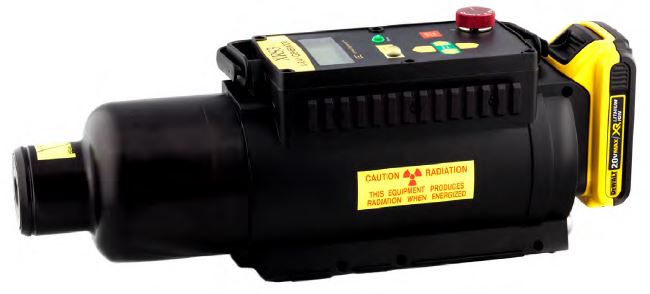

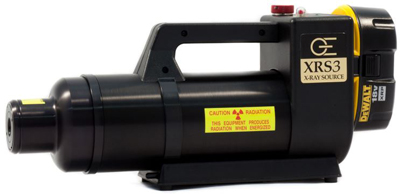

The XRS3 is a 270 kV, battery powered, pulsed X-ray generator used in security and light industrial applications. The XRS3 is the most versatile unit because it provides exceptional penetrating ability, up to 1" of steel when used with various digital imaging systems, in a compact package. The compact design features a battery pack, sturdy glass tube, high voltage head and electronic controls in a single package that weighs less than 12 pounds. Spare battery packs are easy to come by because the XRS3 is powered by the same commercially available battery packs that power DeWalt cordless tools. The XRS3 shares the same electronic controls and battery as the XR200 which enhances the versatility of both models.

It can withstand extreme environments including arctic and desert conditions. The XRS3 is compatible with numerous digital imaging systems to make a powerful and highly portable X-ray system.



Features

  • Pulse setting up to 999 pulses
  • Variable pulse rate (1 pulse per second or slower)
  • Set multiple pulse trains
  • Select time delay between pulse trains
  • Records total life pulses on source
  • Two resettable pulse trackers
  • Retrofit existing XRS3 X-Ray Generators
  • Lemo "K" Series circular connector
  • 21mm Picatinny Rails for mounting accessories
  • New hassle-free tripod mount
  • 5500 pulses per battery charge
  • Battery includes charge indicator



Highly Portable

  • Source with battery is 9% lighter than previous versions
  • Compact size is 13% smaller in volume
  • Battery weighs less than 1 lb. (.45 kg)

Technical Specifications

XRS3 Specifications

Power: DeWalt 18V-20V Li-Ion Battery

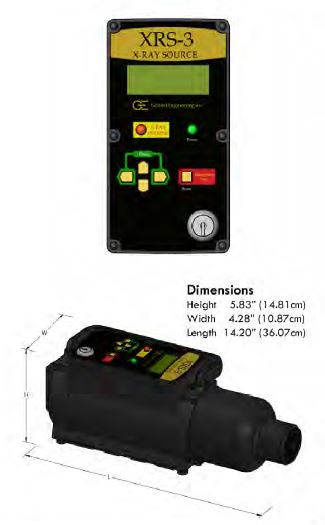

Weight: 11.8 lbs. (5.3 kg) including battery
Output Dose: Avg. 2.6 mR/pulse measured 12" from source
Pulse Rate: 15 pulses per second
Source Size: 1/8" (3mm)
Max. Photon Energy: 270 kVp
Pulse Width: 25 nanoseconds
Beam Angle: 40 degree standard
Current Draw: 20 amps
Max Duty Cycle: 200 pulses per 4 minutes
Warm Up: None Required
Warranty: 1 yr. limited parts, labor, service

Purchasing Options

XRS3 Options

Item Description Part #
XRS3 X-RAY SOURCE (80 CHAR) 7PK 20V 1340200
XRS3 X-RAY (80 CHARACTER) 20V KIT 110V: NO CASE (SOURCE, 2 - 20V BATTERIES, 110V CHARGER) 1320210
XRS3 X-RAY (80 CHAR) 20V KIT 220V: NO CASE (SOURCE, 2 - 20V BATTERIES, 220V CHARGER) 1320220
XRS3 X-RAY (80 CHAR)20V KIT 110V: CABLE & CASE (SOURCE, 2 - 20V BATTERIES, 110V CHARGER, CABLE & CASE) 1320230
XRS3 X-RAY (80 CHAR) 20V KIT 220V: CABLE & CASE (SOURCE, 2 - 20V BATTERIES, 220V CHARGER, CABLE & CASE) 1320240
XRS3 X-RAY (80 CHAR)20V KIT: CABLE & CASE (SOURCE, CABLE & CASE) 1320260
XRS3 7PK 20V X-RAY KIT 110V: CASE NO REMOTE CABLE (SOURCE, 2 - 20V BATTERIES, 110V CHARGER, ADAPTER CABLE & CASE) 1320265
XRS3 7PK 20V X-RAY KIT 220V: CASE NO REMOTE CABLE (SOURCE, 2 - 20V BATTERIES, 220V CHARGER, ADAPTER CABLE & CASE) 1320266
XRS3RA X-RAY SOURCE 7PK 20V 1342200
XRS3RA X-RAY (80 CHAR) 20V KIT 110V: NO CASE (SOURCE, 2 - 20V BATTERIES, 110V CHARGER) 1322210
XRS3RA X-RAY (80 CHAR) 20V KIT 220V: NO CASE (SOURCE, 2 - 20V BATTERIES, 220V CHARGER) 1322220
XRS3RA X-RAY (80 CHAR) 20V KIT 110V: CABLE & CASE (SOURCE, 2 - 20V BATTERIES, 110V CHARGER, CABLE & CASE) 1322230
XRS3RA X-RAY (80 CHAR) 18V-20V KIT 220V: CABLE & CASE (SOURCE, 2 - 20V BATTERIES, 220V CHARGER, CABLE & CASE) 1322240
Accessories & Spare Parts for XRS3 and XRS3RA X-Ray Sources

Item Description Part #
BATTERY DeWalt® 20V 2 Ah Li-Ion SLIDE ON 1800106
BATTERY CHARGER DeWalt® 12V-20V SLIDE-ON 110V 1800151
BATTERY CHARGER DeWalt® 12V-20V SLIDE-ON 220V 1800164
REMOTE CABLE ASM 7PK (7 PIN K SERIES LEMO) 1809030
REMOTE CABLE ASM 5PK (5 PIN K SERIES LEMO) 1809022
REMOTE CABLE ASM 5PB (5 PIN B SERIES LEMO) 1809013
REMOTE CABLE ASM 7PK NO DELAY (7 PIN K SERIES LEMO) 1809035
REMOTE CABLE ASM 5PK NO DELAY (5 PIN K SERIES LEMO) 1809027
REMOTE CABLE ASM 5PB NO DELAY (5 PIN B SERIES LEMO) 1809016
TRIPOD MOUNT (20V XR200, XRS3) 4000352
TRIPOD KIT STANDARD FOR XR200, XRS3, XRS3RA 1803040
XRS3 SNAP ON LEAD COLLIMATOR CAP 20 degree 1800281
XRS3 SNAP ON LEAD COLLIMATOR CAP 30 degree 1800282
XRS3 SNAP ON LEAD COLLIMATOR CAP Rectangle 1800283
10 MIL SNAP ON COPPER FILTER (XR150, XR200, XRS3) 1800210
30 MIL SNAP ON COPPER FILTER (XR150, XR200, XRS3) 1800230
40 MIL SNAP ON COPPER FILTER (XR150, XR200, XRS3) 1800240
60 MIL SNAP ON COPPER FILTER (XR150, XR200, XRS3) 1800260
LEAD COLLIMATOR CAP SOLID (XR150, XR200, XRS3) 1800265
XRS3 Collimator Set Snap-on Lead Caps & Copper Filters (7 pcs) 1800280
LASER POINTER XRS3 1800303
XRS3 / XRS4 TUBE REPLACEMENT KIT 1000005
XRS3 / XRS4 SPARE TUBE 2200000
BOTTLE OF DIALA OIL XRS3 & XRS4 TUBE REPLACEMENT 8401000
XRS3 COLLIMATOR ASM 40 DEGREE 2600010
XRS3 COLLIMATOR ASM 60 DEGREE 2600020
XRS3 COLLIMATOR ASM 85 DEGREE 2600030
XRS3 14V TO 20V ELEC UPGRADE WITH 7PIN K W/ ADAPTER CABLE 9901937
XRS3 18V TO 20V ELEC UPGRADE WITH 7PIN K W/ ADAPTER CABLE 9901933
20V 5PIN K UPGRADE TO 7PIN K CONNECTOR W/ ADAPTER CABLE 9901999

Product Literature

Description Part # Saved Price Select Option Add to
Golden Engineering XRS3 X-Ray (80 Character) 20V Kit, 110V Includes: XRS3 Unit, Two 20V Batteries, 110V Charger, Cable & Case RT-GE-1320230
Request Pricing
Golden Engineering XRS3 X-ray (80 Character) 20V Kit, 220V Includes: XRS3 Unit, Two 20V Batteries, 220V Charger, Cable & Case RT-GE-1320240
Request Pricing
Golden Engineering XRS3RA X-Ray (80 character) 20V Kit 110V Includes: XRS3RA Unit, Two 20V Batteries, 110V Charger, Cable & Case RT-GE-1322230
Request Pricing
Golden Engineering XRS3RA X-Ray (80 character) 18V-20V Kit 220V Includes: XRS3RA Unit, Two 20V Batteries, 220V Charger, Cable & Case RT-GE-1322240
Request Pricing
