Golden Engineering XRS-3

Golden Engineering XRS-3

Portable Pulsed X-Ray

Golden Engineering XRS-3

golden-engineering-xrs3

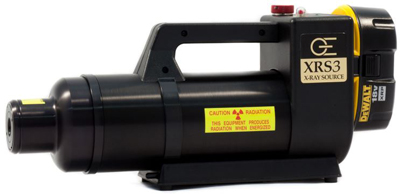

The XRS-3 is a 270 kV, battery powered, pulsed X-ray generator used in security and light industrial applications. The XRS-3 is the most versatile unit because it provides exceptional penetrating ability, up to 1" of steel when used with various digital imaging systems, in a compact package. The compact design features a battery pack, sturdy glass tube, high voltage head and electronic controls in a single package that weighs less than 13 pounds. Spare battery packs are easy to come by because the XRS-3 is powered by the same commercially available battery packs that power DeWalt cordless tools. The XRS-3 shares the same electronic controls and battery as the XR200 which enhances the versatility of both models.

It can withstand extreme environments including arctic and desert conditions. The XRS-3 is compatible with numerous digital imaging systems to make a powerful and highly portable X-ray system.

Key Features & Benefits:

Features:

  • Maximum 270 kVp
  • Weather-resistant housing
  • 18V DeWalt battery
  • Simple variable pulse setting
  • Compatible with CR and DR digital technology
  • Removable tripod mount


Safe:

  • Minimal disruption to facility operations
  • 20 ft. stand-off distance behind the unit
  • Contains no hazardous material


Highly Portable:

  • 13 lbs. unit with significant penetrating capability
  • High energy output voltage with minimal input voltage
  • Power, control and tube in a single package design


Cost Effective:

  • Affordable alternative technology
  • Minimal regulatory costs
  • Significant time and labor savings
xrs3-x-ray-dimensions


Specifications:

Power: DeWalt DC9096 18V Battery
Weight: 13 lbs. (5.91 kg) including battery
Output Dose: 2.7 mR / pulse min, measured 12" from source
Pulse Rate: 15 pulses per second
Source Size: 1/8" (3mm)
Max Photon Energy: 270 kVp
Pulse Width: 25 nanoseconds
Beam Angle: 40 degree standard / 60 degree available upon request
Current Draw: 20 amp
Max Duty Cycle: 200 pulses per 4 minutes
Warm Up: None Required
Warranty: 1 year limited parts, labor and service


Product Literature

Description Part # Saved Price Select Option Add to
XRS-3 X-ray (80 Character) 18-20V Kit, 110V Includes: XRS-3 Unit, Two 18-20V Batteries, 110V Charger - No Cable & Case RT-GE-1320210 Request Pricing
XRS-3 X-ray (80 Character) 18-20V Kit, 220V Includes: XRS-3 Unit, Two 18-20V Batteries, 220V Charger - No Cable & Case RT-GE-1320220 Request Pricing
XRS-3 X-ray (80 Character) 18-20V Kit, 110V Includes: XRS-3 Unit, Two 18-20V Batteries, 110V Charger, Cable & Case RT-GE-1320230 Request Pricing
XRS-3 X-ray (80 Character) 18-20V Kit, 220V Includes: XRS-3 Unit, Two 18-20V Batteries, 220V Charger, Cable & Case RT-GE-1320240 Request Pricing
