Golden Engineering XR200

Golden Engineering XR200

Pulsed X-Ray Machine

Portable 150 kV Pulsed X-Ray Unit

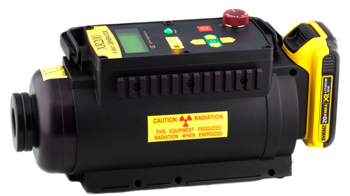

The XR200 is a 150kV, battery powered, pulsed X-ray generator used in security and light industrial applications. The option of use with conventional radiographic film, instant radiographic film or digital inspection systems, provides users with the flexibility to develop a complete radiographic system best suited to their individual needs.

Sharing the same electronics, housing design and battery pack as the XRS3 generator enhances the versatility of the XR200. A field replaceable tube and modular concept make it easy to service and maintain. The robust single package design withstands the extreme environments that field portable X-ray generators commonly encounter. The generator is powered by a DeWalt battery pack. A pulse rate of 25 pulses per second makes the XR200 the fatest of all Golden Engineering models.



Features

  • Pulse setting up to 999 pulses
  • Variable pulse rate (1 pulse per second or slower)
  • Set multiple pulse trains
  • Select time delay between pulse trains
  • Records total life pulses on source
  • Two resettable pulse trackers
  • Retrofit existing XR200 X-Ray Generators
  • Lemo "K" Series circular connector
  • 21mm Picatinny Rails for mounting accessories
  • New Hassle-free Tripod Mount
  • 6000 pulses per battery charge
  • Battery includes charge indicator


Highly Portable

  • Source with battery is 8% lighter than previous versions
  • Compact size is 13% smaller in volume
  • Battery weighs less than 1 lb. (.45 kg)

Technical Specifications

XR200 Specifications

Power: DeWalt 20V Li-Ion Battery
Weight: 10.7 lbs. (4.8 kg) including battery
Output Dose: Avg. 2.6 mR/pulse measured 12" from source
Pulse Rate: 10 pulses per second
Source Size: 1/8" (3mm)
Max. Photon Energy: 150 kVp
Pulse Width: 50 nanoseconds
Beam Angle: 40 degree standard
Current Draw: 9 amps
Max. Duty Cycle: 200 pulses per 4 minutes
Warm Up: None Required
Warranty: 1 yr. limited parts, labor, service

Purchasing Options

XR200 Options

Item Description Part #
XR200 X-RAY SOURCE (80 CHAR) 7PK 20V  1240200
XR200 X-RAY (80 CHAR)20V KIT 110V: NO CASE (SOURCE, 2 - 20V BATTERIES, 110V CHARGER)  1220210
XR200 X-RAY (80 CHAR)20V KIT 220V: NO CASE (SOURCE, 2 - 20V BATTERIES, 220V CHARGER)  1220220
XR200 X-RAY (80 CHAR) 20V KIT 110V: CABLE & CASE (SOURCE, 2 - 20V BATTERIES, 110V CHARGER, CABLE & CASE) 1220230
XR200 X-RAY (80 CHAR)20V KIT 220V: CABLE & CASE (SOURCE, 2 - 20V BATTERIES, 220V CHARGER, CABLE & CASE) 1220240
XR200 X-RAY (80 CHAR)20V KIT: CABLE & CASE (SOURCE, CABLE & CASE)  1220260
XR200 7PK 20V X-RAY KIT 110V: CASE NO REMOTE CABLE (SOURCE, 2 - 20V BATTERIES, 110V CHARGER, ADAPTER CABLE & CASE)  1220265
Accessories & Spare Parts for XR200 X-Ray Sources

Item Description Part #
BATTERY DeWalt® 20V 2 Ah Li-Ion SLIDE ON 1800106
BATTERY CHARGER DeWalt® 12V-20V SLIDE-ON 110V 1800151
BATTERY CHARGER DeWalt® 12V-20V SLIDE-ON 220V 1800164
REMOTE CABLE ASM 7PK (7 PIN K SERIES LEMO) 1809030
REMOTE CABLE ASM 5PK (5 PIN K SERIES LEMO) 1809022
REMOTE CABLE ASM 5PB (5 PIN B SERIES LEMO) 1809013
REMOTE CABLE ASM 7PK NO DELAY (7 PIN K SERIES LEMO) 1809035
REMOTE CABLE ASM 5PK NO DELAY (5 PIN K SERIES LEMO) 1809027
REMOTE CABLE ASM 5PB NO DELAY (5 PIN B SERIES LEMO) 1809016
TRIPOD MOUNT (20V XR200, XRS3) 4000352
TRIPOD KIT STANDARD FOR XR200, XRS3, XRS3RA 1803040
XR200 SPARE TUBE 2200020
XR200 SNAP ON LEAD COLLIMATOR CAP 20 degree 1800271
XR200 SNAP ON LEAD COLLIMATOR CAP 30 degree 1800272
XR200 SNAP ON LEAD COLLIMATOR CAP CAP Rectangle 1800273
COLLIMATOR STANDARD FOR XR200 4600110
10 MIL SNAP ON COPPER FILTER (XR150, XR200, XRS3) 1800210
30 MIL SNAP ON COPPER FILTER (XR150, XR200, XRS3) 1800230
40 MIL SNAP ON COPPER FILTER (XR150, XR200, XRS3) 1800240
60 MIL SNAP ON COPPER FILTER (XR150, XR200, XRS3) 1800260
LEAD COLLIMATOR CAP SOLID (XR150, XR200, XRS3) 1800265
XR200 Collimator Set Snap-on Lead Caps & Copper Filters (7 pcs) 1800270
LASER POINTER XR200 1800302
XR200 14V TO 20V ELEC UPGRADE WITH 7PIN K W/ ADAPTER CABLE 9901927
XR200 18V TO 20V ELEC UPGRADE WITH 7PIN K W/ ADAPTER CABLE 9901923
20V 5PIN K UPGRADE TO 7PIN K CONNECTOR W/ ADAPTER CABLE 9901999
Description Part # Saved Price Select Option Add to
Golden Engineering XR200 X-ray (80 Char) 20V Kit, 110V Includes: XR200 Unit, Two 20V Batteries, 110V Charger, Cable & Case RT-GE-1220230 Request Pricing
Golden Engineering XR200 X-ray (80 Char) 20V Kit, 220V Includes: XR200 Unit, Two 20V Batteries, 220V Charger, Cable & Case RT-GE-1220240 Request Pricing
