Golden Engineering XR150 Series

Golden Engineering XR150 Series

Powerful & Portable Pulsed X-Ray

The XR150 is a 150kV, battery powered, pulsed X-ray machine used primarily for security applications. The XR150 has been modified from its original version in 1993 three times, its lastest modification in 2016. The XR150 is the smallest portable X-ray machine in the Golden Engineering product line. This sleeker design makes it easier to slip the XR150 into your pocket. Multiple connection points allow operators to use various fasteners to attach the XR150 to belts, zippers or packs. The updated design greatly enhances the user interface capabilities and adds two DeWalt battery pack options; 12V or 20V.

The menu based electronics allow operators to enter up to 999 counts in multiple pulse trains. Operators can also slow the pulse rate and even pulse the generator continuously at a slower rate. A life time pulse counter displays the total number of pulses fired on the generator and a resettable pulse counter can track the number of pulses from a certain event.



New Features:

  • 20V DeWalt battery pack
  • Larger 80 character LCD

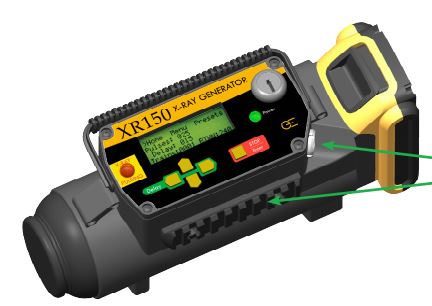

  • Updated head design:
    • Improved output stability
    • 50% more penetrating ability - 3/4" of steel
  • Uses pulses instead of counts
  • Total pulse count tracker on-board
  • Easy access remote cable connector
  • Easily removable top plate
  • Field upgradeable firmware
  • Consistent interface with other Golden models

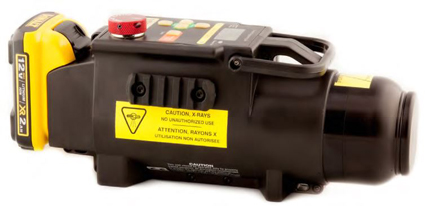

  XR150 12V





XR150 20V



Key Features & Benefits

Features

  • Pulse setting up to 999 counts
  • Program countdown delay timing (5 - 240 seconds)
  • Set multiple pulse trains
  • Select time delay between pulse trains
  • Records total life pulses on source
  • Resettable pulse tracker
  • Select 1 or 3 pulses per count in software
  • Variable pulse rate (1 pulse per second or slower)
  • DeWalt battery and charger (110VAC and 220VAC available)
  • Retro-fit existing XR150 Generators
  • 21mm Picatinny Rail option for mounting accessories
  • Battery charges in 40 minutes
  • Easy grip housing with removable handle
  • Threaded insert for tripod
  • Tie off points for custom handles and fasteners


Highly Portable

  • Source with battery is 20% lighter than previous versions
  • Kits weighs 13.4 lbs; 32% less than previous versions
  • Compact case size is 35% smaller in volume - 17" x 7" x 13"
  • Battery weighs less than 0.5 lbs. (0.23 kg)

Technical Specifications

XR150 Specifications

  XR150-20V XR150-12V

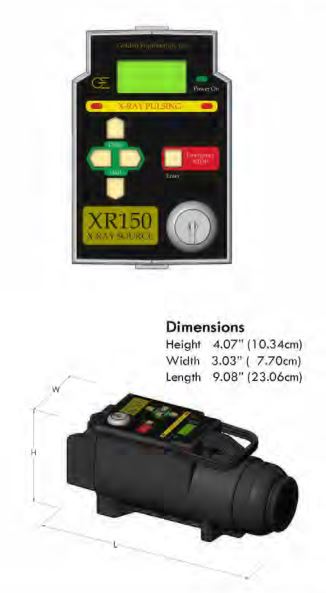

Dimensions (with battery, Picatinny Rails and no key): 10.49" x 3.54" x 4.71"
(26.65 x 8.99 x 11.96 cm)
10.58" x 3.90" x 4.31"
26.87 x 9.91 x 10.95 cm)
Weight (with battery): 5.7 lbs. (2.58 kg) 4.9 lbs. (2.22 kg)
Output Dose: 2.0 - 2.8 mR per pulse 0.75 - 1.3 mR per pulse
Penetration: 3/4" (1.91 cm) steel 1/2" (1.27 cm) steel
Pulse Rate: 10 pulses per second 12 pulses per second
Pulses per Battery Charge: 9000 + 6000
Minimum Standby Time: 10 hours 10 hours
IP Rating: IP 54 IP 54
LCD: 80 character 16 character
Duty Cycle: 200 pulses 4 minutes 300 pulses 4 minutes

Purchasing Options

XR150 Options

Item Description Part #
XR150 X-RAY SOURCE 20V 7PK 1141200
XR150 20V X-RAY 110V KIT: NO CASE (SOURCE, 2 - 20V Li-Ion BATTERIES, 110V CHARGER) 1111210
XR150 20V X-RAY KIT 220V: NO CASE (SOURCE, 2 - 20V Li-Ion BATTERIES, 220V CHARGER) 1111220
XR150 20V X-RAY KIT 110V: CABLE & CASE (SOURCE, 2 - 20V Li-Ion BATTERIES, 110V CHARGER, CABLE & CASE) 1111230
XR150 20V X-RAY KIT 220V: CABLE & CASE (SOURCE, 2 - 20V Li-Ion BATTERIES, 220V CHARGER, CABLE & CASE) 1111240
XR150 20V X-RAY KIT 110V: CASE NO REMOTE CABLE (SOURCE, 2 - 20V Li-Ion BATTERIES, CHARGER, ADAPTER CABLE & CASE) 1111270
XR150 X-RAY SOURCE 12V 7PK 16 CHARACTER 1141100
XR150 12V X-RAY 110V KIT: NO CASE (SOURCE, 2 - 12V Li-Ion BATTERIES, 110V CHARGER) 1111110
XR150 12V X-RAY KIT 220V: NO CASE (SOURCE, 2 - 12V Li-Ion BATTERIES, 220V CHARGER) 1111120
XR150 12V X-RAY KIT 110V: CABLE & CASE (SOURCE, 2 - 12V Li-Ion BATTERIES, 110V CHARGER, CABLE & CASE) 1111130
XR150 12V X-RAY KIT 220V: CABLE & CASE (SOURCE, 2 - 12V Li-Ion BATTERIES, 220V CHARGER, CABLE & CASE) 1111140
XR150 12V X-RAY KIT: SOURCE, CABLE & CASE (NO BATTERIES OR CHARGER) 1111160
XR150 12V X-RAY KIT 110V: CASE NO REMOTE CABLE (SOURCE, 2 - 12V Li-Ion BATTERIES, CHARGER, ADAPTER CABLE & CASE) 1111165
Accessories & Spare Parts for XR150 X-Ray Sources

Item Description Part #
BATTERY DeWalt® 20V 2 Ah Li-Ion SLIDE ON 1800106
BATTERY DeWalt® 12V 3 Ah Li-Ion SLIDE-ON 1800105
BATTERY CHARGER DeWalt® 12V-20V SLIDE-ON 110V 1800151
BATTERY CHARGER DeWalt® 12V-20V SLIDE-ON 220V 1800164
REMOTE CABLE ASM 7PK (7 PIN K SERIES LEMO) 1809030
REMOTE CABLE ASM 5PK (5 PIN K SERIES LEMO) 1809022
REMOTE CABLE ASM 5PB (5 PIN B SERIES LEMO) 1809013
TRIPOD KIT XR150 1803041
XR150 SNAP ON LEAD COLLIMATOR CAP 20 DEGREE 1800251
XR150 SNAP ON LEAD COLLIMATOR CAP 30 DEGREE 1800252
XR150 SNAP ON LEAD COLLIMATOR CAP RECTANGLE 1800253
10 MIL SNAP ON COPPER FILTER (XR150, XR200, XRS3) 1800210
30 MIL SNAP ON COPPER FILTER (XR150, XR200, XRS3) 1800230
40 MIL SNAP ON COPPER FILTER (XR150, XR200, XRS3) 1800240
60 MIL SNAP ON COPPER FILTER (XR150, XR200, XRS3) 1800260
LEAD COLLIMATOR CAP SOLID (XR150, XR200, XRS3) 1800265
XR150 Collimator Set Snap-on Lead Caps & Copper Filters (7 pcs) 1800250
XR150 12V AND 16 DIG SOFTWARE CONVERSION 9901911
XR150 7.2V TO 12V 16C ELEC UPGRADE 7PIN K W/ ADAPTER CABLE 9901913
XR150 12V 5PIN K TO 7PIN K CONNECTOR W/ ADAPTER CABLE 9901998
