NDT Pocket Digital Pit Gauge

NDT Pocket Digital Pit Gauge

Pocket Digital Pit Gauge with 4 Different Base Options

Overview

The The NDT DPG Series Pocket Digital Pit Gauge is designed for accurate measurement of pits, gouges, dents, craters, undercuts, etc. of structures, pipe, concrete, and more for quick and accurate assessment of surface conditions. The gauge features 4 different bases that are bought as kits. They are as follows:

  • The DPG-P1 Kit includes the 0.49 or 1.50" (12.5 or 38mm) Reversable Base
  • The DPG-P2 Kit includes the 2.36" (60mm) Base
  • The DPG-P3 Kit includes the 4.92" (125mm) Base

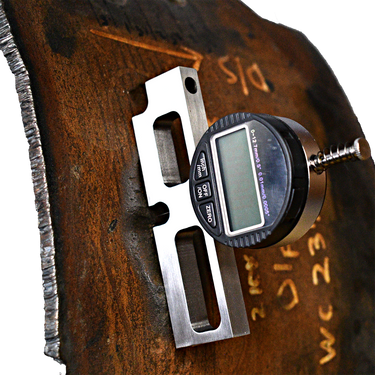

  • The DPG-P4 Kit includes the Reversible Base (12.5mm and 38mm), 60mm Base, 125mm Base, and 125mm Magnetic Base

Features

  • Hardened Stainless Steel Construction
  • Probe tip taper to 0.00039 inches (0.01mm) diameter for extremely small pits or cracks
  • Digital reader output
  • Streamlined, 3-button menu for easy switching between inch & mm units, on / off, and zeroing function
  • Accurate to 0.0001 inches (0.03mm)
  • Pocket Base can zero at any position
  • Each base is interchangeable

Bases

0.49 and 1.50"

(12.5 & 38mm)

2.36"

(60mm)

4.92"

(125mm)

Technical Specifications

Technical Specifications

Model:

DPG-P1

DPG-P2

DPG-P3 & DPG-P4
Base Length:

0.49 and 1.50"

(12.5 & 38mm)

2.36"

(60mm)

4.92"

(125mm)
Range:

0 - 0.5"

0 - 12.7mm
Resolution:

0.000039"

0.001mm
Accuracy:

0.00012"

0.003mm
Measuring Speed: ≤ 1.5 m/sec
Working Temperature:

32 - 104 °F

0 - 40 °C
Working Relative Humidity: ≤ 80%
Storage Temperature:

14 - 140 °F

-10-60 °C
Power: Button Battery 1.55 V

Kit Includes

  • DPG Unit with Chosen Base (P1, P2, P3, or P4)
  • One hex screw for base-fastening
  • 2 spare screw-on probe tips
  • Foam cutout carrying case

Product Literature

Description Part # Saved Price Select Option Add to
DPG-P1 Digital Pocket Pit Gauge with Reversible Base (12.5mm and 38mm) GA-NDTS-DPG-P1
$150.00
DPG-P2 Digital Pocket Pit Gauge with 60mm Base GA-NDTS-DPG-P2
$150.00
DPG-P3 Digital Pocket Pit Gauge with 125mm Base GA-NDTS-DPG-P3
$175.00
DPG-P4 Digital Pocket Pit Gauge with Reversible Base (12.5mm and 38mm), 60mm Base, 125mm Base, and 125mm Magnetic Base GA-NDTS-DPG-P4
$350.00
DPG-P Pocket Digital Pit Gauge Series Certification (pick Model)
Model #
GA-NDTS-DPG-P/A-CERT
$85.00
DPG-P Pocket Digital Pit Gauge Series Recertification (pick Model)
Model #
GA-NDTS-DPG-RECERT-1
$175.00
